USB Type B Female 4 Pin DIP PCB Socket

0 Orders 1 Wish listed

৳40

Qty

Total price:

৳40

Overview
Reviews

Detail Description

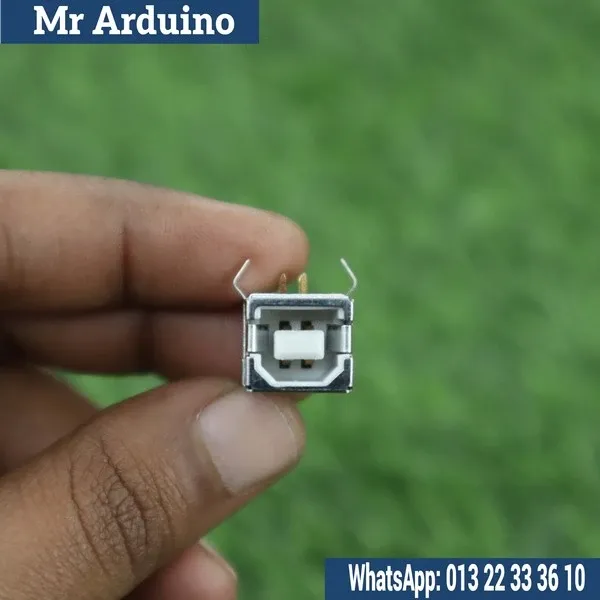

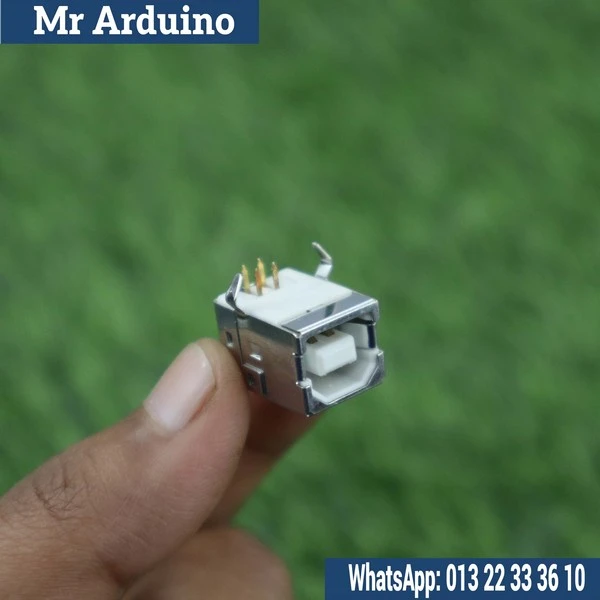

The USB Type B Female 4 Pin DIP PCB Socket is a reliable and widely used connector designed for mounting on printed circuit boards (PCBs). Commonly found in devices like Arduino boards, printers, and USB-powered tools, this socket allows a secure connection between USB Type B cables and electronic circuits. It features a through-hole (DIP) mounting style, making it easy to solder onto standard PCBs for long-lasting and firm connectivity.

How It Works:

This connector provides a female USB Type B interface with 4 pins — VBUS (Power), D-, D+ (Data lines), and GND. When a USB Type B male cable is plugged in, it delivers power and data signals through these pins to your PCB circuit. The DIP pins are inserted into holes on the PCB and soldered in place, ensuring electrical contact and mechanical stability.

Typical Use Cases:

Arduino and microcontroller boards
DIY USB-powered electronics
USB data communication circuits
Prototyping USB devices
Replacing damaged USB ports on existing hardware

Limitations:

Only supports USB 2.0 standard (not suitable for high-speed USB 3.0+)
Requires precise PCB layout for proper pin alignment
Not ideal for high-frequency plug-unplug cycles unless securely mounted
Bulkier than Micro or Mini USB, making it less ideal for compact projects
