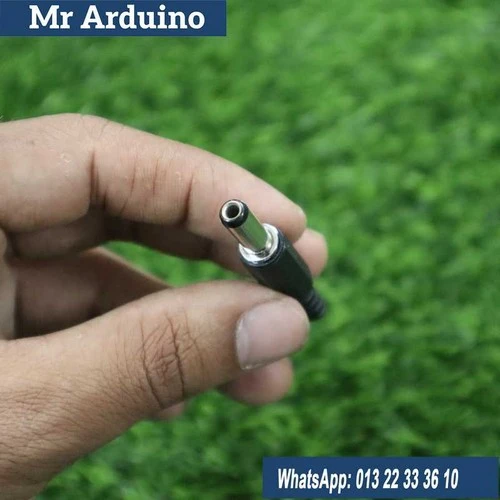

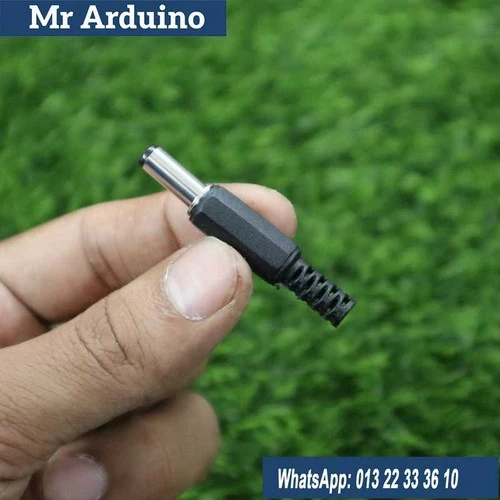

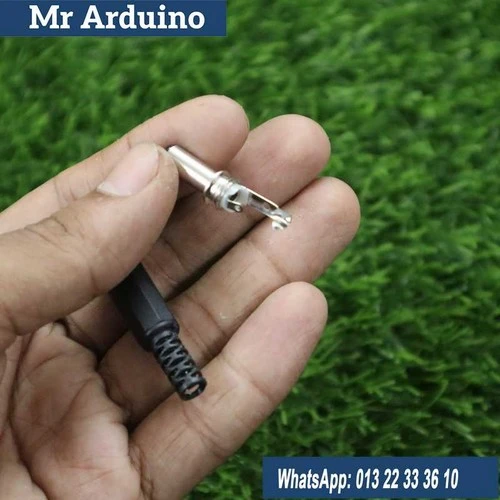

The DC Barrel Power Jack Male Connector 5.5mm is a widely used electrical connector designed to provide a secure and reliable way to transfer DC power from a power supply to electronic devices. This male connector features a 5.5mm outer diameter, which is a standard size in the industry for DC power connections. It is commonly used in low-voltage power systems, such as powering electronics, chargers, LED lights, and DIY projects.

How It Works:

1. Power Output: The male connector is typically attached to a DC power cable, which plugs into a female DC barrel jack (5.5mm outer diameter). This allows the transfer of electrical power from a power source (like an adapter or battery) to the device requiring power.
2. Connection: The male barrel plug fits snugly into the female jack, ensuring a secure connection. The connection allows current to flow from the power supply to the device being powered.
3. Polarity: The standard male barrel connector typically follows the polarity convention of a center-positive (+) pin and an outer-negative (-) sleeve. Ensure that the polarity matches the device’s requirements to avoid damage.
4. Power Delivery: Once plugged in, the male connector supplies the appropriate voltage and current from the power source to the device, ensuring that it operates correctly.

Features:

• Standard 5.5mm Size: This male connector uses the widely recognized 5.5mm outer diameter, which is compatible with a variety of devices, power supplies, and power cords in the market.
• Durable Build: Made with high-quality materials (usually metal for the central pin and plastic for the outer casing), the male connector is designed to provide a secure and lasting connection.
• Easy Installation: The connector is easy to install and is commonly used for creating custom power cables, repairs, and modifications in electronic systems.
• Wide Compatibility: It is compatible with a wide range of low-voltage DC-powered devices, such as routers, LED lights, small appliances, and many other consumer electronics.
• Stable Power Transfer: Provides a reliable and stable connection for consistent power delivery, ensuring optimal performance of connected devices.

Limitations:

• Polarity Sensitivity: It’s crucial to check that the polarity of the male connector matches the device or power supply’s specifications. Incorrect polarity may damage your device.
• Limited to DC Power: This connector is designed exclusively for DC (Direct Current) applications, meaning it cannot be used in AC (Alternating Current) circuits.
• Current Limitations: Depending on the construction and quality, some connectors may be limited in the amount of current they can handle. Ensure the male connector matches the power requirements of the device you are using.
• No Voltage Regulation: The connector itself doesn’t regulate voltage; it’s just a means to pass the power to the device. Ensure the voltage supplied by the power source is compatible with your device.

The DC Barrel Power Jack Male Connector 5.5mm is a key component for powering devices with DC power, offering durability, compatibility, and easy integration for a wide range of applications.
