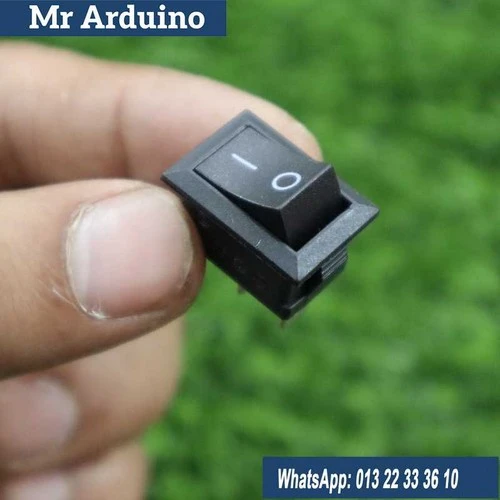

The Micro Rocker Switch KCD1-101 is a compact, durable switch commonly used for controlling electrical circuits in a variety of devices and applications. With a rated current of 6A and a voltage of 250V, this switch is designed for medium-power applications, typically found in household electronics, appliances, and DIY projects. The switch is a 3-pin model, making it easy to integrate into various circuits for on/off control. Its rocker mechanism allows for simple toggling between two states, making it user-friendly and reliable.

How It Works:

1. Rocker Mechanism: The switch operates by pressing on one side of the rocker, which shifts the internal contacts to either open (off) or close (on) the circuit. This toggling mechanism makes it easy to control the flow of electricity in the connected device.
2. Current Flow: When the switch is in the "on" position, it allows current to flow through the connected circuit. When switched to "off," it interrupts the flow of current, cutting off power to the device.

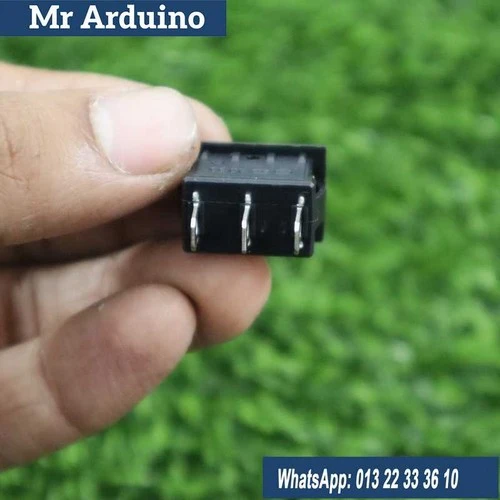

3. 3-Pin Configuration: The 3-pin design includes one common pin (for the power input) and two output pins (for connecting to the device being controlled). The switch can be used in either a single-pole, single-throw (SPST) or single-pole, double-throw (SPDT) configuration, depending on the circuit needs.
4. Voltage & Current Rating: Rated for 6A at 250V AC, this switch is suitable for controlling devices running on AC power with moderate current draw.

Features:

• Compact Design: The small size of the KCD1-101 allows for easy integration into a variety of devices without taking up too much space.
• Rated for 6A and 250V: This switch is designed to handle moderate power loads, making it perfect for a wide range of household and industrial applications.
• Rugged and Durable: Built with durable materials, this switch is designed to withstand frequent use and wear over time.
• Easy to Install: With its 3-pin configuration, this switch can be easily integrated into existing circuits with minimal wiring required.
• Visual Indicator: Often comes with a visual indicator (such as a red or green color) to show whether the switch is in the "on" or "off" position, providing easy status recognition.
• Versatile Application: Commonly used in power strips, small appliances, tools, and various DIY electronics projects where simple on/off control is needed.

Limitations:

• Limited Current Handling: The switch is rated for a maximum current of 6A. For circuits with higher current needs, a switch with a higher current rating should be used.
• AC Power Only: This switch is rated for AC circuits and may not be suitable for DC applications or circuits requiring more precise control.
• Mechanical Wear: As with all mechanical switches, the internal contacts can wear out over time if used excessively, potentially causing the switch to malfunction.

The Micro Rocker Switch KCD1-101 is an essential component for those who need a reliable, easy-to-use on/off switch for controlling medium-power devices in a wide variety of applications.
