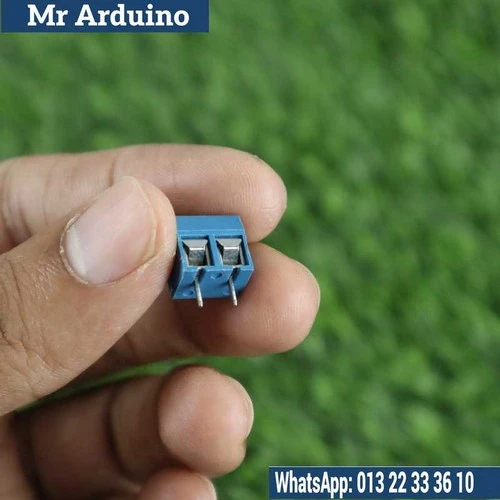

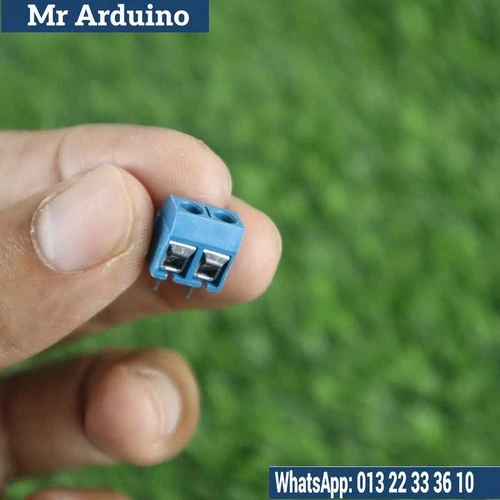

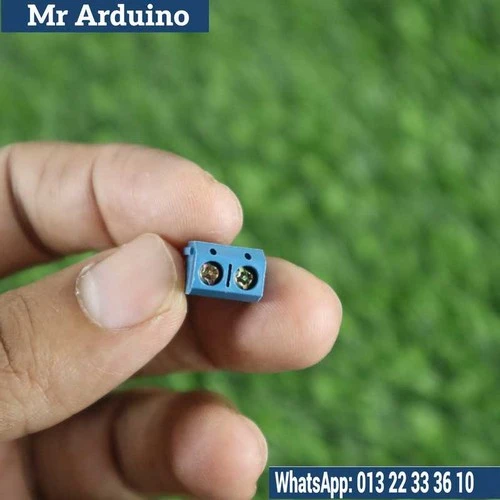

The 2 Pin Screw Terminal Block Blue Connector is a practical and reliable component used to establish secure and efficient electrical connections between external wires and a printed circuit board (PCB). This connector features 2 pins and a screw-type mechanism to ensure that the wires are tightly held in place, preventing loose connections. It is commonly used in low-voltage circuits for both power and signal transmission, making it ideal for a wide range of electronics projects and devices.

The blue color of the terminal block is often used for identification purposes, helping users quickly recognize it for general-purpose connections. The screw terminal design provides flexibility, making it suitable for both solid and stranded wires. Its compact form factor allows it to fit into space-constrained applications where secure and efficient wiring is required.

How It Works: The 2 Pin Screw Terminal Block Blue Connector operates by providing a simple, yet secure, way to connect external wiring to a PCB. Here's how it functions:

1. Wire Insertion: The stripped ends of the wire are inserted into the terminal block.
2. Screw Tightening: Once the wires are inserted, the screws are tightened to ensure a secure connection, keeping the wire firmly in place.
3. Soldering: The male pins of the terminal block are then soldered onto the PCB, creating a stable and permanent electrical connection between the external wires and the PCB.
4. Connection Establishment: The tight connection between the wires and the terminal block allows for an uninterrupted flow of power or signals to complete the circuit.

The screw-type mechanism ensures that the wire does not slip out, providing long-lasting reliability in a variety of applications.

Key Features:

• 2 Pin Configuration: The 2-pin configuration is perfect for simple power connections (V+ and V-) or for signal transmission in basic circuits.
• Screw Terminal Design: Provides a secure, stable connection for solid or stranded wires, ensuring that the wires remain firmly in place.
• Blue Color: The blue color is typically used for general-purpose connections and provides easy identification when integrated into various projects or circuits.
• Compact and Space-Saving: Its small form factor makes it perfect for use in applications where space is limited.
• Durable Construction: Made from high-quality flame-retardant plastic and metal contacts (usually brass or copper), the terminal block offers durability and reliability for long-term use.
• Easy Installation: Designed for through-hole mounting, this terminal block can be easily soldered onto a PCB for permanent and secure connections.

Specifications:

• Pin Configuration: 2 Pins (typically for power (V+) and ground (V-) or signal connections).
• Pin Pitch: Typically 5mm (standard pitch for many terminal blocks).
• Mounting Type: Through-hole mounting for easy soldering to a PCB.
• Wire Range: Suitable for 0.5mm² to 2.5mm² wire sizes.
• Max Voltage Rating: Rated for up to 300V, making it suitable for low to medium-voltage applications.
• Max Current Rating: Rated for up to 10A, which is ideal for low-to-medium current circuits.
• Material: Made with flame-retardant plastic housing (typically PA66) and metal terminals (usually brass or copper).
• Operating Temperature Range: Typically operates within -20°C to 85°C, ensuring its functionality in various environments.
• Dimensions: Typically around 18mm x 8mm x 10mm, depending on the manufacturer.
• Color: Blue for easy identification.
• Wire Termination: The terminal block accommodates solid or stranded wires with a screw connection for a secure fit.

Applications:

• Power Distribution: Can be used in power supplies, LED controllers, lighting systems, motors, and other low-to-medium power applications.
• DIY Electronics: Ideal for Arduino projects, Raspberry Pi circuits, sensor circuits, and electronics prototyping where secure connections are needed.
• Home Appliances: Frequently found in small household appliances, fans, heating systems, and lighting systems.
• Industrial Equipment: Suitable for use in control systems, automation circuits, and sensor connections.
• Prototyping and Test Equipment: Perfect for test fixtures, prototyping boards, or temporary connections in electronics development.
• Audio Equipment: Can be used for audio systems, including amplifiers and speakers, where simple connections are needed.
• Automotive Electronics: Can be used in vehicle electrical systems, telecommunication equipment, or audio systems for power or signal connections.

Limitations:

• Current Limitation: This terminal block is rated for up to 10A, so it may not be suitable for high-power applications that require higher current ratings.
• Voltage Limitation: Rated for 300V, making it unsuitable for use in high-voltage applications exceeding this rating.
• Pin Count Restriction: The terminal block only provides 2 pins, which may not be sufficient for more complex circuits that require additional connections.
• Soldering Requirement: The male side requires soldering to the PCB, so it's not suitable for surface-mount applications or quick-connect wiring solutions.
• Limited to Low Power Applications: Primarily designed for low-to-medium power circuits, this terminal block is not suited for high-power systems or heavy-duty electrical connections.

The 2 Pin Screw Terminal Block Blue Connector is a reliable, easy-to-install component for a variety of electrical circuits. Its screw terminal design ensures strong, stable connections, and the blue color provides easy identification within general-purpose applications. Whether you're working on DIY electronics, home appliances, lighting systems, or industrial control circuits, this terminal block offers a secure connection and space-efficient solution for your projects.
