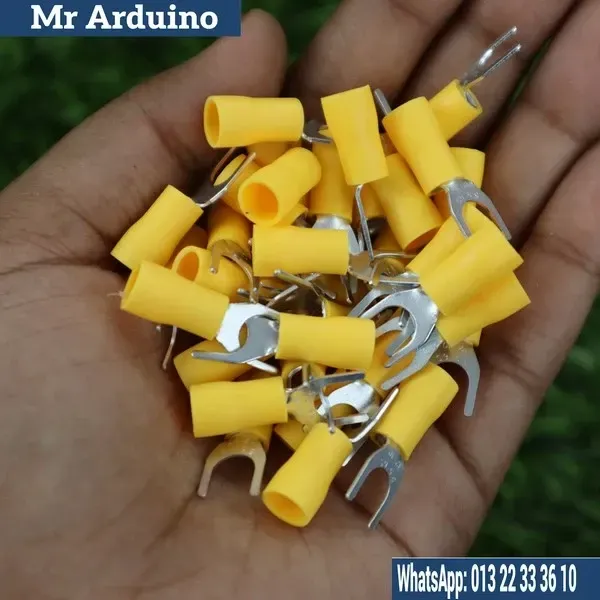

The U and V Tip 5-6 Insulator Terminal Connector Yellow is a high-quality electrical connector designed for securely joining wires in a wide range of electrical and electronic applications. The connector features a U or V-shaped tip that ensures a firm grip on wire strands, providing a reliable electrical connection. The yellow insulation indicates that it is designed for wires with a specific gauge size, typically ranging from 5mm to 6mm, making it perfect for medium-sized electrical connections.

Features:

• Insulation: Yellow insulation that indicates compatibility with wire gauges ranging from 5mm to 6mm (typically AWG 10-12).

• Tip Design: U and V-shaped tips designed for secure and reliable wire insertion, providing better conductivity and a tighter connection.

• Material: Made from durable, corrosion-resistant materials that ensure long-lasting performance and conductivity.

• Application: Ideal for connecting wires in automotive, electrical, industrial, and DIY electronic projects.

• Easy Installation: Simple to use, designed to create secure, insulated connections quickly and effectively.

• Safety: The insulator ensures that the terminal is protected from short circuits and minimizes the risk of electrical hazards.

How It Works:

The U and V Tip 5-6 Insulator Terminal Connector works by allowing a wire to be securely inserted into the connector’s tip. The metal part of the connector creates a firm grip on the wire, establishing a stable electrical connection. The yellow insulating cover protects the connection from external damage, moisture, and electrical short circuits:

1. Wire Insertion: Insert the stripped end of a wire into the U or V-shaped tip of the terminal.

2. Crimping: Using a crimping tool, crimp the connector around the wire to ensure a secure, stable connection. This action ensures proper contact between the wire and connector.

3. Insulation Protection: The yellow insulation surrounding the terminal helps prevent accidental contact with other conductive surfaces, minimizing the risk of short circuits or electrical hazards.

Product Limitations:

• Wire Size Compatibility: These connectors are specifically designed for 5-6mm wire gauges. Using connectors with wires of smaller or larger gauges can result in an unreliable or poor connection.

• Durability: While durable for typical electrical connections, connectors may wear out or degrade over time if exposed to extreme environmental conditions such as high temperatures, humidity, or mechanical stress.

• Crimping Tool Requirement: A crimping tool is required for proper installation. Using improper tools may result in weak or unstable connections.

Applications:

• Automotive Wiring: Used in automotive electrical systems for connections such as lighting, sensors, or control circuits.

• Industrial Applications: Ideal for use in factory setups, machinery wiring, or control systems requiring secure, insulated wire connections.

• DIY Electrical Projects: Perfect for hobbyists and DIY enthusiasts working on electronics, power supply systems, or small electronic devices.

• Home Electrical Installations: Suitable for use in residential electrical installations where secure, insulated wire connections are needed for safety and performance.

The U and V Tip 5-6 Insulator Terminal Connector Yellow is an essential component for ensuring secure, reliable, and insulated wire connections in a variety of electrical and electronic applications. Its yellow color denotes the appropriate wire size, while the sturdy U and V tip design ensures a solid and dependable connection every time.
