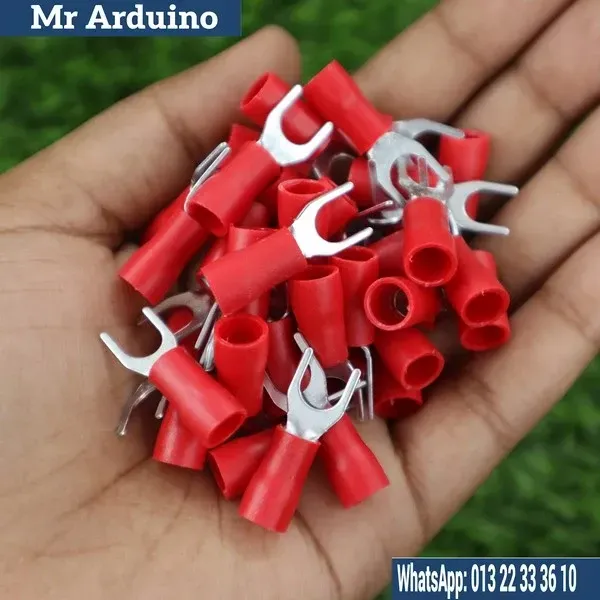

The U and V Tip 5-6 Insulator Terminal Connector Red is a high-quality electrical connector designed to securely connect wires in a wide variety of applications. This terminal connector features a U or V-shaped tip, ensuring a solid grip on the wire, providing excellent electrical conductivity and a stable connection. The red insulation indicates that this connector is intended for wires in the 5mm to 6mm range (typically AWG 12-10), making it perfect for medium-to-large-sized electrical connections.

Features:

• Insulation: Red-colored insulation, designed for wires in the 5mm to 6mm size range (typically AWG 10-12).

• Tip Design: U and V-shaped tips allow for a secure and reliable connection by providing a tight hold on the wire strands.

• Material: Constructed from durable materials to ensure long-lasting use and reliable electrical conductivity.

• Durability: The connector's robust design ensures reliable performance even in demanding environments.

• Ease of Use: Designed for quick and easy installation with the use of crimping tools.

• Safety: The red insulation provides electrical protection, minimizing the risk of shorts and electrical hazards by preventing accidental contact with other conductive surfaces.

How It Works:

The U and V Tip 5-6 Insulator Terminal Connector works by securely holding the stripped end of a wire in place, ensuring solid contact for electrical transmission. The U and V-shaped metal tips create a firm grip on the wire when crimped, and the red insulating cover prevents the terminal from coming into contact with other components, providing safety and reducing the risk of electrical shorts:

1. Wire Insertion: Insert the stripped wire end into the U or V-shaped terminal tip of the connector.

2. Crimping: Use a crimping tool to crimp the connector around the wire, ensuring that it is tightly secured and making a solid electrical connection.

3. Insulation: The red insulation around the terminal protects the connection from external damage and ensures electrical safety by reducing the risk of accidental shorts.

Product Limitations:

• Wire Gauge Compatibility: These connectors are designed for 5-6mm wire gauges (typically AWG 10-12). Using them with wires that are too large or too small may result in poor connections or instability.

• Durability: While designed for long-lasting use, connectors may degrade or become damaged under extreme environmental conditions, such as high temperatures or moisture.

• Crimping Tool Needed: Proper installation requires a crimping tool. If not applied with the correct force, the connection may be weak, resulting in poor electrical conductivity or failure.

Applications:

• Automotive Wiring: Perfect for use in automotive electrical systems, such as in lighting, sensors, or power distribution circuits.

• Industrial Use: Ideal for connecting wires in industrial machinery, control systems, and other electrical setups that require reliable, insulated connections.

• DIY Electrical Projects: Great for hobbyists working on electronics, power supplies, or small electrical projects.

• Home Electrical Systems: Suitable for residential electrical installations where safe and secure wire connections are needed for safety and reliability.

The U and V Tip 5-6 Insulator Terminal Connector Red is an essential component for ensuring secure, insulated wire connections in a variety of electrical and electronic applications. Its red insulation indicates compatibility with medium-sized wire gauges, while the U and V tip design guarantees a strong, stable connection for safe and reliable performance.
