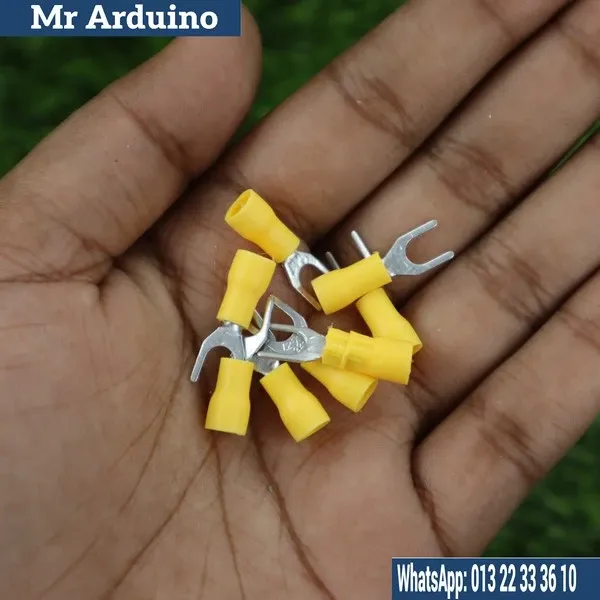

The U and V Tip 1.25-4 Insulator Terminal Connector Yellow is a reliable and durable electrical connector designed for secure and insulated connections. The U and V tips refer to the shape of the connector, which provides a versatile fit for male tab or spade terminals. This terminal connector is designed to be used with 1.25mm male terminals and features a 4mm insulation grip, ensuring a stable and reliable connection in electrical circuits.

The yellow insulation indicates compatibility with 12-10 AWG wire sizes, making this connector ideal for medium-duty applications in automotive, industrial, and residential wiring systems. The insulated design ensures safety by preventing accidental shorts and offering protection from moisture, dust, and other environmental factors.

How It Works:

The U and V Tip 1.25-4 Insulator Terminal Connector Yellow is used to create secure, insulated connections between wires and male spade or tab terminals. Here’s how it works:

1. Step 1: Start by stripping the insulation off the end of the wire to expose the copper conductor.

2. Step 2: Insert the exposed copper wire into the open end of the terminal connector.

3. Step 3: Use a crimping tool to securely fasten the wire inside the connector. This creates a strong mechanical bond between the wire and the connector.

4. Step 4: The U and V tips allow the terminal to be easily attached to male tab or spade terminals. Simply slide the connector onto the terminal, ensuring that it fits tightly for a secure connection.

5. Step 5: The yellow insulation around the terminal provides protection against accidental contact, preventing shorts and ensuring safety in electrical circuits.

Product Limitations:

• Size Compatibility: The 1.25-4 size is specifically designed for 1.25mm male terminals, so it may not be suitable for other terminal sizes. Ensure that the connector matches the male terminal size for a proper fit.

• Current Rating: These connectors are ideal for medium-duty applications, but if your circuit requires handling higher currents, a different connector with a higher current rating and thicker insulation may be needed.

• Environmental Resistance: While the insulation provides basic protection, it may not be fully resistant to extreme temperatures or harsh chemicals. For high-temperature or corrosive environments, consider using terminals with more robust insulation materials.

• Crimping Quality: To ensure a reliable connection, it’s essential to use a proper crimping tool. A poor-quality crimp can result in a loose or unreliable electrical connection.

The U and V Tip 1.25-4 Insulator Terminal Connector Yellow offers a simple, effective, and safe solution for creating secure and insulated electrical connections in various applications. It’s a great choice for medium-duty electrical tasks, offering ease of use, protection from environmental factors, and long-lasting performance.
