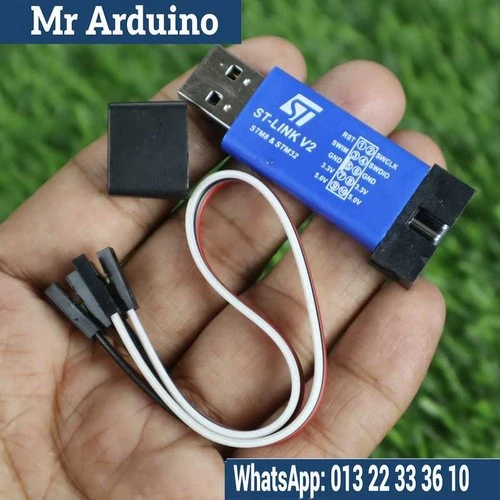

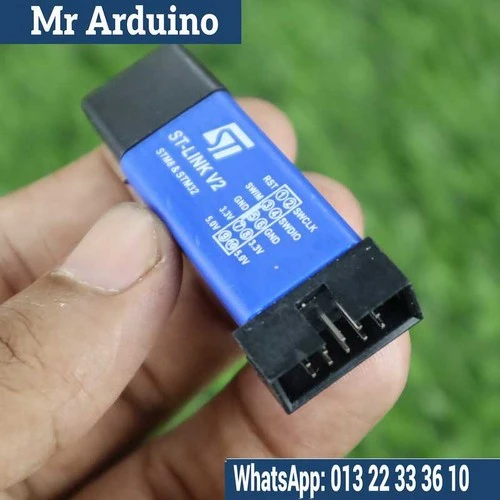

The ST-Link V2 is a debugger and programmer used for STM32 microcontroller development. It is a compact, low-cost device that allows developers to interface with STM32 microcontrollers for programming, debugging, and testing. The ST-Link V2 is an essential tool for anyone working with STM32-based systems, enabling the upload of firmware, debugging of embedded applications, and flashing memory directly on STM32 boards.

The device communicates with STM32 microcontrollers via the SWD (Serial Wire Debug) interface or JTAG, which are standard protocols for debugging microcontrollers. The ST-Link V2 is compatible with popular development environments such as Keil MDK, IAR Embedded Workbench, and OpenOCD.

How It Works: The ST-Link V2 operates by connecting to the STM32 microcontroller through the SWD or JTAG interface and allows the user to:

1. Programming: Upload programs to the microcontroller’s flash memory.
2. Debugging: Set breakpoints, step through code, and inspect variables in real time during the execution of the program to find and fix issues.
3. Flash Read/Write: Read and write data from/to the memory of the target STM32 microcontroller.
4. Erase Memory: Erase the contents of the flash memory on the microcontroller, allowing for fresh programming.
5. Peripheral Access: Some versions of the ST-Link V2 offer the ability to access and control peripheral devices, which helps in hardware-level debugging.

The ST-Link V2 connects to the development computer through a USB interface and provides a stable link between the development environment (like STM32CubeIDE or other IDEs) and the microcontroller.

Key Features:

• Debugging Support: Full debugging support for STM32 microcontrollers, including stepping through code, setting breakpoints, and examining memory and register states.

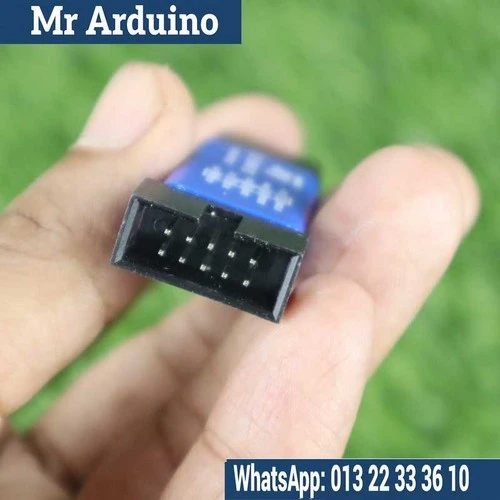

• Programming: Upload code directly to STM32 microcontrollers via SWD (Serial Wire Debug) or JTAG.
• Compatibility with STM32CubeIDE: Fully supported by STM32CubeIDE, making it easy to use with STMicroelectronics' integrated development environment.
• Software Tools Support: Works with various third-party software tools such as Keil MDK, IAR Embedded Workbench, and OpenOCD.

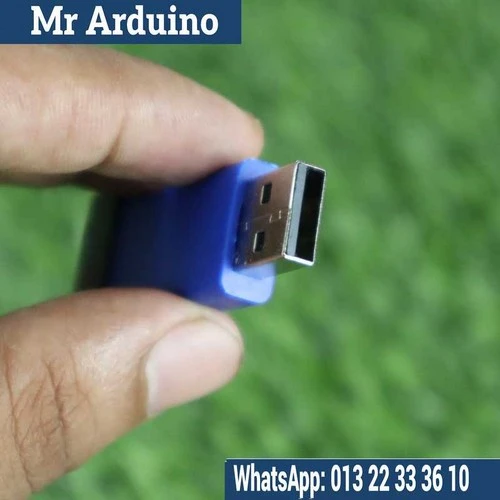

• USB Interface: Uses a USB interface for communication, allowing easy connection to a PC for programming and debugging.
• Compact and Portable: Lightweight and small in size, making it highly portable for developers on the go.
• Firmware Upgradeable: Firmware can be upgraded via the ST-Link Utility, allowing the device to stay up-to-date with new features and fixes.
• Multiple Target Support: It can be used with various STM32 microcontroller families (e.g., STM32F0, STM32F4, STM32L4), making it versatile for different projects.

Specifications:

• Interface: USB 2.0 (for communication with a PC) and SWD/JTAG (for programming and debugging STM32 microcontrollers).
• Supported Microcontrollers: Supports most STM32 microcontrollers (e.g., STM32F0, STM32F1, STM32F4, STM32L4).
• Voltage Range: Typically operates within a voltage range of 1.8V to 3.6V for the target microcontroller.
• Programming Speed: Up to 4000 kbps for programming and debugging operations.
• Firmware Upgrades: Can be upgraded through ST-Link Utility or other STM32 software tools.
• Power Supply: Powered by USB from the host computer.
• Dimensions: Typically around 4.5 cm x 2.5 cm, compact and portable.
• Operating Temperature Range: Typically -40°C to 85°C, suitable for most development environments.
• Software Support: Compatible with STM32CubeIDE, Keil MDK, IAR Embedded Workbench, OpenOCD, and other embedded development tools.

Applications:

• Embedded Development: Ideal for developers working with STM32 microcontrollers in embedded systems, including IoT devices, robotics, automotive systems, and more.
• Firmware Development: Used to program firmware directly onto STM32 microcontrollers and test it during development.
• Hardware Debugging: Excellent tool for debugging complex embedded systems, setting breakpoints, inspecting memory/registers, and tracking issues in real time.
• Rapid Prototyping: Essential in prototyping applications where fast and efficient debugging and programming of STM32-based hardware are necessary.
• Educational Projects: Commonly used in educational settings for learning and experimenting with embedded systems, especially with STM32-based development kits and boards.

Limitations:

• STM32 Specific: The ST-Link V2 is designed specifically for STM32 microcontrollers, so it cannot be used for programming or debugging other types of microcontrollers (e.g., AVR or PIC).
• JTAG Debugging Limitation: While SWD is widely supported, some older STM32 microcontrollers may require a JTAG connection, limiting its use on older devices.
• PC Requirement: Requires a computer to interface with, which may not be ideal for standalone or field-based applications.
• Target Voltage Limitation: The voltage supplied to the target microcontroller must fall within the supported voltage range, typically 1.8V to 3.6V, which might be restrictive for certain configurations.

The ST-Link V2 is a powerful and essential tool for anyone working with STM32 microcontrollers. Whether you're developing a new embedded system, debugging firmware, or performing hardware-level testing, the ST-Link V2 offers the necessary features to streamline the development process. Its high compatibility, ease of use, and comprehensive debugging and programming support make it a go-to device for STM32 development.
