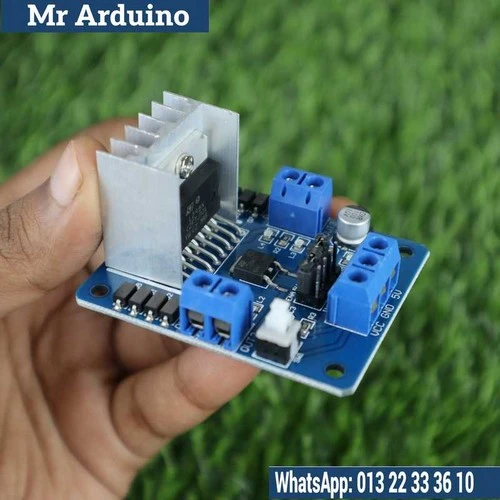

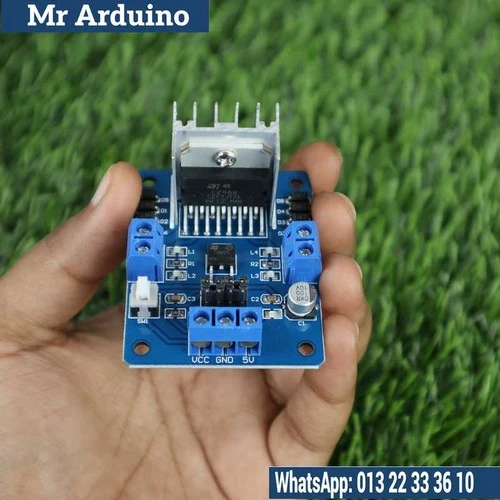

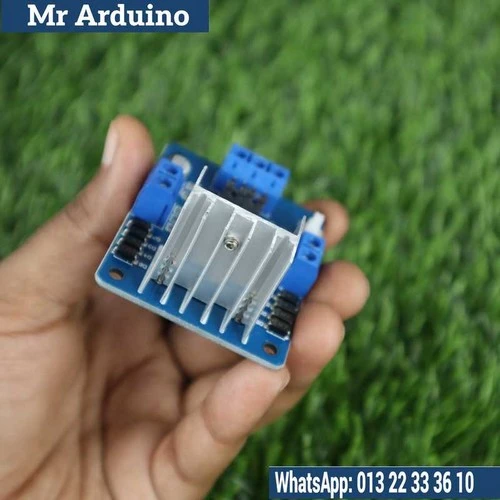

L298N H-Bridge Dual Motor Driver Blue

2 Orders 2 Wish listed

৳199

Qty

Total price:

৳199

Overview
Reviews

Detail Description

The L298N H-Bridge Dual Motor Driver is a versatile and efficient module designed for controlling the speed and direction of two DC motors or a single stepper motor. Its robust design and compatibility with various microcontrollers make it a popular choice for robotics and automation projects.

Key Features:

Dual H-Bridge Configuration: Allows independent control of two DC motors, enabling forward, backward, and braking operations.
Voltage and Current Ratings: Supports motor supply voltages from 5V to 35V and can handle up to 2A per channel, accommodating a wide range of motors.
Thermal Shutdown and Overcurrent Protection: Equipped with built-in thermal shutdown and overload protection to safeguard the module and connected motors.
Logic Voltage Compatibility: Compatible with 5V and 3.3V logic levels, making it suitable for various microcontrollers, including Arduino and Raspberry Pi.

Specifications:

Operating Voltage: 5V to 35V DC
Current Capacity: Up to 2A per channel
Control Inputs: Four logic-level inputs for motor control
Enable Pins: Two enable pins to activate or deactivate each motor channel
Protection Features: Thermal shutdown and overload protection

Applications:

Robotics: Ideal for controlling the movement of robots, allowing precise speed and direction control.
Automated Systems: Suitable for applications requiring motor control, such as conveyor belts and automated doors.
DIY Projects: Perfect for hobbyists and makers building motor-driven projects.
