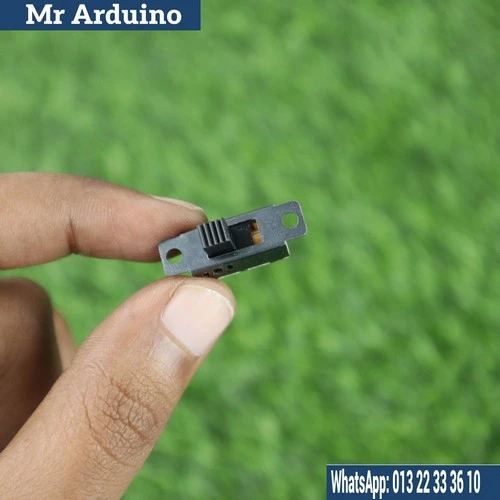

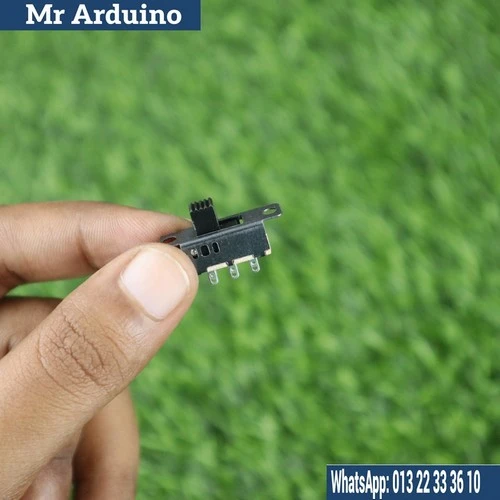

Slide Switch 3 Position

5 Orders 2 Wish listed

৳10

Qty
Total price:
  ৳10

Detail Description

A DPDT (Double Pole Double Throw) slide switch is a versatile switch used in various electrical applications to control two separate circuits or change the path of current flow. Here’s a detailed overview:

Key Features:

  • Configuration:

    • Double Pole: Controls two circuits simultaneously.
    • Double Throw: Each pole has two positions (ON/ON), allowing for two output paths.

  • Operation:

    • The switch can be toggled between two ON positions, providing flexibility in how circuits are connected or powered.

  • Slide Mechanism:

    • The switch operates via a sliding action, making it easy to engage and disengage.

Applications:

  • Electronics Projects: Commonly used in DIY electronics for switching between different modes or functions.
  • Audio Equipment: Useful for selecting input sources or changing speaker configurations.
  • Robotics: Often found in robot controls to switch between different operational modes.
  • Home Automation: Can be used in custom lighting or automation projects to control multiple circuits.

Wiring Diagram:

  1. Terminals: Typically, a DPDT switch will have six terminals (two for each pole).

    • When in one position, the first pair of terminals connects to the first circuit.
    • When in the other position, it connects to the second circuit.

  2. Connections:

    • Connect the common terminals to your power source or load.
    • Connect the output terminals to your desired circuits.

Tips for Use:

  • Choose Appropriate Ratings: Ensure the switch is rated for the voltage and current levels of your application.
  • Secure Connections: Use proper soldering or terminal connections to ensure reliability and prevent intermittent contact.
  • Test Functionality: After wiring, test the switch to confirm it operates as intended.
