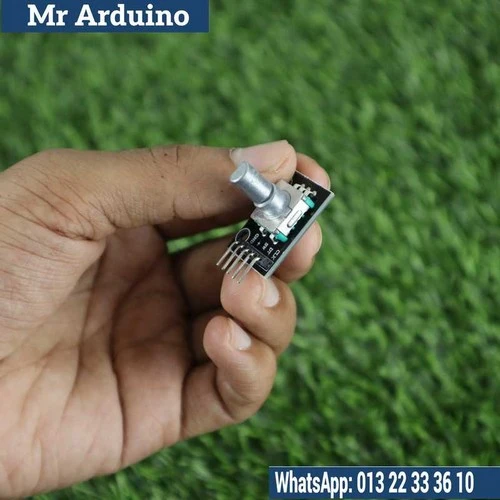

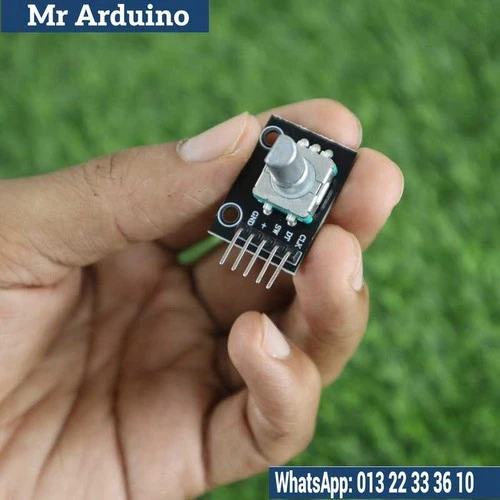

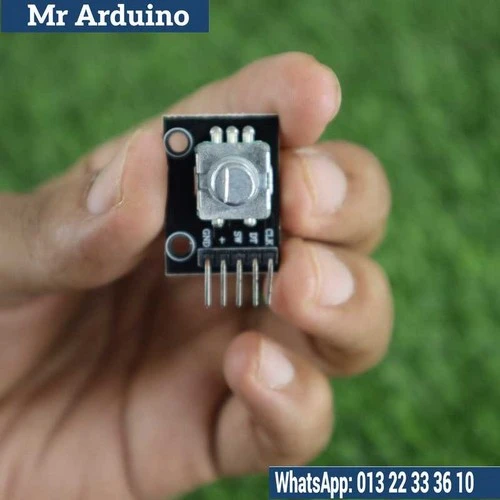

The Rotary Encoder Module is an electromechanical device used to detect the rotational position of a shaft or axle. It converts the rotational movement into an electrical signal, which can then be interpreted by a microcontroller or processor. Commonly used in applications where precise rotational position or incremental movement is required, rotary encoders are ideal for projects like motor control, volume adjustment, or robotic arm control. This module is a great addition to projects that require feedback for position, direction, or rotation speed.

Key Features:

• Incremental and Absolute Positioning: The module can detect both the direction and number of rotations, providing feedback on the angle or position of the shaft.

• Compact Size: The module is small and lightweight, making it easy to integrate into your projects without taking up much space.

• Easy Interface: Communicates with microcontrollers using simple digital signals (typically two output channels: A and B), allowing for easy integration with platforms like Arduino and Raspberry Pi.

• High Resolution: Many rotary encoder modules offer high-resolution detection, providing fine-grained position or speed measurements.

• Durable Design: Often built with mechanical components that are robust and reliable for long-term use in various applications.

• Simple Wiring: It can be connected to the microcontroller via only a few pins (VCC, GND, and the signal outputs), making it an easy-to-use option for many DIY or professional projects.

How it Works:

1. Rotational Detection: When the shaft of the rotary encoder is rotated, the encoder detects the movement and produces electrical pulses corresponding to the rotation. These pulses are typically in the form of two square waves (channels A and B) that are out of phase with each other.

2. Signal Interpretation: The microcontroller reads the pulses from the encoder and calculates the direction and amount of rotation based on the sequence of pulses it receives. By counting the number of pulses, the microcontroller can track how far the shaft has rotated.

3. Direction Detection: The phase difference between the A and B signals is used to determine the direction of rotation. If channel A leads channel B, the rotation is clockwise; if channel B leads channel A, the rotation is counterclockwise.

4. Speed Measurement: The frequency of the pulses can be used to calculate the speed of rotation, providing real-time feedback on the shaft’s speed.

Applications:

• Motor Control Systems: Rotary encoders are widely used in robotics and motor control applications to provide feedback for precise control of motor movements, such as in CNC machines or robotic arms.

• Volume and Tuning Controls: Used in audio devices, musical instruments, or other equipment requiring smooth volume or tuning adjustments. The encoder can replace traditional potentiometers.

• Position Sensing: Perfect for applications requiring the measurement of rotational position or angle, such as camera mounts, conveyor systems, or automated systems with moving parts.

• Feedback in Robotics: Used in robot wheels or joints to ensure accurate position control and movement feedback.

• DIY Projects: Commonly used by hobbyists and makers in various DIY electronics projects to track movement and position.

Limitations:

• Limited Distance Measurement: Rotary encoders measure rotational movement but don’t directly measure absolute position unless coupled with a specific reference or a special type of encoder (e.g., absolute encoders).

• Signal Interference: The signal from the encoder can sometimes be affected by noise or mechanical errors, which may require additional filtering or signal processing to ensure accuracy.

• Mechanical Wear: Depending on the quality of the encoder, the mechanical parts may wear over time, especially in high-usage environments, which could affect performance.

The Rotary Encoder Module is an excellent tool for adding precise rotational sensing and feedback to your projects. Whether you need to track the position of a rotating element, control motor speed, or measure the angle of a moving part, the rotary encoder is a reliable and versatile component for all your movement tracking needs.
