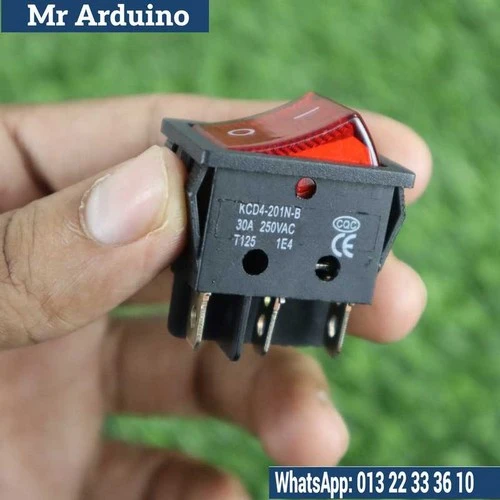

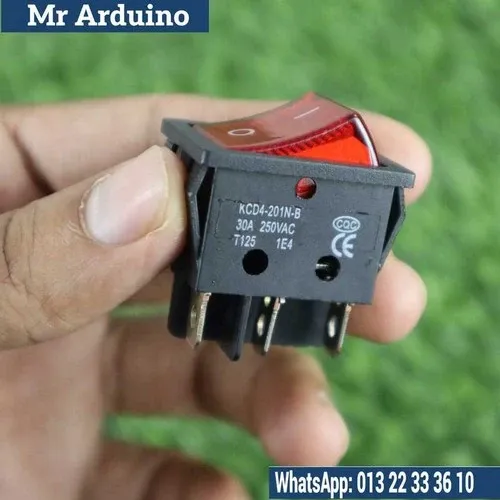

The Rocker Switch DPDT KCD4 201N-B 30A 250V 6 Pin With Indicator is a high-power, heavy-duty DPDT rocker switch designed for applications requiring control of multiple circuits with high current and voltage ratings. With a 30A rating at 250V, this switch is suitable for high-power applications such as industrial equipment, automotive systems, marine applications, and HVAC control systems. This switch also features a built-in indicator light, which provides a clear visual cue to show whether the switch is in the ON or OFF position, offering both functional and aesthetic benefits.

The 6-pin configuration allows for more flexibility in wiring and provides the ability to control two different circuits or devices with the same switch. The DPDT (Double Pole Double Throw) design enables the switch to manage two separate electrical circuits, making it ideal for dual-function applications, where switching between multiple power sources or controlling multiple devices simultaneously is required.

Key Features:

• 30A 250V Rating: This switch can handle up to 30 amps of current at 250 volts, making it suitable for high-power circuits such as motors, lighting, large appliances, HVAC systems, and automotive power systems.
• 6 Pin Configuration: The 6-pin design provides flexibility in wiring, enabling control over multiple circuits or allowing complex switching setups. It is ideal for switching two different power sources or activating two circuits at once.
• DPDT (Double Pole Double Throw): The DPDT configuration enables the switch to control two independent circuits. Each position of the switch can connect or disconnect the two different circuits, providing greater versatility.

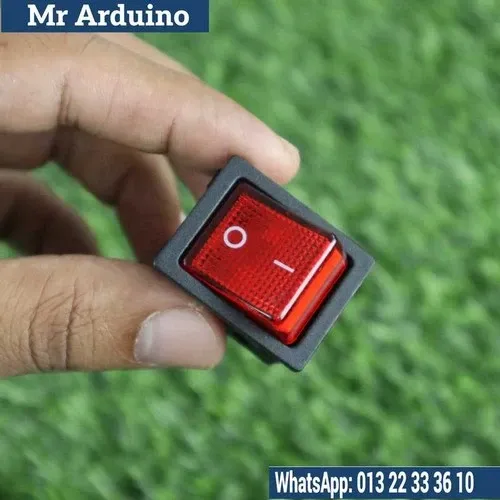

• Built-in Indicator Light: The built-in indicator light offers a visual indication of the switch's status. The light turns on when the switch is in the ON position and off when the switch is in the OFF position, providing users with a clear, easy-to-see status update.
• Rugged and Durable: Designed for heavy-duty use, this switch is built to withstand frequent operation and harsh environments. Its robust construction makes it ideal for use in automotive, marine, and industrial settings.
• Easy to Operate: The rocker switch design allows for easy toggling between positions. Its tactile feedback provides assurance when the switch has been activated, making it simple and intuitive to use.

How It Works:

1. DPDT Mechanism: The DPDT (Double Pole Double Throw) design allows the switch to control two circuits simultaneously. It connects or disconnects two sets of pins in each of the two switch positions.

   • Position 1 (ON): When the switch is in the ON position, the two poles connect the appropriate input and output terminals for each circuit, allowing current to flow through.
   • Position 2 (OFF or Alternate): In the alternate or OFF position, the switch redirects or disconnects the flow of current in the circuits.

2. Indicator Light: The built-in indicator light lights up when the switch is in the ON position, providing visual feedback to the user. This makes it easier to see the switch’s status, especially in environments where visibility might be limited or where multiple switches are used.

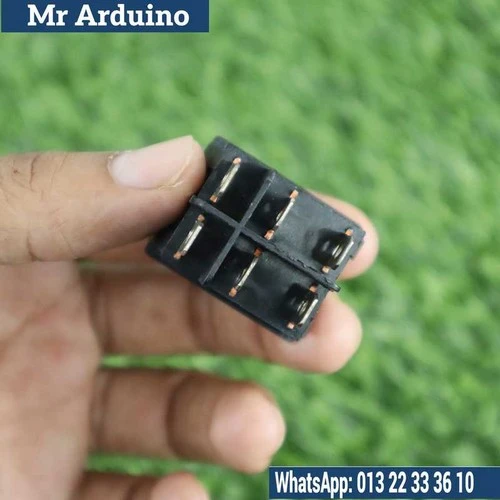

3. Wiring the Switch: The 6 pins are typically arranged in two groups of three for each pole. The three pins on one side control one circuit, and the three pins on the other side control the second circuit. The wiring setup allows for complex switching between different power sources, devices, or functions.

   • Pin 1: Common input terminal (often connected to the power source).
   • Pin 2 and 3: Output terminals for the first circuit.
   • Pin 4: Ground or return pin.
   • Pin 5 and 6: Output terminals for the second circuit or additional connections.

4. User Experience: The rocker switch is easy to toggle between ON and OFF, with a clear tactile feedback so users know when the switch has been activated. The indicator light enhances the user experience by providing clear, visual feedback.

Limitations:

• Current and Voltage Limitation: While the switch can handle 30A at 250V, it is important not to exceed the current and voltage ratings to avoid overheating or damage to the switch or circuit.
• Size: Due to its high current rating and 6-pin configuration, this switch may be larger than typical low-power switches, so space considerations should be taken into account during installation.
• Wiring Complexity: The 6-pin configuration provides greater flexibility but may require more careful wiring and planning. Users may need to consult wiring diagrams to ensure proper connections.

The Rocker Switch DPDT KCD4 201N-B 30A 250V 6 Pin With Indicator is an excellent solution for high-power applications that require control over multiple circuits. Its DPDT design, combined with the 30A current rating and the built-in indicator light, makes it ideal for industrial, automotive, and marine environments where reliable and durable switches are necessary. Whether you're working on motor control, lighting systems, or HVAC systems, this switch offers versatility, durability, and visual feedback to enhance user control.
