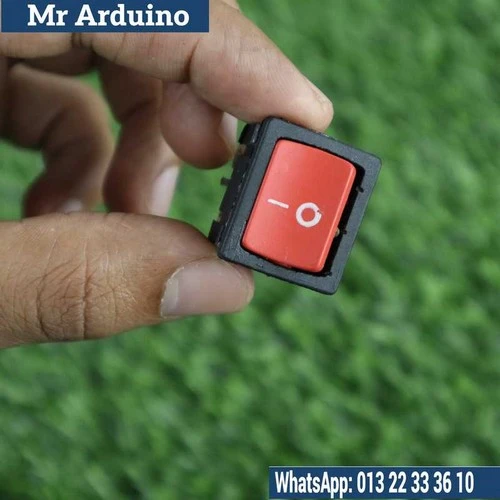

The Rocker Switch 30A 250V 6 Pin Without Indicator is a heavy-duty 6-pin rocker switch designed for high-power applications. With a current rating of 30A at 250V, this switch is ideal for controlling large electrical loads and can be used in various industries and projects requiring reliable and robust switching mechanisms. This switch operates in a simple rocker design, offering easy operation to turn equipment or circuits on and off. Unlike switches with indicator lights, this version is without an indicator, making it more straightforward for installations where an external indicator is not necessary.

This 6-pin configuration allows for multiple connection options, enabling the switch to control multiple circuits or devices simultaneously. It is commonly used in automotive applications, power systems, high-voltage equipment, industrial machinery, and other systems where high current handling and reliable operation are essential.

Key Features:

• 30A 250V Rating: The switch is capable of handling up to 30 amps of current at 250 volts, making it suitable for high-power applications such as motors, lighting systems, power distribution, or heavy machinery.
• 6 Pin Configuration: The switch has a 6-pin layout, providing flexibility for wiring two independent circuits or multiple configurations, offering control over two different devices or systems.
• No Indicator Light: This switch does not come with a built-in indicator light, which may be preferred in applications where an external indicator or visual cue is unnecessary.
• Rugged Design: Built with durability in mind, the heavy-duty construction ensures it will handle long-term use and resist wear and tear, even in harsh environments.
• Easy to Operate: The rocker switch design is simple and intuitive, allowing for quick toggling between ON and OFF positions with minimal effort.
• Versatile Applications: This switch is highly versatile and can be used in various applications, such as automotive, marine, HVAC systems, lighting control, power tools, appliance control, and more.

How It Works: The Rocker Switch 30A 250V 6 Pin Without Indicator operates by toggling between two positions: ON and OFF. It connects and disconnects electrical circuits when the rocker is pressed, allowing or interrupting the flow of current.

1. Rocker Action: When the switch is in the ON position, the internal contacts are closed, and electricity flows through the circuit. When the switch is in the OFF position, the contacts open, interrupting the current flow.

2. 6 Pin Configuration:

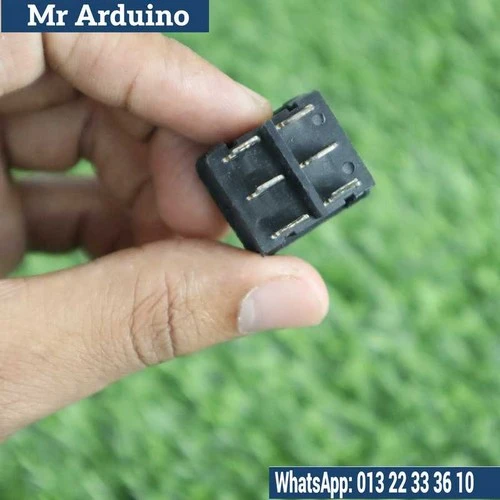

   • The switch has 6 pins, typically arranged in two sets of three for controlling multiple circuits or systems. It may connect two devices or circuits simultaneously, with each set of three pins corresponding to one of the circuits.
   • This setup allows the user to control two independent circuits or control multiple features of a device with a single switch, such as ON/OFF for separate components.

3. High Power Handling: Designed for 30A at 250V, this switch is capable of switching large loads like motors, lighting arrays, and heating elements, ensuring reliable operation in demanding environments.

4. No Indicator: The absence of an indicator light means this switch is more suitable for installations where visual feedback is either provided externally or unnecessary. In these cases, external LED indicators or other status lights may be used.

Limitations:

• No Indicator Light: Since this switch does not have a built-in indicator, it requires external monitoring or status lights to show whether the circuit is on or off.
• Size: Due to the high current rating, this switch may be bulkier than lower-rated switches, and space limitations may need to be considered in the design or application.
• High Power Limitation: The switch’s high current handling makes it suitable for heavy-duty applications, but it is not ideal for low-power or sensitive circuits, as it could overload components that are not designed to handle this level of current.

The Rocker Switch 30A 250V 6 Pin Without Indicator is an excellent choice for controlling high-power circuits where simplicity and durability are key. It offers flexible wiring options with its 6-pin design, making it perfect for multi-circuit applications. Its heavy-duty rating of 30A at 250V makes it ideal for industrial, automotive, and large-scale electrical systems that require reliable and robust switching capabilities.
