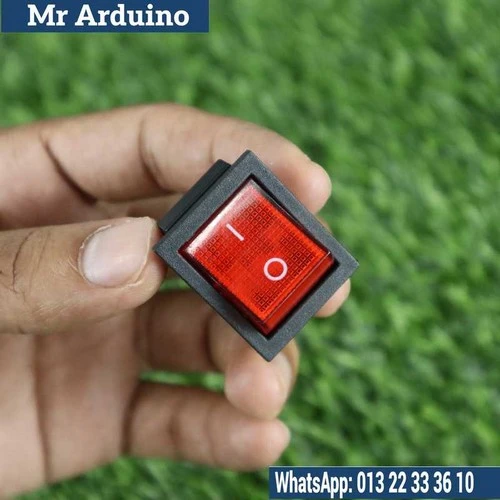

The Rocker Switch DPDT KCD4 16A 250V 4 Pin With Indicator is a reliable and durable Double Pole Double Throw (DPDT) rocker switch designed for controlling electrical circuits in a variety of applications, including industrial systems, home appliances, and automotive electronics. With a 16A current rating at 250V, this switch is suitable for medium-power applications where flexibility, control, and visual feedback are required.

The DPDT configuration allows the switch to control two separate circuits simultaneously, offering more versatility compared to single-pole switches. It also features a built-in indicator light, which provides a clear visual cue indicating the status of the switch (on or off), making it ideal for use in systems where feedback is needed to confirm the switch's operation.

Key Features:

• DPDT (Double Pole Double Throw): The DPDT configuration allows the switch to control two separate circuits simultaneously. Each position of the switch connects two different inputs and outputs, making it ideal for controlling multiple devices or switching between different power sources.
• 16A 250V Rating: This switch can handle up to 16 amps of current at 250 volts, making it suitable for medium-power applications like lighting, motors, HVAC systems, and more.
• 4 Pin Configuration: The 4-pin design enables easy wiring and flexibility for connecting two separate circuits or configurations. It allows the switch to perform multiple functions or control more complex systems.
• Built-in Indicator Light: The indicator light provides clear feedback, turning on when the switch is in the ON position, allowing the user to easily determine whether the switch has been activated. This is particularly useful in environments where visibility is critical.
• Rugged and Durable: Constructed with high-quality materials, this switch is designed for long-lasting durability, making it ideal for use in heavy-duty environments where frequent switching is required.
• Versatile Applications: Ideal for a range of applications, including automotive, industrial machinery, lighting control, power tools, DIY projects, and home appliances.

How It Works:

1. DPDT Mechanism: The DPDT switch has two poles, allowing it to control two separate circuits. Each of the two switch positions either connects one circuit or the other, allowing users to toggle between two different inputs or outputs.

   • Position 1 (ON): In this position, the internal contacts connect one set of two pins, activating the corresponding circuit.
   • Position 2 (OFF or Alternate): The contacts move to a different set of pins, cutting off the flow of current or activating an alternate circuit.

2. Indicator Light: The built-in indicator light turns on when the switch is in the ON position, providing a visual status indicator to the user. The indicator typically gets its power from the connected circuit, ensuring it works only when the switch is in the active state.

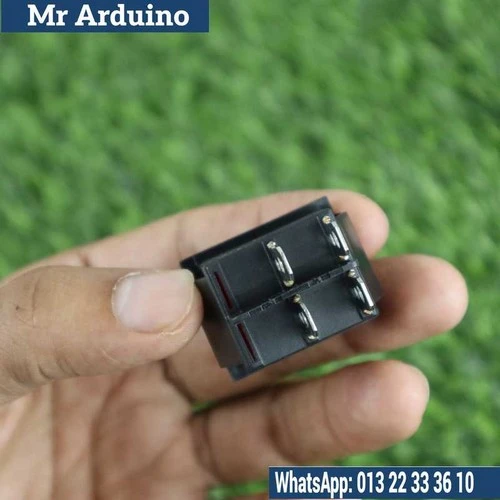

3. Wiring: The 4 pins are typically arranged as follows:

   • Pin 1: Common (input for power or signal).
   • Pin 2 & 3: Outputs for the two circuits.
   • Pin 4: Ground or power return, completing the electrical circuit.

4. User Interaction: The rocker switch allows users to toggle between the two circuits with ease. The tactile feedback lets users feel the switch’s position, and the indicator light provides a visual confirmation.

Limitations:

• Limited to 16A: While the switch is rated for 16A at 250V, it is not suitable for high-power applications that require more current. Exceeding this rating may cause overheating or failure.
• Space Consideration: The DPDT switch with indicator may be larger than simpler switches, so make sure there’s adequate space in your project for installation.
• Wiring Complexity: The 4-pin configuration provides flexibility but may require more complex wiring than a simpler single-pole switch, so it is essential to ensure proper connections.

The Rocker Switch DPDT KCD4 16A 250V 4 Pin With Indicator is a versatile and durable switch for medium-power applications, offering control over multiple circuits while providing clear visual feedback through its indicator light. It is ideal for use in automotive, industrial, and home appliance projects, as well as DIY electronics where precise switching and status indication are important.
