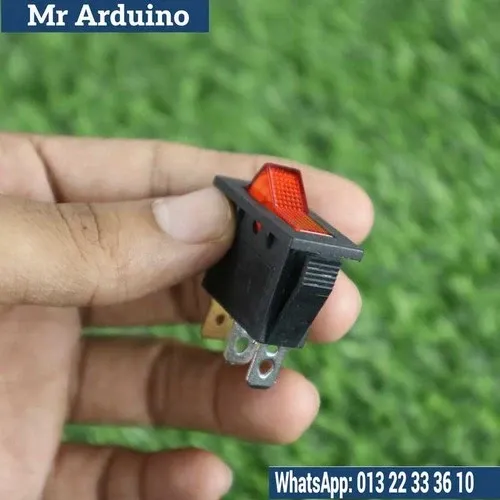

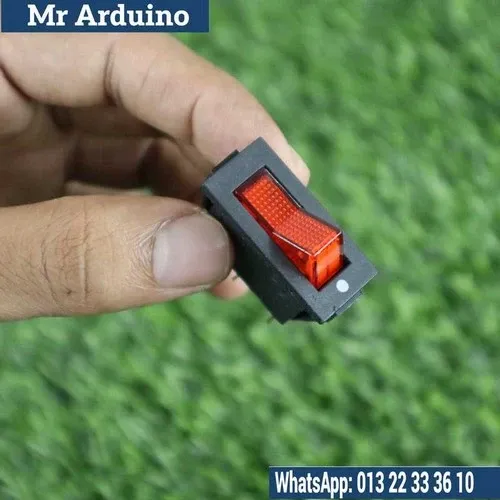

The Rocker Switch DPDT KCD3 15A 250V 3 Pin With Indicator is a high-quality Double Pole Double Throw (DPDT) rocker switch designed for controlling higher voltage or current devices, commonly found in electrical circuits, home appliances, and industrial equipment. This switch has a 15A rating at 250V, making it suitable for both low and medium-power applications. It features a built-in indicator light, which gives a clear visual cue to show whether the switch is in the on or off position.

The DPDT configuration allows the switch to control two separate circuits with two positions for each, giving it more versatility compared to a single-pole switch. The switch’s rocker design makes it easy to operate with a simple push, making it user-friendly and ideal for control panels, power strips, and other devices requiring a reliable switching mechanism.

Key Features:

• DPDT (Double Pole Double Throw): This configuration allows the switch to control two separate circuits. Each position of the switch connects two different inputs and outputs, providing flexibility in applications like reversing polarity, switching between different power sources, or controlling multiple devices with a single switch.
• 15A 250V Rating: The switch can handle up to 15 amps of current at 250 volts, making it suitable for medium-power applications, such as lighting systems, small motors, and other electrical equipment.
• 3 Pin Configuration: The switch features a simple 3-pin design, with two pins for switching the two circuits and one pin for connecting to the ground or power.
• Built-in Indicator Light: The indicator light allows users to easily determine the status of the switch, indicating when the switch is in the ON or OFF position. This is especially useful in low-light conditions or control panels where visibility is important.
• Durable and Reliable: The KCD3 series is known for its robust construction, designed to withstand repeated use. Its resistant design makes it durable enough to handle high-frequency switching without degradation over time.
• Easy to Operate: The rocker-style switch is simple to operate, providing a comfortable feel when toggling between the on and off positions.
• Versatile Applications: Ideal for use in home appliances, audio equipment, lighting control, automotive, industrial machinery, and any project requiring a reliable, high-current switching solution.

How It Works: The Rocker Switch DPDT KCD3 15A 250V 3 Pin With Indicator works by toggling between two positions, each controlling different circuits. Here’s a simple overview of how it functions:

1. Switch Positions:

   • The switch has two positions: ON and OFF.
   • In each position, the switch either connects or disconnects the two input/output circuits.

2. DPDT Mechanism:

   • The DPDT switch has two poles, which means it can control two separate circuits.
   • In the ON position, the switch connects the circuit’s inputs and outputs based on the direction of the throw.
   • In the OFF position, the connections are broken, and no current flows.

3. Indicator Light:

   • The indicator light turns on when the switch is in the ON position, providing a visual signal that the device or circuit is powered or active.
   • The indicator is typically powered by the same circuit that the switch controls, ensuring clear feedback.

4. Wiring:

   • The 3 pins on the switch are typically configured as follows:
     • Pin 1: Common (input for power).
     • Pin 2: Output for the first circuit (when the switch is in the ON position).
     • Pin 3: Output for the second circuit (in the alternate position).
     • The indicator pin is often integrated into the switch housing, powered by the circuit’s voltage.

Limitations:

• Current Limitations: While the 15A 250V rating is sufficient for many medium-power applications, it is important not to exceed this rating as it may cause overheating or damage to the switch and the connected components.
• Size: The rocker switch is larger than momentary switches, so it may not be suitable for projects with space constraints.
• Single Throw Circuit Limitation: Though DPDT offers flexibility, it is still limited to only two circuits. If you require more complex switching capabilities, consider using a multi-pole switch.

The Rocker Switch DPDT KCD3 15A 250V 3 Pin With Indicator is a reliable and durable switch for controlling high-power circuits. With its DPDT functionality, 15A current rating, and indicator light, it is a versatile choice for a variety of electrical control applications. Whether you need to toggle between different devices or power sources, this switch provides a clear and dependable solution.
