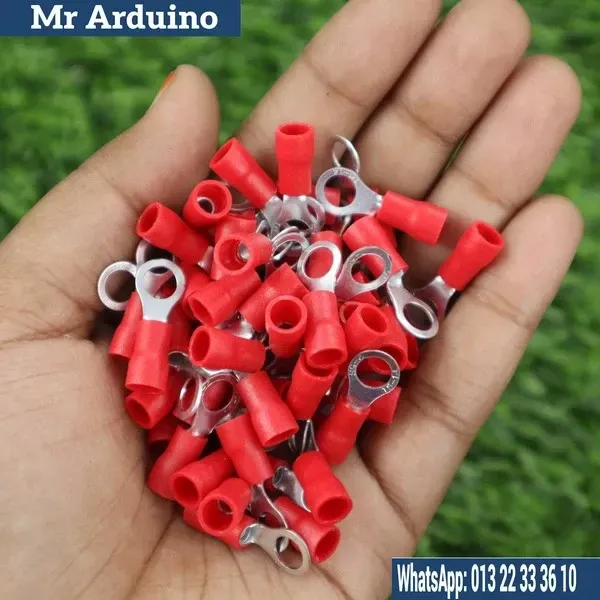

The Ring Terminal Cable Connector Red 16-14 By 1.5-2.5 is a durable and efficient electrical connector designed for secure, insulated connections in wiring systems. This red ring terminal is compatible with 16 AWG to 14 AWG wire sizes, making it perfect for medium-duty electrical applications. The 1.5-2.5mm hole size of the terminal allows it to fit bolts, studs, or male terminals within this size range, providing a stable and reliable connection.

The red insulation serves as a visual indicator, commonly used for 16-14 AWG wire connections, ensuring both safety and easy identification. The insulation helps protect the electrical connection from environmental hazards such as moisture, dirt, and accidental shorts, ensuring long-lasting performance in automotive, industrial, and residential applications.

How It Works:

The Ring Terminal Cable Connector Red 16-14 By 1.5-2.5 creates a secure connection between a wire and a bolt or terminal, offering both mechanical and electrical stability. Here’s how it works:

1. Step 1: Strip the insulation from the wire end to expose the copper conductor.

2. Step 2: Insert the stripped wire into the barrel of the ring terminal.

3. Step 3: Use a crimping tool to securely crimp the wire into the ring terminal. This will ensure a strong, permanent connection between the wire and the terminal.

4. Step 4: Attach the terminal by sliding the 1.5-2.5mm hole over a male terminal or bolt.

5. Step 5: Tighten the bolt or screw securely to fasten the ring terminal in place, ensuring a solid electrical connection. The red insulation will help prevent accidental contact and provide electrical insulation for safety.

Product Limitations:

• Size Compatibility: This terminal is designed for 16 AWG to 14 AWG wires. If you're using wires outside of this range, the terminal may not provide a secure fit. For larger or smaller wire gauges, choose a different terminal size.

• Hole Size: The 1.5-2.5mm hole size is designed for specific terminal or stud sizes. Ensure that the bolt or terminal you are connecting to falls within this range for a proper fit.

• Current Rating: This terminal is intended for medium-duty applications. For high-power circuits or heavy-duty applications, consider using terminals with larger wire gauge support or higher current ratings.

• Environmental Resistance: While the terminal provides insulation for protection against environmental factors like moisture, it may not be suitable for extreme temperature or corrosive environments. For such conditions, more robust terminals with better environmental resistance may be required.

The Ring Terminal Cable Connector Red 16-14 By 1.5-2.5 provides a secure, reliable, and insulated connection for medium-duty electrical wiring applications. Perfect for automotive, residential, and industrial use, it ensures safety, durability, and long-term reliability.
