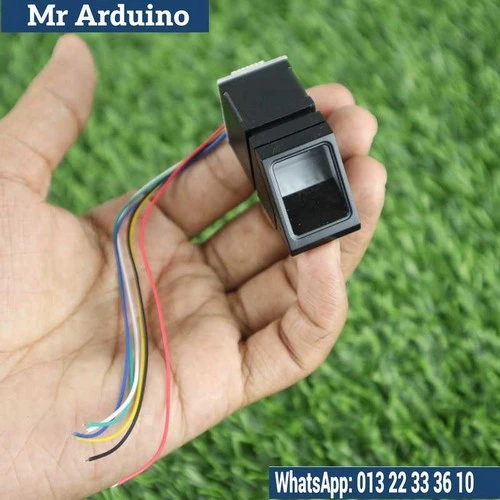

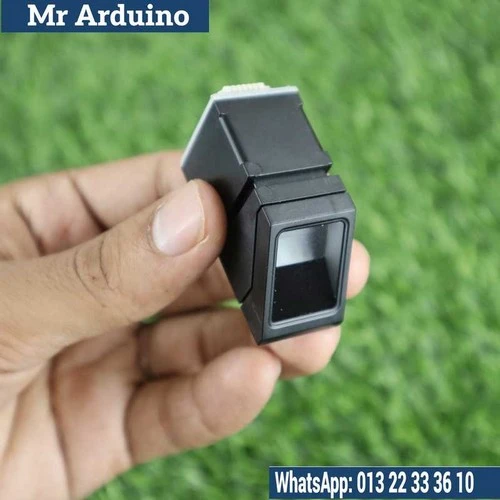

The R307 Optical Fingerprint Reader is a highly accurate and easy-to-use fingerprint sensor that allows for biometric authentication in various applications. It uses optical sensing technology to capture a high-quality image of a fingerprint and compare it with stored templates for verification. The R307 module is widely used in security systems, access control, and personal authentication devices due to its reliability, compact size, and ease of integration with microcontroller platforms like Arduino, Raspberry Pi, and others.

Key Features:

• Optical Sensing Technology: The R307 uses optical sensing to capture detailed images of fingerprints, ensuring high accuracy in fingerprint detection and matching.

• Fingerprint Template Storage: Can store up to 1000 fingerprint templates in its onboard memory, making it suitable for small to medium-scale authentication systems.

• Fast Fingerprint Matching: Offers quick and efficient fingerprint matching, typically within 1 second, ensuring fast authentication and access.

• Easy Integration: The module communicates with microcontrollers via UART (serial communication), making it easy to interface with popular platforms like Arduino, Raspberry Pi, and others.

• Low Power Consumption: Designed to be energy-efficient, making it suitable for portable or battery-powered applications.

• Compact and Durable Design: The compact size allows easy integration into a wide range of applications, and the module’s durability makes it suitable for both indoor and outdoor environments.

• Built-in LED Indicator: Includes an LED for visual feedback, indicating the status of the fingerprint scan (success, failure, or standby).

How it Works:

1. Fingerprint Capture: When a finger is placed on the sensor, it uses optical technology to capture an image of the fingerprint. The high-resolution optical sensor creates a detailed image of the fingerprint ridges and valleys.

2. Fingerprint Template Creation: During the initial enrollment process, the fingerprint image is processed, and key features (minutiae points) are extracted and stored as a template in the module’s memory.

3. Fingerprint Matching: When the fingerprint is scanned again, the R307 compares the captured image with the stored templates. If a match is found, the system grants access or triggers the desired action.

4. Authentication Response: The module sends a response to the microcontroller, indicating whether the authentication was successful or not. The LED and other status indicators provide feedback to the user.

Applications:

• Access Control Systems: Ideal for securing doors, gates, or rooms by authenticating users based on their fingerprints. Can be integrated into home or office security systems for more secure access.

• Time and Attendance Systems: Used in employee attendance systems to track working hours by identifying employees based on their fingerprint.

• Personal Identification Systems: Useful in various applications where personal identification is needed, such as in banking, personal gadgets, or secure devices.

• Security and Surveillance: Can be incorporated into larger security systems for fingerprint-based access in restricted areas or for sensitive equipment.

• Biometric Authentication Projects: Ideal for hobbyists and makers working on biometric authentication solutions in DIY or educational projects.

Limitations:

• Environmental Sensitivity: Optical sensors may not work well in certain environmental conditions, such as in low light or on wet or dirty fingers.

• Storage Limitations: The R307 can store a maximum of 1000 fingerprint templates, which may not be enough for large-scale systems with many users.

• Fingerprint Quality: The accuracy of the fingerprint matching can be affected by the quality of the fingerprint image. Dirty or damaged fingers can lead to inaccurate readings or failures.

• Power Supply Requirements: The module operates at 3.3V to 5V, requiring a stable power source for optimal performance.

The R307 Optical Fingerprint Reader is an excellent choice for projects that require secure and reliable biometric authentication. With its fast matching capabilities, compact design, and ease of integration, it is perfect for access control systems, time and attendance systems, and personal identification applications.
