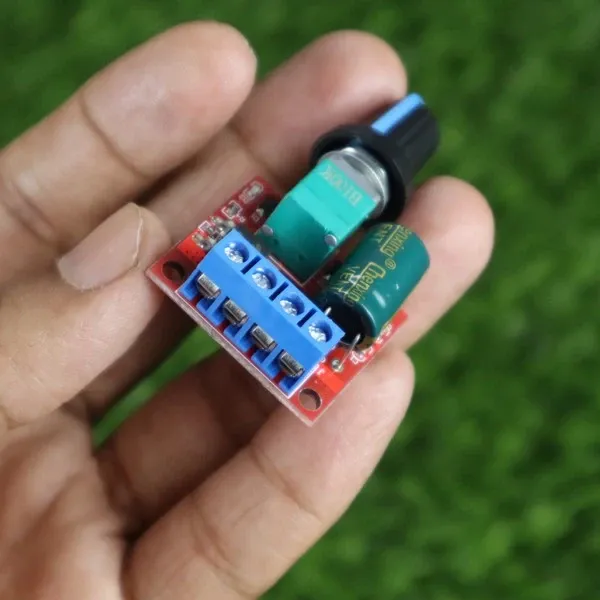

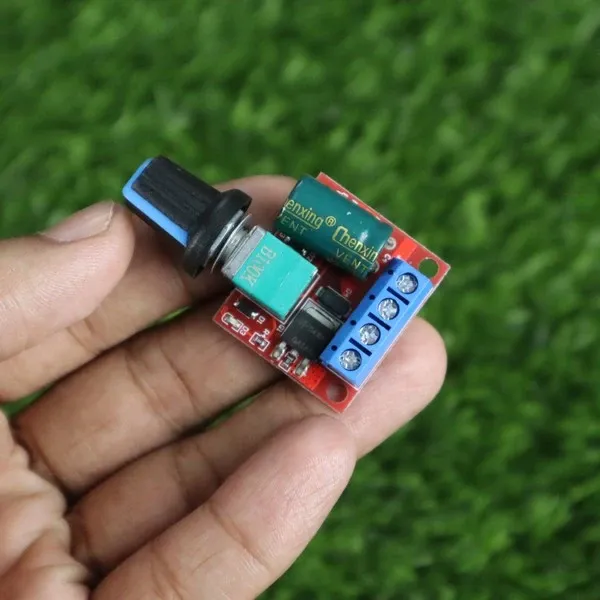

The PWM 5A Motor Speed Controller (Without PF) is a compact and efficient DC motor controller that uses Pulse Width Modulation (PWM) to regulate motor speed without affecting torque. This controller supports up to 5A of continuous current, making it suitable for small to medium-sized brushed DC motors in DIY electronics, robotics, automation systems, and hobby projects.

The “Without PF” version means it doesn’t include a Power Factor correction capacitor, making it more compact and cost-effective—ideal for basic motor control applications where power factor correction isn't necessary.

How It Works:
The controller adjusts the motor's speed by rapidly switching the voltage on and off using PWM signals. By varying the duty cycle of these pulses, it effectively controls the average voltage delivered to the motor, thereby controlling its speed. The design ensures smooth operation with minimal energy loss and consistent torque.

You can easily control speed using an onboard potentiometer or external PWM input (if supported).

Specifications:

• Input Voltage: 6V – 30V DC

• Output Current: Up to 5A continuous (with proper cooling)

• PWM Frequency: Typically 13kHz – 25kHz

• Speed Control Method: Rotary potentiometer (built-in)

• Efficiency: >90% under normal load

• Control Type: Unidirectional (forward only)

• Board Type: Open-frame or enclosed (depending on model)

• Cooling: Passive, with optional heatsink for higher loads

Features:

• Smooth motor speed control using PWM

• Compact design with easy screw terminal connections

• Integrated power switch (if included on model)

• Easy to use with Arduino, ESP32, Raspberry Pi, and other microcontrollers

• Ideal for DC fans, pumps, and small robotics projects

Limitations:

• No power factor correction (PF)—may not be suitable for high-efficiency or power-sensitive environments.

• Not designed for bidirectional control (doesn’t support motor reversal).

• No built-in protection features—external fuse or current limiter recommended.

• Requires proper cooling when operating close to the 5A limit.
