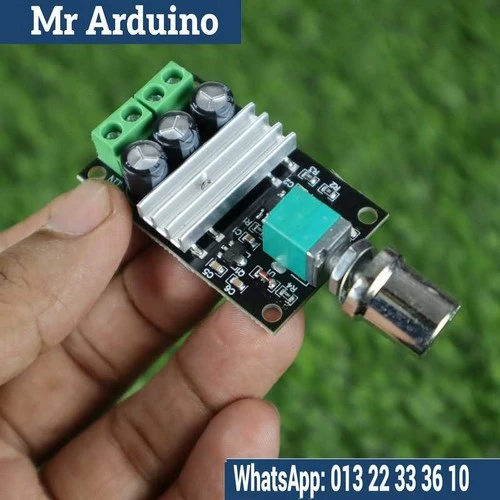

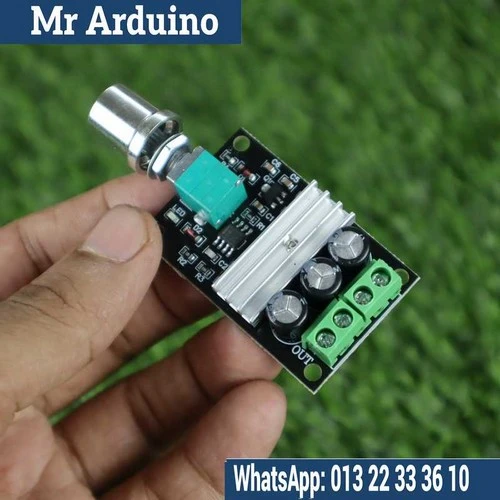

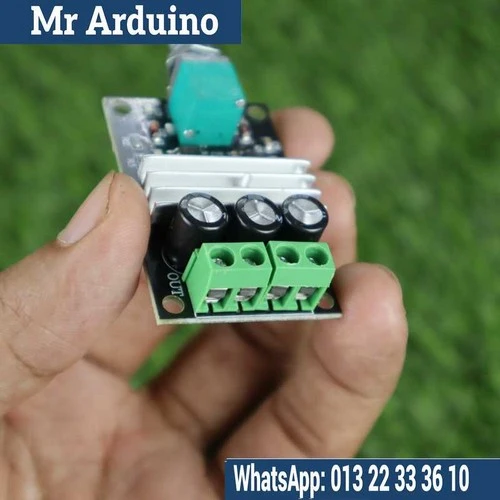

The PWM 3A module is a pulse-width modulation (PWM) controller that provides adjustable control over the output voltage, enabling efficient power regulation for various electronic devices. This module is designed to handle up to 3A of current and is commonly used for controlling the speed of motors, brightness of LEDs, or the power supplied to other electronic components. PWM technology allows for efficient power control by rapidly switching the output on and off, adjusting the ratio of the time the signal is on (duty cycle) and off.

The PWM 3A module is widely used in applications like DC motor speed control, dimming LED lights, battery charging systems, and other projects that require efficient power regulation. The adjustable output feature allows users to fine-tune the power delivery, ensuring that the connected load receives the optimal power needed for its operation.

How It Works: The PWM 3A module works by generating a pulsed output signal that switches between on and off states at a high frequency (typically tens to hundreds of Hz). The duty cycle—the ratio of time the signal is on versus off—determines the average voltage delivered to the load.

• High Duty Cycle: More power is delivered to the load (higher average voltage).
• Low Duty Cycle: Less power is delivered to the load (lower average voltage).

For instance, when used to control a DC motor, adjusting the PWM signal's duty cycle changes the motor's speed. Similarly, when controlling LEDs, the duty cycle can change the perceived brightness by regulating how much power is delivered to the LED.

The PWM 3A module is typically equipped with an adjustable potentiometer that allows users to set the desired duty cycle, which in turn adjusts the output voltage or current supplied to the load.

Key Features:

• Current Handling: Capable of handling up to 3A of current, making it suitable for most medium-power applications, including motor control and LED dimming.
• Adjustable Duty Cycle: Provides adjustable output for fine control over power, voltage, and current.
• High Efficiency: PWM technology minimizes power loss compared to linear voltage regulators, improving energy efficiency.
• Compact and Easy to Use: Simple design with easy connections, ideal for DIY projects and integrations into existing systems.
• Versatile Applications: Can be used for controlling motors, LED brightness, heating elements, and other electronic devices requiring variable power control.
• Wide Voltage Range: Typically operates with input voltages ranging from 5V to 35V, making it suitable for a variety of systems.
• Protection Features: Built-in protections for overcurrent and overvoltage to prevent damage to the module and connected devices.

Specifications:

• Input Voltage Range: 5V to 35V DC (depending on the specific module version)
• Output Voltage: Adjustable based on the input and duty cycle
• Current Handling: Up to 3A
• Control Type: PWM (Pulse Width Modulation)
• Frequency: Typically operates at 100Hz to 1kHz (varies depending on the module)
• Adjustment Method: Potentiometer for adjusting the duty cycle
• Output Signal: Digital PWM signal (0V to input voltage)
• Size: Compact design, typically around 40mm x 25mm x 15mm (module size may vary)
• Efficiency: High efficiency (up to 90% or more, depending on the application and load)

Limitations:

• Current Limitation: The module can handle a maximum of 3A, so it may not be suitable for high-power applications requiring more current. In such cases, a higher-rated module or external power transistors may be necessary.
• Voltage Drop: While PWM controllers are efficient, there could still be a slight voltage drop under heavy loads or at very low duty cycles.
• Heat Generation: At higher currents, the module may generate heat, which could require heat dissipation through a heatsink or adequate ventilation.
• Limited Output Types: The module typically provides only a PWM signal (digital output), so it's not suitable for applications that require a stable analog output without filtering.

The PWM 3A module is an efficient and versatile solution for controlling power delivery in various applications. Whether you're looking to control the speed of a motor, dim an LED, or regulate a heating element, this module offers a cost-effective and reliable method to achieve precise control over power and voltage. Its high efficiency and ability to handle moderate currents make it ideal for a wide range of DIY electronics projects.
