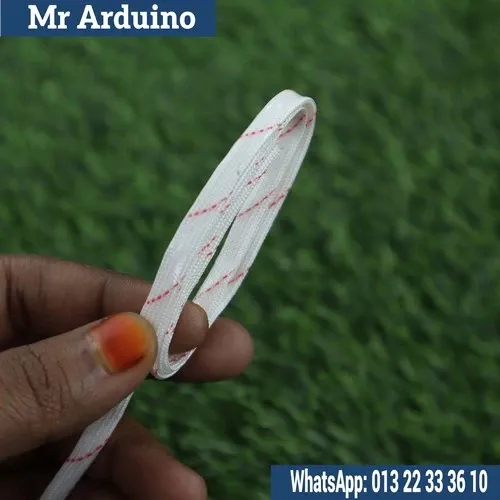

The PVC Fiberglass Sleeve Tube 3mm is a high-performance protective tubing designed for use in various electrical, automotive, and industrial applications. With an internal diameter of 3mm, this sleeve is ideal for covering and protecting small wires, cables, or components. The combination of fiberglass and PVC materials ensures excellent durability, flexibility, and insulation. The fiberglass enhances the tube's resistance to high temperatures and physical wear, while the PVC provides electrical insulation, moisture protection, and overall flexibility.

This tube is commonly used in environments where wires need to be shielded from heat, abrasion, and environmental damage. It’s particularly useful for applications in electronics, automotive wiring, and any system where small components require robust protection in challenging conditions.

How It Works:

1. Insulation: The PVC material provides electrical insulation, preventing short circuits and electrical accidents by insulating wires and cables. It also prevents moisture, dust, and chemicals from affecting the internal wires or components.

2. Heat Resistance: The fiberglass construction offers excellent heat resistance, allowing the tube to protect cables in high-temperature environments (up to approximately 260°C depending on the tube grade).

3. Abrasion Resistance: The tube's fiberglass reinforcement gives it the ability to resist wear and tear from friction, preventing damage to the cables inside. It is especially beneficial in environments where there’s movement or contact with rough surfaces.

4. Flexibility: The PVC portion of the tube provides flexibility, making it easy to install around cables and tight spaces. It can be bent without cracking or losing its protective properties.

5. Environmental Protection: The sleeve protects cables from harmful environmental factors like UV rays, moisture, dust, and chemicals. This makes it suitable for both indoor and outdoor applications.

Product Limitations:

• Diameter Limitation: With a 3mm internal diameter, this sleeve is specifically designed for small cables or wires. It is not suitable for larger cables or applications where a thicker tube is required for protection.

• Temperature Limits: While the fiberglass and PVC provide excellent heat resistance, prolonged exposure to temperatures above 260°C can lead to degradation of the tube. It is essential to stay within the recommended temperature limits.

• Mechanical Strength: The tube offers good abrasion resistance but is not designed to withstand heavy mechanical impacts. For applications requiring shock resistance or heavy-duty physical protection, a more robust solution may be necessary.

• UV Resistance: Although the PVC provides some UV protection, long-term exposure to sunlight can cause the PVC to degrade, making it brittle and reducing its protective capabilities. It’s important to regularly inspect the tubing when used in outdoor or high-UV environments.

• Limited Structural Support: While flexible, the sleeve does not provide significant structural support for cables in need of rigidity. If you need to prevent bending or twisting of wires, additional reinforcement might be required.

The PVC Fiberglass Sleeve Tube 3mm is an excellent choice for protecting smaller cables in environments where heat resistance, electrical insulation, and abrasion protection are critical. Its combination of fiberglass durability and PVC flexibility makes it a versatile solution for a wide range of applications.
