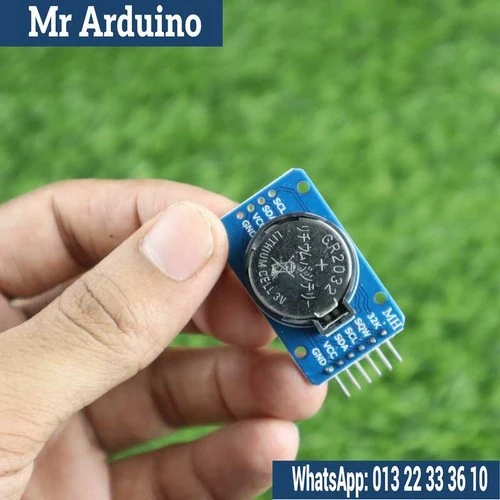

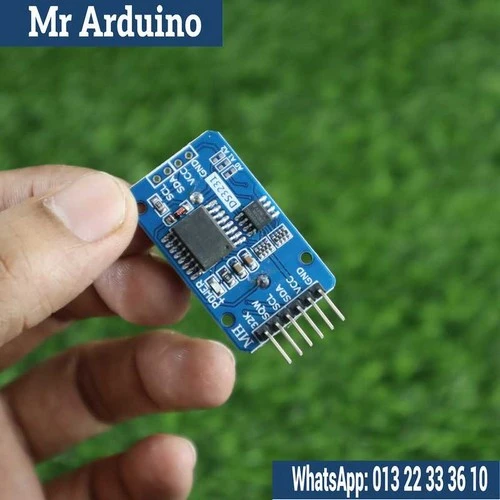

RTC Module DS3231 | Real Time Clock Module

6 Orders 2 Wish listed

৳330

Qty
Total price:
  ৳330

Detail Description

The DS3231 Real-Time Clock (RTC) Module is a highly accurate timekeeping device that integrates a temperature-compensated crystal oscillator and a 32Kbit EEPROM. Here are the detailed features and specifications:

  1. Module Description:

    • Functionality: The DS3231 RTC module is designed to provide precise timekeeping with features like calendar, alarms, and a digital temperature sensor.
    • Applications: Ideal for time-stamping data, scheduling tasks, and maintaining time in embedded systems even during power outages.

  2. Key Specifications:

    • Operating Voltage: 3.3V to 5.5V, compatible with various microcontrollers including Arduino and Raspberry Pi [1].
    • Communication Interface: I2C, facilitating easy integration with microcontroller projects [2].
    • Temperature Sensor: Built-in 10-bit temperature sensor with a resolution of 0.25°C for enhanced accuracy [3].
    • EEPROM: Includes a 32Kbit (4KB) AT24C32 EEPROM for additional data storage [1].

  3. Physical Characteristics:

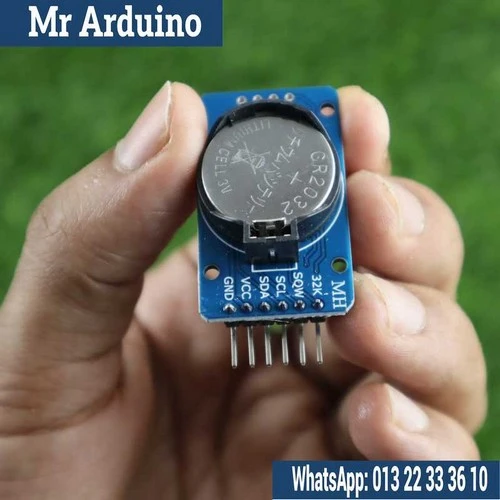

    • Battery Backup: Comes with a CR2032 battery holder, ensuring continuous timekeeping even when the main power is off [4].
    • Alarms and Timers: Two time-of-day alarms and programmable square-wave output [4].

  4. Accuracy and Stability:

    • High Precision: The module offers high accuracy with an aging trim register and temperature compensation, ensuring minimal drift over time [4].
    • Stability: The temperature-compensated crystal oscillator (TCXO) helps maintain accurate timekeeping in varying environmental conditions [3].

  5. Integration:

    • Microcontroller Compatibility: Suitable for use with Arduino, Raspberry Pi, and other microcontroller platforms. Libraries and sample codes are readily available to assist in the development process [5].
