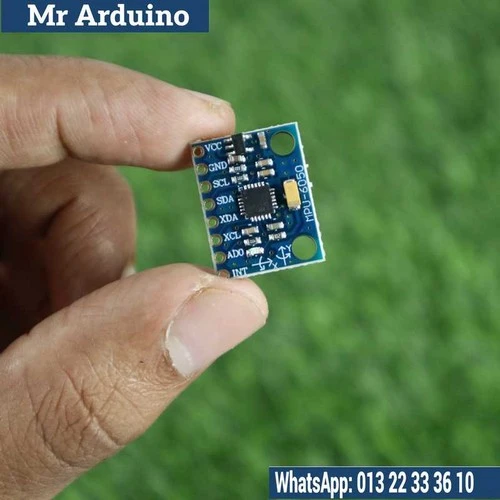

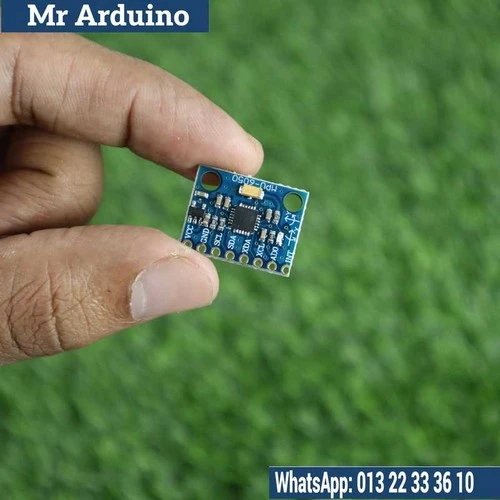

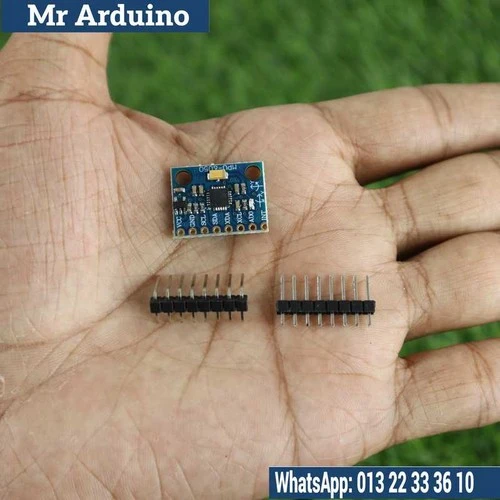

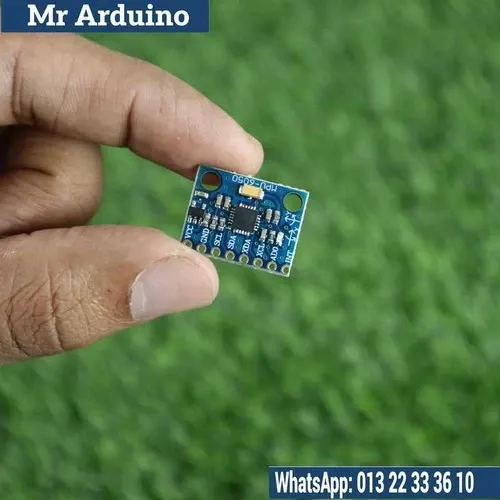

The MPU-6050 is a versatile and highly popular 6-axis motion tracking sensor that combines a 3-axis gyroscope and a 3-axis accelerometer in a single chip. Designed by InvenSense, this sensor module is widely used for applications such as motion detection, robotics, gesture control, stabilization systems, and other motion-based projects. It is a compact and low-power sensor ideal for use in embedded systems, drones, and wearable devices.

The MPU-6050 can measure angular velocity and linear acceleration in all three axes (X, Y, Z) with high accuracy and precision. Its integration with the Digital Motion Processor (DMP) enables complex motion processing tasks directly on the sensor, which reduces the workload on the microcontroller.

Key Features:

• 3-axis Accelerometer: Measures acceleration in X, Y, and Z directions.

• 3-axis Gyroscope: Measures rotational motion or angular velocity.

• Built-in Digital Motion Processor (DMP): Processes motion data on the chip to reduce the load on the microcontroller.

• I2C Communication: Easy integration with microcontrollers like Arduino and Raspberry Pi.

• Low Power Consumption: Ideal for battery-operated devices.

• Wide Range of Applications: Used in robotics, drones, wearables, and motion-sensing systems.

How It Works: The MPU-6050 sensor operates by detecting changes in motion along the X, Y, and Z axes. The accelerometer detects changes in velocity, while the gyroscope measures the rate of rotation around each axis. When you send data from the sensor to your microcontroller via I2C protocol, the microcontroller can use the raw sensor data to calculate precise movement, position, and orientation.

For example, in a robotics application, the MPU-6050 can help stabilize the robot by detecting tilts or changes in position, allowing the system to adjust motors accordingly. In a drone, it helps keep the flight stable by continuously measuring rotational movements.

Specifications:

• Accelerometer Range: ±2g, ±4g, ±8g, ±16g

• Gyroscope Range: ±250°/s, ±500°/s, ±1000°/s, ±2000°/s

• Operating Voltage: 3.3V to 5V

• Interface: I2C (Inter-Integrated Circuit)

• Output Data Rate (ODR): 8 to 1,000 Hz (configurable)

• Package Type: 7x7mm QFN-24

Applications:

• Motion detection systems

• Gesture recognition

• Robotics (stabilization, movement detection)

• Wearable fitness devices

• Drones and UAVs (for stabilization and flight control)

• Gaming controllers

• Virtual reality systems

Limitations:

• The sensor’s accuracy can be affected by environmental conditions like temperature.

• Noise in sensor data may require calibration for optimal performance.

• I2C communication can be slower when using multiple devices on the same bus.

• Limited on-board processing power for very complex algorithms.
