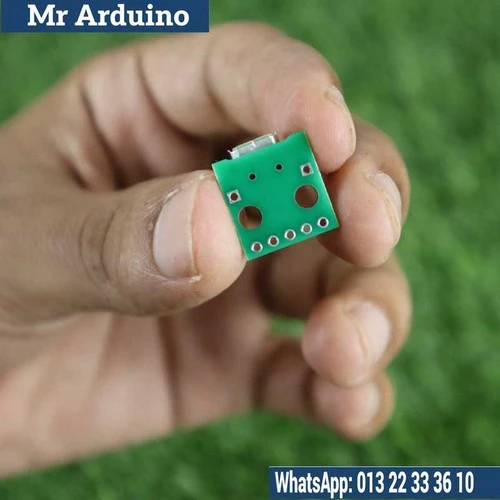

The Micro USB To DIP Adapter Female Socket Type B is a versatile and practical adapter designed to provide an easy way to connect micro USB devices to a Dual In-line Package (DIP) format. This adapter is perfect for applications where a micro USB connection is required but a standard DIP pin layout is needed for breadboarding, prototyping, or circuit integration. It features a female micro USB socket and provides the necessary pins for easy connection to a microcontroller or other components.

Key Features:

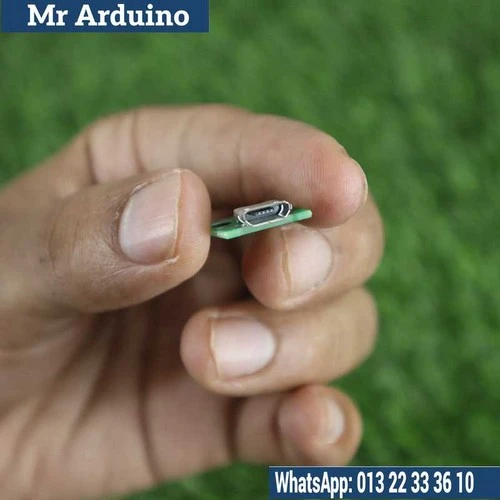

• Micro USB Female Socket: The adapter features a female micro USB Type B port, making it ideal for connecting micro USB cables to your projects, enabling easy power or data connections.
• DIP Pin Layout: The DIP pins make it easy to integrate the adapter into a breadboard or PCB for prototyping, offering a convenient way to interface with micro USB-enabled devices.
• Compact and Efficient: The small size of the adapter makes it a space-efficient solution for projects with limited room for components. It’s ideal for adding USB functionality to smaller designs or prototyping setups.
• Versatile Applications: Suitable for projects that require a micro USB interface but need a DIP configuration for easy connectivity and testing.
• Durable Design: The adapter is designed for reliable performance, with solid construction that ensures durability during multiple connections and disconnections.
• Wide Compatibility: Works with a variety of devices, including Arduino, Raspberry Pi, and other microcontroller platforms, where a micro USB connection is necessary.

How it Works:

1. Connection to Micro USB Device: Simply plug a micro USB Type B cable into the female socket of the adapter. This allows you to connect any device that uses a micro USB port to your project.

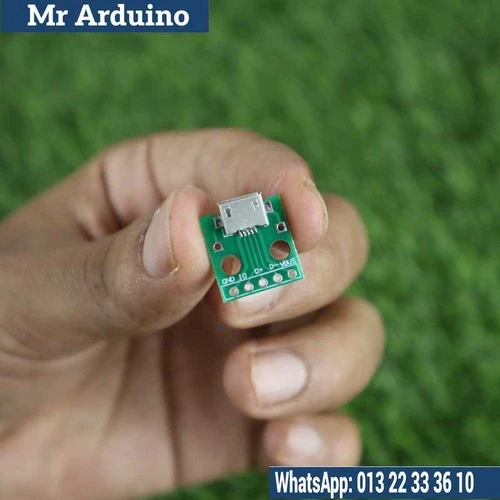

2. DIP Pin Integration: The other side of the adapter features pins configured in a standard DIP layout, allowing it to be inserted into a breadboard or directly soldered to a PCB. The DIP pins provide access to the micro USB connections, such as power (VCC), ground (GND), and data signals (D+/D-).
3. Usage in Prototyping: The DIP pin configuration allows you to easily incorporate the micro USB connection into your electronic circuit for prototyping, providing a seamless interface for communication or power.
4. Power or Data Transmission: Depending on your project requirements, you can use the adapter to either supply power to your circuit from a micro USB power source or facilitate data transfer between your microcontroller and USB-compatible devices.

Applications:

• Prototyping Projects: Ideal for prototyping with microcontrollers or other electronic components that require micro USB connectivity for power or communication, especially when using a breadboard.
• Arduino or Raspberry Pi Projects: Perfect for providing a stable micro USB connection in Arduino or Raspberry Pi projects, where USB power or data transfer is necessary.
• Powering Embedded Systems: Use it to power embedded systems or devices that use micro USB as a power input while still maintaining easy access to connections.
• USB Communication: Ideal for projects requiring a micro USB data connection, such as serial communication or USB device interfacing.
• DIY Electronics Projects: A great choice for hobbyists and makers who need an easy solution for integrating micro USB functionality into their electronic prototypes or projects.

Limitations:

• Limited Data Transmission Speed: This adapter is typically designed for basic power and data connection tasks, and may not support high-speed data transfer, like USB 3.0 or above.
• Power Handling Limits: Although it provides a stable power connection, it may not support very high current levels, so make sure to check the current requirements of your connected devices.
• Not Suitable for All USB Devices: This adapter works well for low-power devices that use micro USB Type B, but it might not be suitable for devices that require specific USB protocols (like video output or high-speed data transfer).

The Micro USB To DIP Adapter Female Socket Type B is a highly useful tool for adding micro USB connectivity to your DIY projects or prototypes. Whether you’re powering an embedded system or facilitating data transmission between devices, this adapter is a simple and reliable solution for integrating micro USB connections into your electronic designs.
