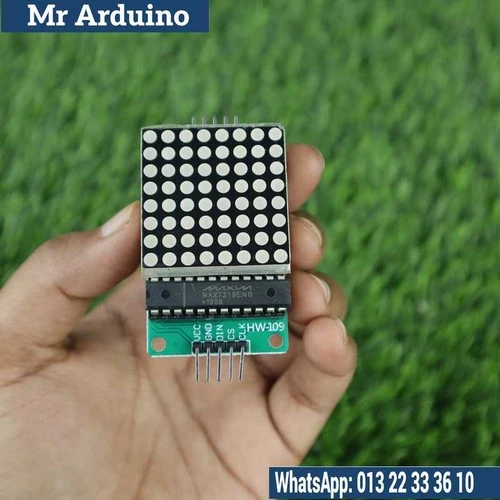

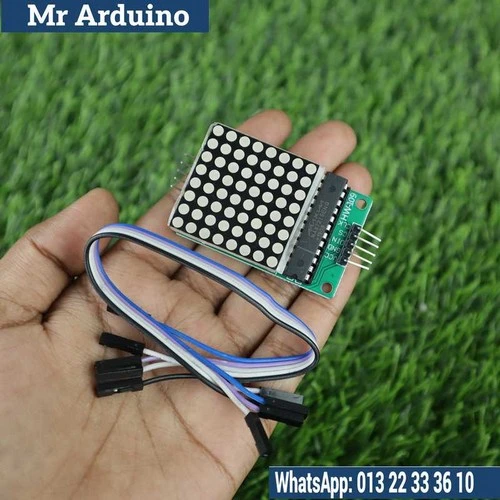

MAX7219 Dot LED Matrix Display Module

Enhance your projects with the MAX7219 Dot LED Matrix Display Module, a versatile and easy-to-use display solution for creating engaging visual outputs. Designed for developers, hobbyists, and educators, this module allows you to easily control a matrix of LEDs for a variety of applications, from simple animations to complex data visualization.

Key Features:

• Integrated MAX7219 Chip: Simplifies control of up to 64 individual LEDs, allowing for efficient operation and easy communication.
• 7x8 LED Matrix: Features a standard 7x8 grid layout, perfect for displaying text, images, and animations.
• Easy Interface: Utilizes a simple serial interface (SPI) for straightforward communication with microcontrollers like Arduino and Raspberry Pi.
• Adjustable Brightness: Supports brightness control via software, allowing you to customize the display for various lighting conditions.
• Daisy Chain Capability: Multiple modules can be connected together, enabling larger displays with minimal wiring.

Benefits: The MAX7219 Dot LED Matrix Display Module is an ideal choice for anyone looking to add dynamic visual elements to their projects. Its user-friendly design and versatility make it suitable for educational purposes, art installations, and hobbyist applications.

Target Audience: Electronics enthusiasts, educators, students, and developers working on projects involving visual displays and LED control.

Specifications

• Display Type: 7x8 Dot Matrix LED
• Control Chip: MAX7219
• Communication Protocol: SPI (Serial Peripheral Interface)
• Operating Voltage: 5V DC
• Current Consumption: Approximately 30 mA (depending on brightness and display configuration)
• Module Size: Typically 5.0 cm x 3.2 cm (specific dimensions may vary)
• Pin Configuration:
  • VCC: Power supply
  • GND: Ground
  • DIN: Data input
  • CLK: Clock signal
  • LOAD: Load signal
• Operating Temperature Range: -40°C to +85°C
