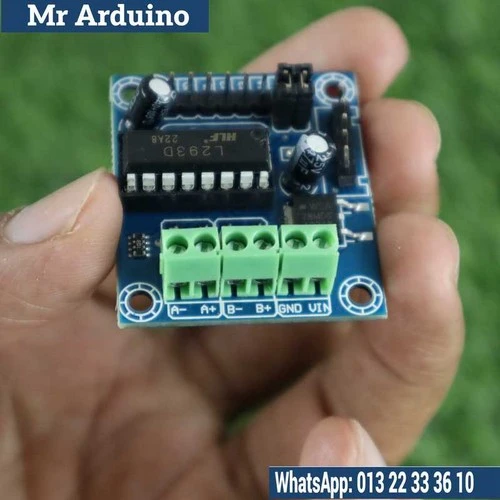

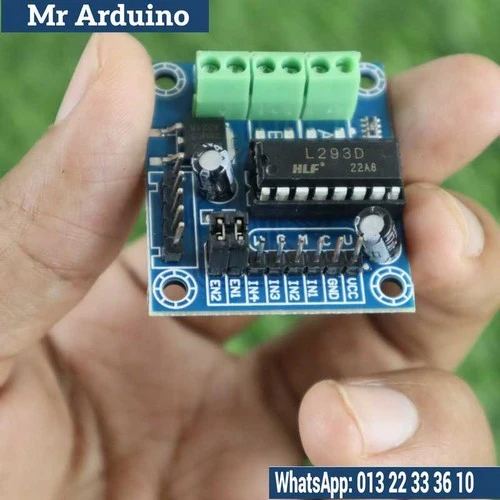

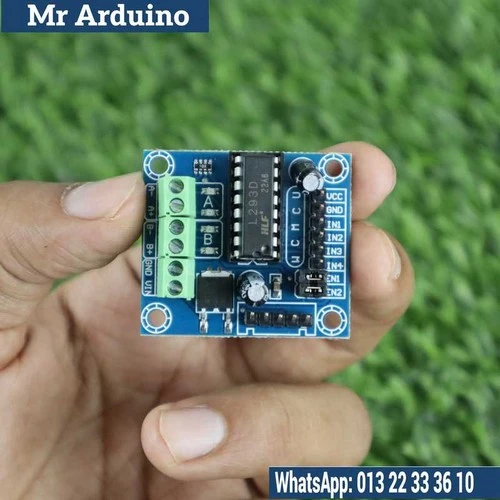

The L293D Motor Driver Module Mini is a compact, efficient motor driver designed to control the direction and speed of DC motors, stepper motors, and other inductive loads. It is based on the L293D IC, a popular motor driver chip that can drive motors in both directions, making it ideal for robotics and other motor-controlled projects. This mini version is perfect for compact designs where space is limited, while still offering the power and performance needed for motor control applications.

Key Features:

• Motor Control: Drives DC motors and stepper motors in both clockwise and counter-clockwise directions.

• Dual H-Bridge: The L293D IC uses a dual H-bridge configuration to provide bi-directional control of motors.

• Motor Voltage Range: Supports motor voltage between 4.5V and 36V, suitable for a wide range of motors.

• Current Handling: Can supply up to 600mA continuous current per motor, with peak current capability of 1.2A.

• Integrated Protection: Built-in thermal shutdown and overload protection to prevent damage to the module.

• Compact Size: The mini version of the L293D motor driver is small and easy to integrate into tight spaces.

• Easy Integration: Uses simple GPIO pins from an Arduino or other microcontrollers to control the motor's direction and speed.

• PWM Control: Supports PWM (Pulse Width Modulation) for speed control, allowing for precise motor speed adjustments.

How it Works:

1. Connections: Connect the L293D Motor Driver Module Mini to your microcontroller (e.g., Arduino) using the designated pins for motor control (IN1, IN2, IN3, IN4) and the motor’s power supply.

2. Motor Control: Use GPIO pins from your microcontroller to send signals (HIGH or LOW) to the inputs (IN1, IN2, IN3, IN4) of the L293D to control the direction of the motors.

3. PWM Speed Control: To adjust the speed of the motor, use PWM signals from your microcontroller to control the enable pins (ENA and ENB) for each motor channel.

4. Power Supply: Ensure the motor and the driver module are powered using an appropriate power source (e.g., a 9V or 12V battery), depending on the motor's requirements.

Applications:

• Robotics: Ideal for controlling the wheels of a mobile robot or a robotic arm.

• Automated Vehicles: Perfect for motor control in autonomous robots or vehicles.

• Home Automation: Can be used for controlling motors in home automation projects like automated gates or window blinds.

• DIY Projects: Suitable for hobbyists working on various motorized projects like motorized carts, fans, or conveyor belts.

Limitations:

• Current Limitation: The L293D is rated for 600mA continuous current per motor. For high-power motors, you may need a motor driver with a higher current capacity.

• Heat Dissipation: While the L293D has thermal protection, excessive heat can affect performance. Make sure to avoid overloading the motor driver module.

• Single Voltage Source: The module uses the same voltage source for both logic and motor power, which could be a limitation if different voltages are required for the logic and motors.

The L293D Motor Driver Module Mini is an ideal choice for anyone needing to control motors in a compact form factor, offering a straightforward solution for motorized applications in robotics, automation, and more.

Purchase the L293D Motor Driver Module Mini now at www.mrarduino.com to get started on your motor control projects!
