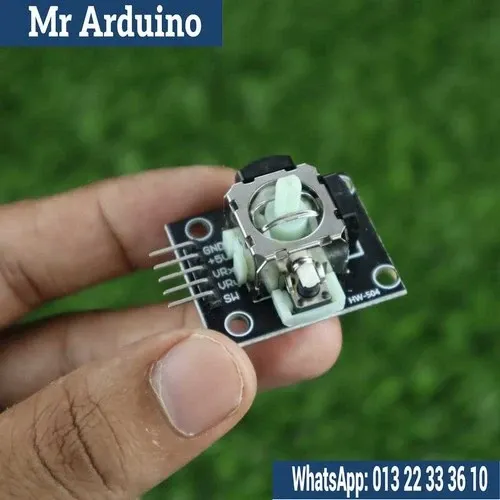

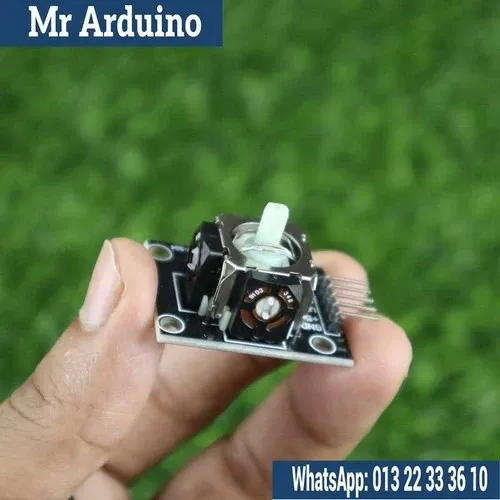

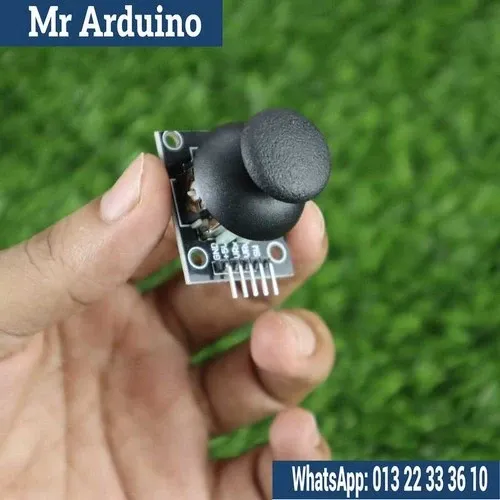

The Joystick Module is a small, versatile input device that allows users to control movements in two dimensions. Featuring an analog joystick, this module is commonly used in projects where precise control or directional movement is needed, such as in robotic systems, games, drones, or remote-controlled vehicles. The joystick operates like a small version of a game controller's thumbstick, providing intuitive, real-time input for your projects.

How It Works: The Joystick Module operates using two potentiometers—one for the X-axis (horizontal movement) and one for the Y-axis (vertical movement). When the joystick is moved in any direction, the resistance of these potentiometers changes, which generates a corresponding voltage change. The voltage change is then read by the microcontroller (such as Arduino), which interprets it as a value for the X and Y positions.

In addition to the X and Y axes, the module usually has a built-in push button function, which gets triggered when the joystick is pressed down. This feature allows the joystick to be used as both a navigation tool and an activation switch.

Key Features:

• 2-Axis Control: Allows movement on both the X (horizontal) and Y (vertical) axes for precise directional control.
• Built-in Push Button: The joystick can be pressed down, providing a third input for additional functionality, such as a selection button.
• Easy Integration: The module can be easily integrated with microcontrollers like Arduino, Raspberry Pi, or ESP32.
• Adjustable Sensitivity: The joystick's range and sensitivity can be adjusted to suit your project requirements.
• Durable and Compact Design: Small form factor ideal for embedding in small electronics or projects with limited space.
• Analog Output: Provides real-time analog data for both X and Y axes, making it highly suitable for applications that require smooth control or navigation.

Specifications:

• Operating Voltage: 3.3V to 5V (compatible with most microcontrollers).
• Output Type: Analog (X and Y axes) and Digital (push button).
• X and Y Axes Range: Typically 0 to 1023 (for a 10-bit ADC, depending on the microcontroller).
• Push Button: Digital signal (on/off) when pressed.
• Dimensions: Approx. 5 cm x 5 cm (varies slightly depending on the model).
• Connector Type: Typically uses 5 pins (VCC, GND, X-axis, Y-axis, and Switch) for easy wiring.
• Control Type: Analog stick with push button functionality.

Limitations:

• Limited Precision: The joystick provides analog control, but the precision might not be as fine-tuned as other more advanced control systems (e.g., a mouse or trackpad).
• Wear and Tear: Over time, the potentiometers inside the joystick may degrade with extensive use, leading to less precise movement or "drifting."
• Single Point of Pressure: Unlike more advanced multi-touch devices, the joystick only responds to a single point of contact at a time.

The Joystick Module is perfect for a wide variety of interactive projects that require 2D directional control. Whether you're building a robotic arm, a drone, a gaming interface, or a remote-controlled vehicle, the joystick module offers an intuitive way to navigate and interact with your system, all while being easy to integrate and use.
