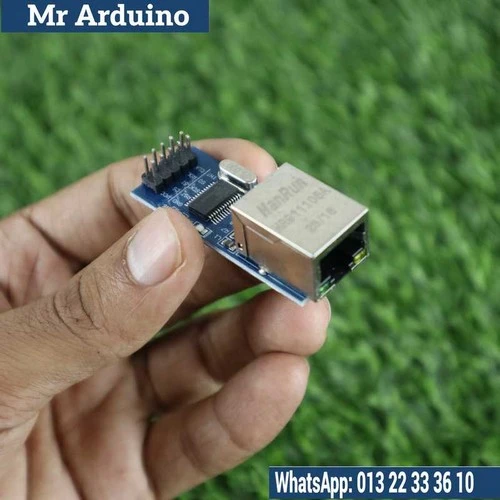

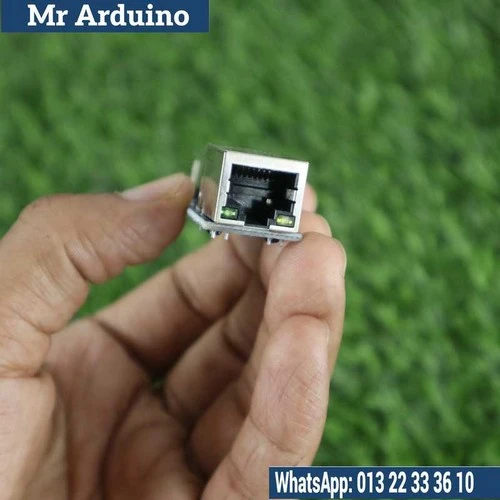

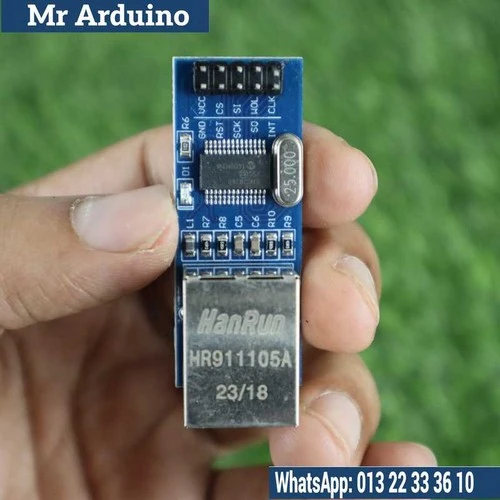

The ENC28J60 Ethernet LAN Network Module is a highly popular and compact network interface controller, designed to easily add Ethernet connectivity to your microcontroller-based projects. Based on the ENC28J60 chip, this module supports 10/100Mbps Ethernet connections and allows your microcontroller (such as Arduino, Raspberry Pi, or other platforms) to communicate with networks and the internet via wired Ethernet. With simple integration, it's an excellent choice for IoT applications, home automation, and any project requiring internet communication.

Key Features:

• Ethernet Connectivity: Provides reliable wired Ethernet communication for your microcontroller-based projects.

• ENC28J60 Chip: Based on the powerful ENC28J60 Ethernet controller, allowing fast and stable network connections.

• Communication Protocol: Uses SPI (Serial Peripheral Interface) to communicate with the microcontroller, ensuring simple and fast integration.

• 10/100 Mbps Speed: Supports speeds up to 100 Mbps (depending on the network and cable quality), ideal for most network applications.

• Low Power Consumption: Suitable for battery-powered or low-power IoT projects, as the module uses very little energy when idle.

• Compact Size: Small and easy to integrate into your project without taking up too much space.

• Flexible Programming: Works well with popular microcontroller platforms such as Arduino, Raspberry Pi, ESP32, and others. Easy to integrate using libraries like the UIPEthernet library for Arduino.

How it Works:

1. Connection to Microcontroller: The ENC28J60 module is connected to your microcontroller using the SPI pins (MOSI, MISO, SCK, CS, and VCC/GND).

2. Setup: Use compatible libraries (such as UIPEthernet for Arduino) to configure the module and connect it to your network. Once connected, the microcontroller can communicate over the Ethernet network.

3. Network Communication: After programming your microcontroller with the appropriate sketch (code), the ENC28J60 module allows data transmission, such as sending HTTP requests, sending sensor data to the cloud, or receiving data from web servers.

4. Powering the Module: The ENC28J60 module is powered via the VCC pin, which connects to the 3.3V or 5V pin of the microcontroller (depending on the module and microcontroller voltage requirements).

Applications:

• IoT (Internet of Things): Perfect for IoT projects that require reliable wired network communication, such as smart home systems, remote monitoring, or sensor networks.

• Networked Devices: Ideal for devices that need to send or receive data over the internet, such as weather stations, home automation systems, or remote control applications.

• Ethernet-Connected Sensors: Can be used for industrial or environmental sensors that send real-time data over the network.

• Arduino-based Web Servers: Use the ENC28J60 module to create a web server on your Arduino, allowing you to control devices or display data through a browser interface.

Limitations:

• Requires SPI Communication: The ENC28J60 module uses SPI for communication, so your microcontroller must support SPI. It may not be as fast or convenient as other network modules that use UART or Wi-Fi.

• No Built-in DHCP: The module doesn't include a built-in DHCP server, so your project will need to handle IP address allocation, either through static IP or via another method.

• 10/100 Mbps Limitation: While this is fast for most use cases, it doesn't support gigabit Ethernet speeds (1 Gbps), which may be a limitation for applications requiring very high-speed data transmission.

The ENC28J60 Ethernet LAN Network Module is an affordable and reliable solution for adding Ethernet connectivity to your microcontroller-based projects, ideal for a wide range of networked applications such as IoT, home automation, and remote sensing.
