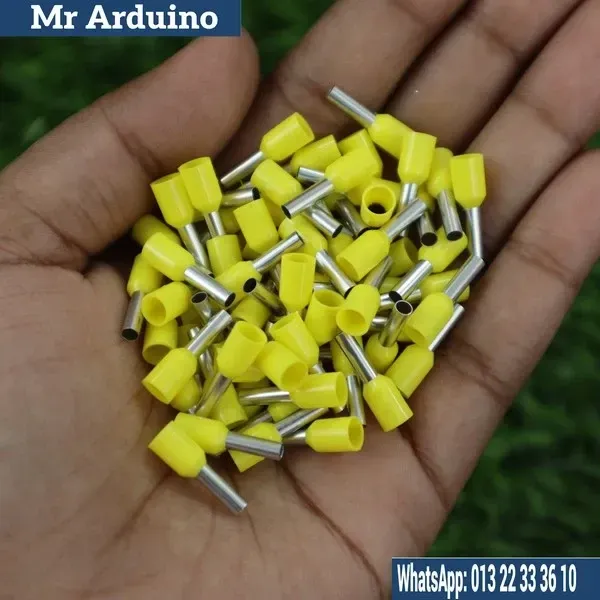

The E 2508 PVC Insulated Wire Terminal Yellow is a high-quality, durable electrical connector designed to create secure, insulated connections for electrical wiring. This terminal is ideal for medium-duty applications and features PVC insulation, which provides protection against moisture, dirt, and accidental shorts. The yellow insulation is specifically designed for 12-10 AWG wire sizes, making it perfect for electrical systems where a stable connection is needed for thicker wires.

The E 2508 model is engineered for ease of use, offering a secure connection between wires and male terminals, bolts, or studs. The flexible PVC insulation offers excellent electrical protection while being resistant to wear and tear, making it suitable for a wide range of residential, automotive, and industrial applications.

How It Works:

The E 2508 PVC Insulated Wire Terminal Yellow works by securely attaching wires to male terminals, bolts, or studs. Here’s how to use it:

1. Step 1: Strip the insulation off the wire to expose the copper conductor.

2. Step 2: Insert the exposed wire into the barrel of the wire terminal.

3. Step 3: Use a crimping tool to securely crimp the wire into the terminal, ensuring a strong mechanical bond.

4. Step 4: Slide the terminal over a male terminal, stud, or bolt that is compatible with the terminal’s hole size.

5. Step 5: Tighten the bolt or screw to fasten the terminal securely in place. The yellow PVC insulation provides both electrical protection and safety, preventing accidental shorts and contact.

Product Limitations:

• Size Compatibility: The E 2508 PVC Insulated Wire Terminal Yellow is designed for 12-10 AWG wire sizes. Using a wire gauge outside this range may result in an improper fit, and the terminal may not create a secure connection. Always ensure the wire size is compatible with the terminal.

• Current Rating: This terminal is designed for medium-duty electrical applications. For circuits that require handling higher currents or larger wire sizes, you may need a terminal with a higher current rating or larger dimensions.

• Environmental Resistance: While the PVC insulation provides basic protection against moisture and dirt, it may not be resistant to extreme environmental conditions such as high temperatures, corrosive chemicals, or extreme weather. For such conditions, a more specialized terminal may be required.

• Crimping Quality: Proper crimping is essential for ensuring a secure and reliable electrical connection. It is important to use the correct crimping tool for this terminal to avoid loose or faulty connections that could lead to electrical failures.

The E 2508 PVC Insulated Wire Terminal Yellow is a reliable, safe, and easy-to-use solution for medium-duty electrical connections. Its durable PVC insulation and compatibility with 12-10 AWG wire sizes make it ideal for use in automotive, industrial, and residential wiring systems.
