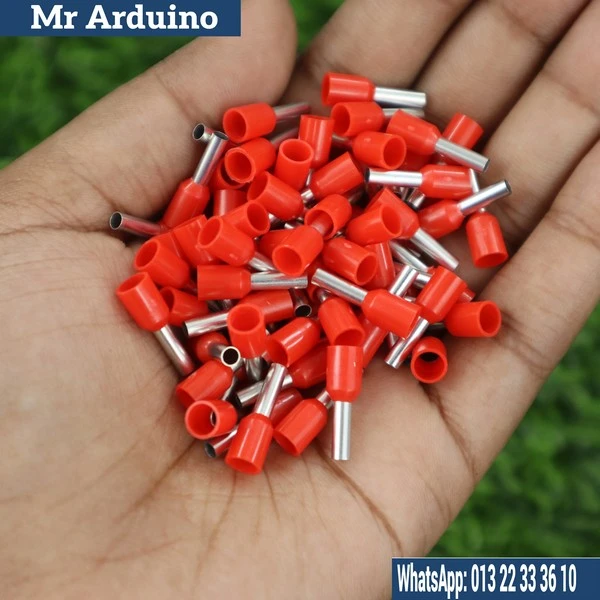

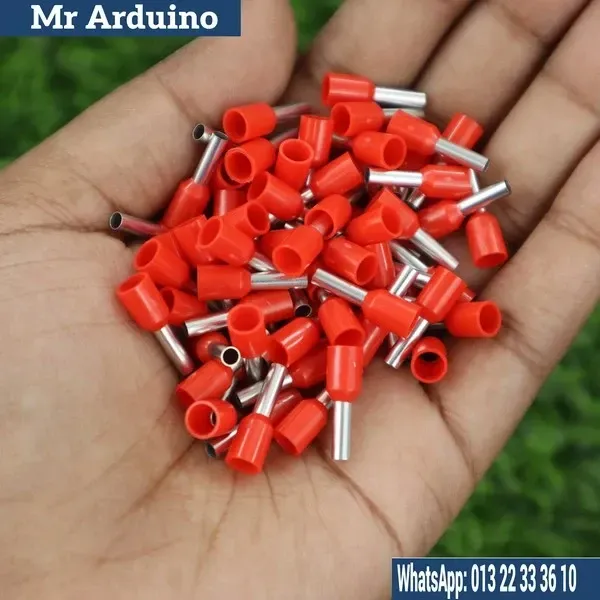

The E 2508 PVC Insulated Wire Terminal Red is a high-quality, durable electrical connector designed to provide secure and insulated connections for electrical wiring. This terminal is ideal for medium-duty applications and features PVC insulation, which provides protection from moisture, dirt, and accidental shorts. The red insulation indicates compatibility with 16-14 AWG wire sizes, making it perfect for various electrical tasks, including automotive, industrial, and household applications.

The E 2508 model is designed for ease of use, offering a stable connection between wires and male terminals or studs. The PVC insulation offers reliable electrical protection while being flexible and resistant to wear. It is widely used in various electrical systems where a strong, safe, and easily identifiable connection is necessary.

How It Works:

The E 2508 PVC Insulated Wire Terminal Red works by securely attaching wires to male terminals, bolts, or studs. Here's how to use it effectively:

1. Step 1: Strip the insulation off the wire, exposing the copper conductor.

2. Step 2: Insert the exposed copper wire into the barrel of the terminal.

3. Step 3: Use a crimping tool to secure the wire within the terminal, ensuring a strong and reliable mechanical bond between the wire and the terminal.

4. Step 4: Slide the terminal over a male terminal, stud, or bolt that fits within the appropriate size range.

5. Step 5: Tighten the bolt or screw to fasten the wire terminal securely in place. The red PVC insulation ensures protection from accidental contact and provides electrical insulation, reducing the risk of short circuits.

Product Limitations:

• Size Compatibility: The E 2508 PVC Insulated Wire Terminal Red is specifically designed for 16-14 AWG wire sizes. Using this terminal with a different wire gauge (either smaller or larger) may not provide a secure connection, so be sure to match the terminal with the appropriate wire size.

• Current Rating: This terminal is designed for medium-duty electrical applications. If you're working with high-current circuits, consider selecting a terminal with a higher current rating or a different size to handle larger wire gauges and greater loads.

• Environmental Resistance: While the PVC insulation provides basic protection from environmental factors like moisture and dirt, it is not rated for extreme conditions. For high-temperature, industrial, or outdoor applications where the terminal is exposed to harsh elements, more specialized terminals may be necessary.

• Crimping Quality: To ensure a reliable connection, use the correct crimping tool to properly crimp the wire into the terminal. A poor crimp can result in a weak or unreliable electrical connection.

The E 2508 PVC Insulated Wire Terminal Red offers an efficient, safe, and reliable solution for creating insulated connections in electrical systems. Its easy installation, strong insulation, and compatibility with standard wire sizes make it an excellent choice for medium-duty applications.
