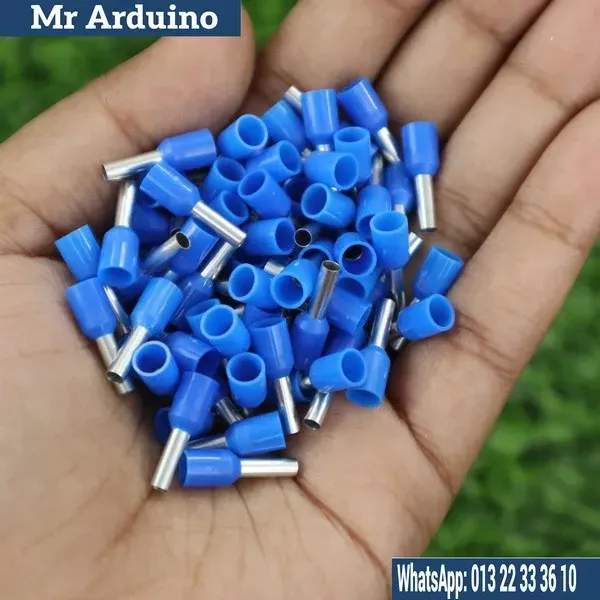

The E 2508 PVC Insulated Wire Terminal Blue is a durable and reliable electrical connector designed for creating secure and insulated connections in wiring systems. This terminal is designed for medium-duty applications and features PVC insulation, providing protection from moisture, dirt, and accidental shorts. The blue insulation is typically used for 16-14 AWG wire sizes, making it an ideal choice for applications involving these wire gauges.

The E 2508 model is engineered for ease of use and durability. It provides a stable, long-lasting electrical connection between wires and male terminals, bolts, or studs. The flexible PVC insulation is resistant to wear and provides excellent electrical protection, ensuring safety and reliability in automotive, industrial, and residential wiring systems.

How It Works:

The E 2508 PVC Insulated Wire Terminal Blue works by securely attaching wires to male terminals, studs, or bolts. Here’s how to use it:

1. Step 1: Strip the insulation from the end of the wire to expose the copper conductor.

2. Step 2: Insert the stripped wire into the barrel of the wire terminal.

3. Step 3: Use a crimping tool to securely crimp the wire into the terminal, ensuring a tight and reliable connection.

4. Step 4: Slide the terminal over a male terminal, stud, or bolt that matches the hole size.

5. Step 5: Tighten the bolt or screw to fasten the terminal securely. The blue PVC insulation provides electrical protection, preventing accidental shorts and ensuring safety during operation.

Product Limitations:

• Size Compatibility: The E 2508 PVC Insulated Wire Terminal Blue is designed for 16-14 AWG wire sizes. Using a wire outside of this range may result in an improper fit or a weak connection. Ensure that the terminal size is compatible with the wire gauge you are using.

• Current Rating: This terminal is suitable for medium-duty electrical applications. If you need a connector for circuits with higher current requirements or larger wire gauges, you may need to choose a terminal with a higher rating or different size.

• Environmental Resistance: The PVC insulation provides good protection against moisture and dirt, but it may not be suitable for extreme environments. If the terminal will be exposed to high temperatures, chemicals, or harsh outdoor conditions, consider using a terminal designed for those environments.

• Crimping Quality: A proper crimp is essential to ensure a strong, secure electrical connection. Using an appropriate crimping tool is crucial to avoid loose connections that could lead to electrical failure.

The E 2508 PVC Insulated Wire Terminal Blue offers a reliable, safe, and efficient way to create insulated electrical connections. Its durability, ease of use, and compatibility with 16-14 AWG wires make it a great choice for a wide range of wiring applications, including automotive, residential, and industrial systems.
