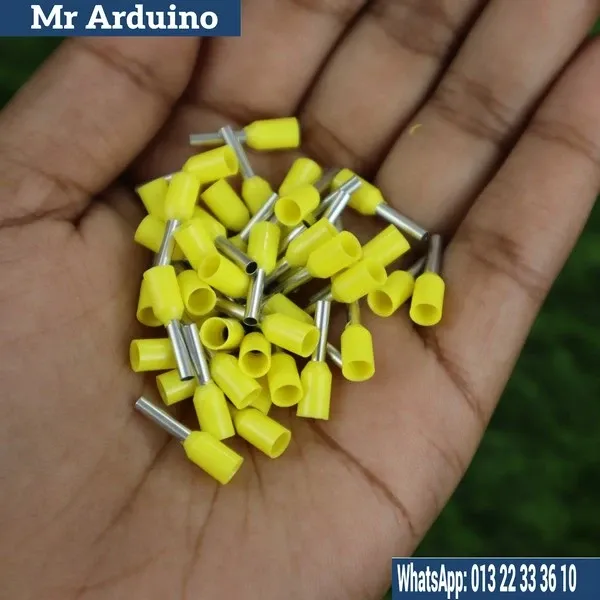

The E 1508 PVC Insulated Wire Terminal Yellow is a high-quality, durable electrical connector designed for creating secure, insulated connections in electrical circuits. This terminal features PVC insulation, which provides excellent protection against moisture, dirt, and accidental shorts. The yellow insulation indicates that it is designed to accommodate 12-10 AWG wire sizes, making it suitable for medium-duty electrical applications such as automotive, industrial, and residential wiring systems.

The E 1508 model is specifically engineered for ease of use and long-lasting performance. The terminal’s PVC insulation ensures both mechanical stability and electrical safety, offering protection for the wire connection while reducing the risk of electrical faults. This connector is ideal for creating reliable connections in a variety of environments.

How It Works:

The E 1508 PVC Insulated Wire Terminal Yellow securely connects wires to male terminals, bolts, or studs. Here’s how to use it:

1. Step 1: Strip the insulation from the end of the wire to expose the copper conductor.

2. Step 2: Insert the exposed copper wire into the barrel of the wire terminal.

3. Step 3: Use a crimping tool to securely crimp the wire into the terminal, ensuring a solid and reliable mechanical connection.

4. Step 4: Slide the terminal over a male terminal, stud, or bolt that fits the required size.

5. Step 5: Tighten the bolt or screw to secure the connection. The yellow PVC insulation provides electrical protection and helps prevent accidental contact with live terminals, reducing the risk of shorts.

Product Limitations:

• Size Compatibility: The E 1508 PVC Insulated Wire Terminal Yellow is designed for 12-10 AWG wire sizes. Using it with smaller or larger wire gauges may not provide a secure connection. It is important to ensure that the wire gauge you are using matches the terminal size.

• Current Rating: This terminal is suitable for medium-duty electrical applications. If you need to handle higher currents or larger wire gauges, you may need to select a terminal rated for those specific requirements.

• Environmental Resistance: The PVC insulation provides good protection against moisture and dirt but may not be suitable for extreme conditions. For applications exposed to high temperatures, chemicals, or harsh outdoor environments, consider using terminals designed for those conditions.

• Crimping Quality: Proper crimping is essential to ensure a strong and reliable electrical connection. Using an appropriate crimping tool and technique will ensure a secure, long-lasting connection.

The E 1508 PVC Insulated Wire Terminal Yellow offers an easy-to-use, reliable solution for creating insulated connections in electrical systems. Its compatibility with 12-10 AWG wire sizes, combined with its durable PVC insulation, makes it ideal for use in a wide range of medium-duty applications.
