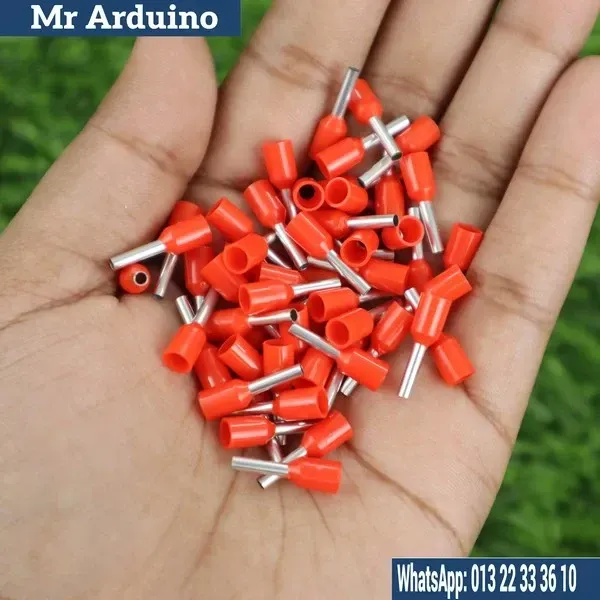

The E 1508 PVC Insulated Wire Terminal Red is a high-quality, durable electrical connector designed for creating secure, insulated connections in electrical wiring systems. This terminal is equipped with PVC insulation that offers excellent protection against environmental factors like moisture, dirt, and accidental shorts. The red insulation indicates that this terminal is intended for 16-14 AWG wire sizes, making it ideal for medium-duty electrical applications in automotive, residential, and industrial wiring systems.

The E 1508 model is engineered for easy installation and long-lasting performance, providing a reliable and safe connection. Its PVC insulation is flexible, resistant to wear, and ensures electrical safety by preventing accidental contact with conductive materials. This connector is perfect for creating stable connections where wire identification and protection are crucial.

How It Works:

The E 1508 PVC Insulated Wire Terminal Red works by securely connecting wires to male terminals, bolts, or studs. Here’s how to use it:

1. Step 1: Strip the insulation from the wire end to expose the copper conductor.

2. Step 2: Insert the exposed copper wire into the barrel of the wire terminal.

3. Step 3: Use a crimping tool to securely crimp the wire into the terminal, ensuring a solid and reliable mechanical connection.

4. Step 4: Slide the terminal over a male terminal, stud, or bolt that fits the required size.

5. Step 5: Tighten the bolt or screw to fasten the terminal securely. The red PVC insulation provides electrical protection, ensuring safety by preventing accidental shorts and electrical contact.

Product Limitations:

• Size Compatibility: The E 1508 PVC Insulated Wire Terminal Red is designed for 16-14 AWG wire sizes. Using a wire gauge outside of this range may lead to a loose or improper connection. Always ensure the wire size matches the terminal for a secure fit.

• Current Rating: This terminal is designed for medium-duty electrical applications. For circuits that carry higher current loads or use larger wire gauges, consider using a terminal that is rated for those requirements.

• Environmental Resistance: While the PVC insulation provides adequate protection against moisture and dirt, it may not be suitable for extreme temperatures or corrosive environments. For harsh conditions, consider using terminals designed for those specific environments.

• Crimping Quality: To ensure a reliable connection, use an appropriate crimping tool. A poor crimp may result in a weak or faulty connection, which could cause electrical failures.

The E 1508 PVC Insulated Wire Terminal Red is an excellent choice for creating reliable and insulated electrical connections in medium-duty applications. Its compatibility with 16-14 AWG wire sizes and durable PVC insulation make it a versatile and safe option for a wide range of wiring needs.
