The Arduino CNC Shield is a popular expansion board designed to control CNC machines and 3D printers, providing an easy and effective way to interface with stepper motors and other components. It is compatible with various Arduino boards (such as Arduino Uno) and offers a simple way to control multiple stepper motors with minimal wiring and effort. The CNC shield supports up to four A4988 stepper motor drivers, which can be used to control the precise movement of stepper motors in applications like CNC milling, laser engraving, and 3D printing.

How It Works:

1. Arduino Integration: The CNC shield is designed to work seamlessly with an Arduino board, typically an Arduino Uno. It plugs directly onto the Arduino, allowing you to control it through the Arduino’s software platform.

2. Stepper Motor Control: The main function of the CNC shield is to control up to four stepper motors using A4988 stepper motor driver modules. These drivers are responsible for driving the stepper motors based on signals received from the Arduino, allowing for precise and accurate movement in X, Y, Z, and sometimes additional axes.

3. A4988 Stepper Motor Driver: The A4988 is a popular stepper motor driver IC that allows for controlling the speed and direction of a stepper motor. It uses microstepping to improve the accuracy and smoothness of the motor’s movement, making it suitable for applications requiring high precision. The A4988 communicates with the Arduino board via simple control signals, including step and direction inputs.

4. Microstepping Control: The A4988 supports various microstepping modes, such as full-step, half-step, quarter-step, eighth-step, and sixteenth-step. This allows for smoother motor operation and finer control over movement, which is essential for tasks like CNC machining and 3D printing.

5. Power and Safety: The CNC Shield is designed to manage the power requirements of stepper motors by providing the necessary current and voltage. The A4988 stepper motor driver modules are also equipped with built-in over-temperature and over-current protection, ensuring that the components are safeguarded from electrical issues.

6. Wiring and Setup: Each A4988 driver module is inserted into one of the available slots on the CNC shield, where it connects to the shield’s power and signal pins. The motors are connected to the corresponding pins on the driver module. The CNC shield also has input pins for endstops, cooling fans, and other peripherals commonly found in CNC systems and 3D printers.

Features:

• Up to 4 Stepper Motor Control: The shield supports up to four A4988 stepper motor drivers, allowing for multi-axis control in CNC and 3D printer applications (typically for X, Y, Z, and an optional A-axis).
• Microstepping: With support for full, half, quarter, eighth, and sixteenth microstepping, the shield enables smooth and precise motor movement.
• Easy Arduino Integration: The CNC shield connects directly to an Arduino board (usually Arduino Uno), making it easy to control with the Arduino IDE and compatible software.
• Plug-and-Play Compatibility: The stepper motor driver modules are designed to be easily inserted into the CNC shield, simplifying wiring and setup.
• External Power Supply: The CNC shield typically uses an external power supply for the stepper motors, allowing you to power motors with higher voltage requirements.
• Control Inputs for Additional Components: The shield includes inputs for limit switches (endstops), cooling fans, and other accessories, providing a complete solution for controlling CNC machines and 3D printers.
• Current Control and Protection: The A4988 modules have current control capabilities and built-in protections for over-temperature, over-current, and under-voltage conditions, ensuring the safety of the motors and drivers.

Applications:

• CNC Machines: Ideal for controlling 3-axis CNC machines, such as milling machines, lathes, or routers, by providing precise motor control.
• 3D Printers: Commonly used in 3D printers to control the stepper motors that drive the extruder, print bed, and other mechanical movements.
• Laser Engravers: The shield can also be used in laser engraving machines for controlling the motion of the laser head and bed.
• Robotics Projects: Used in robotics to control multiple stepper motors for various movements.
• Automation Systems: Can be used for building automated systems requiring precise motion control.

Limitations:

• Current Limits of the A4988: The A4988 can typically supply a maximum of 2A per motor (with proper cooling). If more current is needed, you may need to use other stepper motor drivers like the DRV8825, which can handle higher currents.
• External Power Supply Required: The CNC shield requires an external power supply for the stepper motors, which means you need to ensure that the voltage and current ratings match your stepper motors’ requirements.
• Limited to Four Motors: The CNC shield can control a maximum of four stepper motors. For projects requiring more than four motors, additional shields or other motor control solutions may be necessary.
• Stepper Motor Type Compatibility: The shield is designed to work with bipolar stepper motors, which are commonly used in CNC and 3D printing applications. It may not be compatible with unipolar stepper motors without modification.

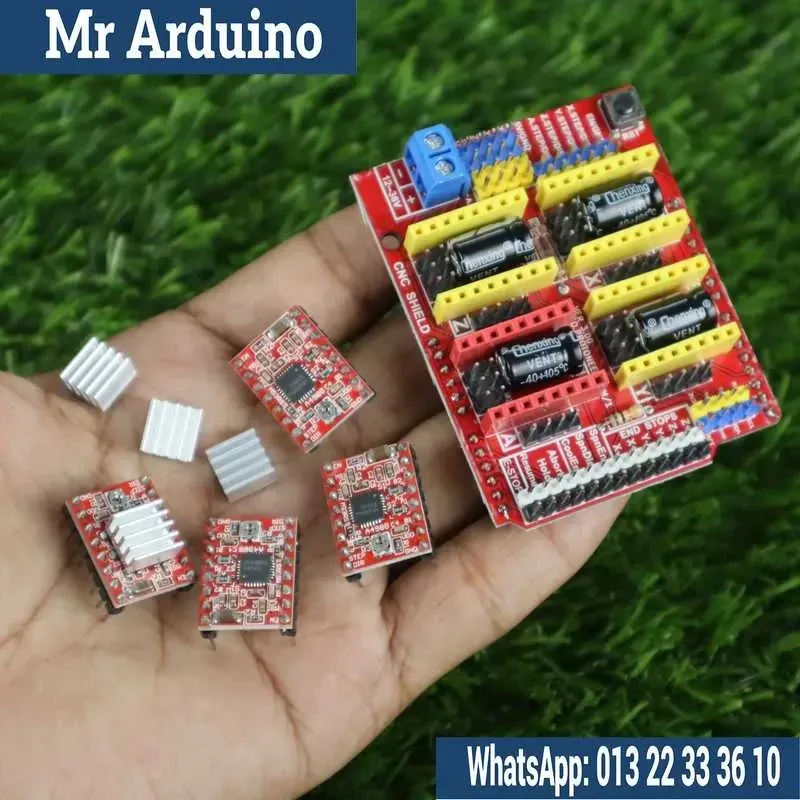

The Arduino CNC Shield with 4 Pieces A4988 Stepper Motor Driver Module is an essential tool for controlling multi-axis stepper motor systems, making it a must-have for building or upgrading CNC machines, 3D printers, and other automated systems that require precise motion control.
