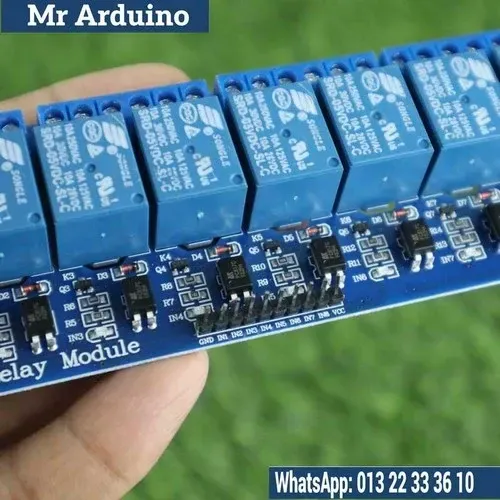

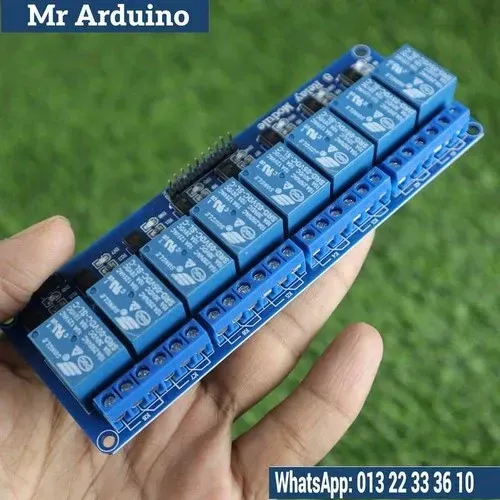

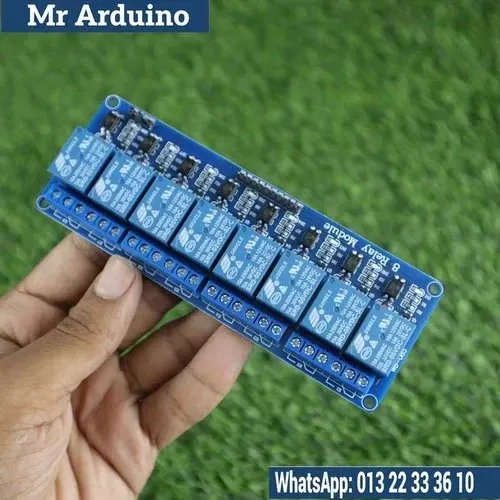

The 8 Channel 5V Relay Board Module is a versatile and powerful relay module designed to control multiple high-voltage devices with a low-voltage signal. Operating at a 5V DC input, this module includes 8 relays, allowing you to control up to 8 separate devices simultaneously. It’s a perfect solution for controlling AC or DC appliances, motors, lights, and other electrical components, while being controlled by microcontrollers like Arduino, Raspberry Pi, or other 5V logic systems.

The module is designed for easy integration into a variety of electronic projects and systems. Each relay on the board provides isolation between the low-voltage control circuit and the high-voltage switching circuit, offering both protection and reliability. The board features clear labeling and convenient header pins for straightforward wiring.

Key Features:

• Control Voltage: 5V DC, compatible with most microcontrollers such as Arduino and Raspberry Pi

• Relay Count: 8 Channels – Control up to 8 devices at once

• Relay Type: SPDT (Single Pole Double Throw) or SPST (Single Pole Single Throw) for each relay, depending on the model

• Current Rating: Supports up to 10A per relay channel for switching high-power devices (check specific relay ratings)

• Isolation: Provides optical isolation between the control circuit and the high-voltage devices

• Easy Integration: Simple connections using Jumper Pins for each relay channel

• LED Indicators for each relay to show activation status

Applications:

• Home automation systems to control multiple electrical devices like lights, fans, and appliances

• Industrial automation for managing motors, solenoids, or other heavy-duty equipment

• DIY electronics projects for controlling high-voltage or high-current components using a microcontroller

• Smart home systems and IoT projects requiring reliable relay control

• Arduino or Raspberry Pi-based projects needing multiple device control channels

How It Works: The 8 Channel 5V Relay Board Module operates by receiving a 5V DC control signal from a microcontroller, such as an Arduino or Raspberry Pi, for each of the 8 relay channels. Each relay on the module has a single control input that triggers the relay's internal switch. When the relay is activated, the NO (Normally Open) contact closes, allowing current to flow through the connected device, thus turning it on. When the control signal is off, the relay returns to its default state, opening the circuit and turning the device off.

The optical isolation built into the module ensures that the high-voltage and low-voltage sides of the circuit are electrically isolated, preventing any damage or interference between them. Each relay channel can control different types of electrical devices, from small appliances to high-power industrial equipment, by simply wiring the module to the appropriate devices.

Product Limitations:

• Voltage Rating: Each relay channel is typically rated for AC 250V or DC 30V (depending on the specific relay), so the connected devices must not exceed these ratings.

• Current Rating: Each relay can typically switch up to 10A of current, but high-power devices should not exceed this limit to avoid damaging the relay or the board.

• Relay Switching: Frequent switching of high-power devices can lead to wear on the mechanical contacts of the relays, reducing their operational lifespan over time.

• Control Voltage: The module requires a stable 5V DC control voltage, and it may not work properly with higher or lower control voltages.

This 8 Channel 5V Relay Board Module is an essential tool for any project that requires control over multiple high-power devices through a microcontroller. Its ease of use, reliability, and flexibility make it a popular choice for home automation, industrial control, and DIY electronics.
