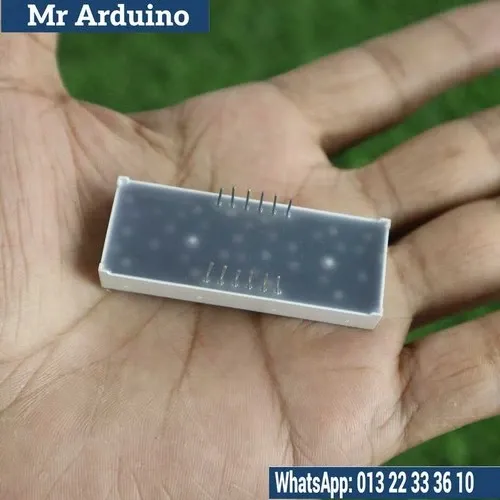

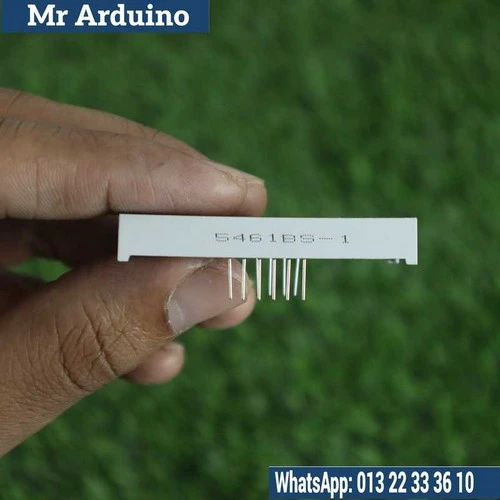

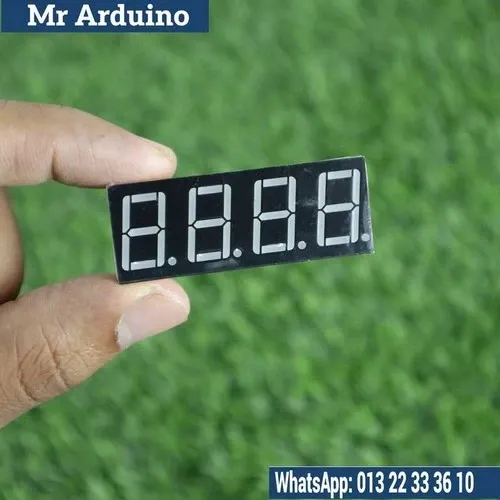

The 7 Segment 4 Digit 5461BS CA is a 4-digit LED display that uses 7-segment LEDs to display numeric values or characters. It is commonly used in various electronic projects where numerical data needs to be displayed, such as clocks, thermometers, counters, voltmeters, and other systems that require real-time numeric output. The display module features 4 individual digits, each composed of 7 segments (labeled a to g) that can be individually lit to form numbers from 0 to 9.

The 5461BS CA is designed for ease of use in digital electronics and microcontroller-based systems like Arduino, Raspberry Pi, or other embedded platforms. The digits are typically controlled through a common cathode or common anode configuration, with the CA in the name signifying a common anode configuration for this module.

How It Works: The 7 Segment 4 Digit 5461BS CA operates by controlling individual segments of each digit to form numbers. Each of the 7 segments of the LED display can be turned on or off to create the desired digit. By manipulating the individual segments using a microcontroller (such as Arduino), the module can display any number from 0000 to 9999, and in some cases, characters as well.

• Common Anode Configuration: In the common anode configuration, all the anode pins of the 7-segment LEDs are connected together to the positive voltage supply (e.g., +5V). The cathode pins of the individual segments are controlled by the microcontroller to turn each segment on or off. To light up a segment, the corresponding cathode pin is set to LOW (ground), and the anode is HIGH (positive voltage).
• Digit Multiplexing: Since this module has multiple digits, digit multiplexing is used to light up one digit at a time very quickly, making it appear as if all four digits are lit simultaneously. This multiplexing technique reduces the number of pins required for controlling the display.

Key Features:

• 4-Digit Display: Can display numbers or characters using four individual 7-segment digits.
• Common Anode Configuration: All segments share a common anode, with individual cathodes controlled to light up the segments.
• Compact and Easy to Use: Easy integration into electronic projects and systems.
• Wide Range of Applications: Suitable for clocks, counters, thermometers, voltmeters, and other devices requiring numeric output.
• Clear and Bright LED Display: Each segment is brightly lit for easy visibility, even in low-light conditions.
• Efficient Power Consumption: Consumes low power when operating in multiplexing mode.
• Versatile Control: Compatible with various microcontrollers and development platforms like Arduino, Raspberry Pi, and others.

Specifications:

• Number of Digits: 4
• Segment Type: 7-segment LED display (each digit has 7 segments)
• Configuration: Common Anode (CA)
• Voltage: Typically operates at 5V DC (can vary depending on the module)
• Current Per Segment: Typically around 20mA per segment (can vary based on the brightness level)
• Digit Height: Typically 0.56 inches or 14.22mm (common for standard 7-segment displays)
• Color: Usually red, but available in other colors (green, blue, yellow, etc.)
• Pinout: Typically, there are 10 pins — 4 pins for the common anode and 7 pins for each of the individual segments of each digit.
• Control: Requires control through a microcontroller using a multiplexing technique or specialized driver ICs.

Applications:

• Digital Clocks: Displaying time in hours, minutes, and seconds.
• Counters: For counting objects, events, or processes in industrial and hobbyist applications.
• Temperature Displays: Used in thermometer circuits to show temperature readings.
• Voltage Meters: Displaying voltage measurements in DIY electronic projects or multimeters.
• Frequency Meters: Displaying frequencies in testing or lab setups.
• DIY Projects and Prototyping: For showing numeric data in embedded systems, Arduino projects, or other development applications.

Limitations:

• Brightness: LED brightness can be affected by the driving current, which can limit the visibility in bright environments or long-distance displays.
• Multiplexing Requirement: To operate multiple digits, multiplexing is required, which can introduce flickering or reduce the refresh rate, especially when using multiple digits.
• Limited Character Display: This display is limited to showing numeric values (0-9). While certain letters can be represented, it’s not designed for alphanumeric text display (i.e., limited to numbers and a few characters).
• Current Handling: Each individual segment draws 20mA, and when multiple segments are lit, the total current can add up. It’s essential to ensure that your power supply can handle the load.

The 7 Segment 4 Digit 5461BS CA is an excellent solution for projects that require a straightforward way to display numbers or simple characters. Its easy integration with microcontrollers, clear display, and versatility make it a popular choice for DIY electronics, prototyping, and embedded systems. Whether you’re building a digita
