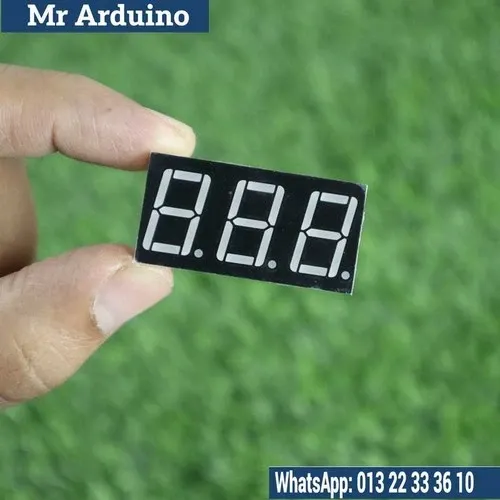

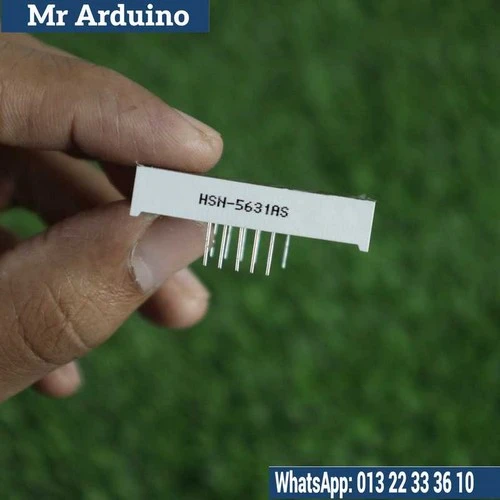

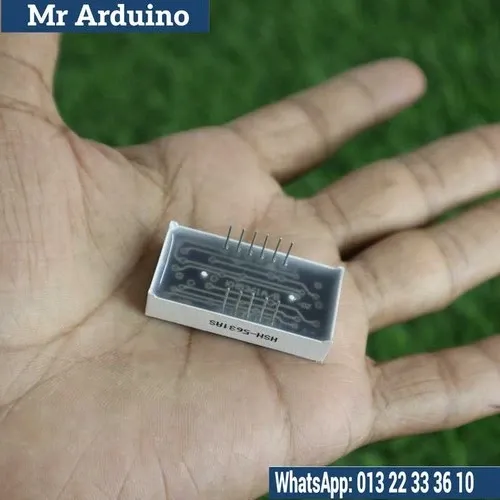

The 7 Segment 3 Digit 5631AS CC is a 3-digit, 7-segment display module designed to showcase numeric values ranging from 000 to 999. Each digit is composed of 7 segments arranged in the traditional 7-segment pattern. The display is configured in a common cathode arrangement, where the cathode pin is shared by all the segments of each digit, and individual anode pins control the segments. This makes it suitable for various applications where numerical values need to be clearly displayed, such as clocks, counters, measuring instruments, or digital indicators.

This module is designed to be easily interfaced with microcontrollers like Arduino or Raspberry Pi, making it ideal for use in both DIY projects and commercial applications. Its compact design and bright LED segments allow for good visibility, even in low-light environments.

How It Works:

1. Common Cathode Configuration: In this configuration, the cathode pin is shared by all the segments. To light up a specific segment, a positive voltage is applied to the individual anode pins of the segments.
2. Digit Control: Each of the three digits has its own digit control pins. When a digit is selected, the corresponding 7-segment array is lit according to the number you wish to display.
3. Multiplexing: The digits are displayed one at a time using a technique called multiplexing. The microcontroller controls one digit at a time and cycles through all the digits so rapidly (faster than the human eye can perceive) that it appears as though all digits are lit simultaneously.
4. Displaying Numbers: The segments are lit in various combinations to form numbers from 0 to 9. For example, to display the number '8', all segments of a digit are lit up, while to display '1', only segments b and c will be lit.

Key Features:

• 3 Digit Display: Displays three digits, allowing for a wide range of numerical output (from 000 to 999).
• 7 Segment LEDs: Each digit is represented by 7 individual LEDs, providing clear visibility and the ability to show numbers from 0 to 9.
• Common Cathode Configuration: The common cathode design makes the display suitable for easy interfacing with microcontrollers and driver ICs.
• Multiplexing Supported: The display supports multiplexing, meaning only one digit needs to be activated at a time, reducing the number of pins needed to control the display.
• Compact Design: Small and space-efficient, making it ideal for use in projects where size constraints are important.
• High Brightness: The LEDs used are bright enough for use in a wide variety of environments, ensuring readability even in low light.
• Versatile Use: Suitable for use in a wide range of applications, from clocks to measuring instruments and digital counters.

Specifications:

• Digit Type: 3-Digit 7 Segment Display
• Display Type: Common Cathode (shared cathode for all segments)
• LED Color: Typically Red, but other colors such as Green, Yellow, and Blue may be available depending on the version.
• Segment Count: 7 segments per digit (labeled a, b, c, d, e, f, g)
• Operating Voltage: Typically 5V, which is compatible with most microcontrollers like Arduino.
• Current Rating: Each segment typically consumes 20mA when lit. The total current consumption will depend on the number of segments lit across all digits.
• Pin Configuration:
  • 3 Digit Control Pins (for selecting which digit to display)
  • 7 Segment Pins (for controlling individual segments for each digit)
  • Common Cathode Pin (shared cathode for all segments)
• Dimensions: Typically around 40mm x 20mm x 10mm for the 3-digit module.
• Viewing Angle: Typically around 45° to 60°, providing good visibility at most angles.
• Operating Temperature: Typically -20°C to 85°C, suitable for a wide range of environmental conditions.
• Color Options: Usually comes in Red, but other colors may be available, depending on the version.

Applications:

• Clocks and Timers: Perfect for digital clocks, countdown timers, or any project that requires time display.
• Counters: Ideal for event counters, production counters, scoreboards, or similar applications where numeric values are needed.
• Measuring Instruments: Used in devices like voltage meters, current meters, temperature gauges, and other measurement tools that require numeric displays.
• Digital Displays: Can be used as part of digital readouts for systems that need to display values such as speed, distance, or other measurements.
• DIY Projects: Often used in Arduino-based projects, Raspberry Pi setups, and other electronics projects where a 3-digit numeric display is needed.
• Industrial Applications: Suitable for use in industrial machines, control panels, or machine displays that need to show numerical data.
• Home Appliances: Can be integrated into appliance displays such as microwaves, ovens, or thermometers.

Limitations:

• Limited to Numeric Display: While it can display digits 0-9, the 7-segment display is not suitable for displaying more complex alphanumeric characters (though some characters like A, b, E, F can be represented).
• Multiplexing Required: To display all three digits, multiplexing is required, which means the microcontroller needs to manage the cycling between the digits.
• Current Draw: The total current draw can increase depending on the number of segments lit, so high-power applications may require additional components like current-limiting resistors or drivers.
• Size Limitation: As a 3-digit display, it is limited in terms of the numerical range (from 000 to 999). For larger displays, you would need a larger display module.

Conclusion: The 7 Segment 3 Digit 5631AS CC is a reliable and compact display solution for projects that require a 3-digit numeric display. Whether you're building a digital clock, a counter, a sensor display, or any application that needs to show numeric data, this module offers clear visibility with bright LED segments. Its common cathode configuration and ability to use multiplexing make it easy to integrate into various systems, particularly those using Arduino or Raspberry Pi. If you need a space-saving, efficient, and easy-to-use display module for numeric values, the 5631AS CC is an excellent choice for your project.
