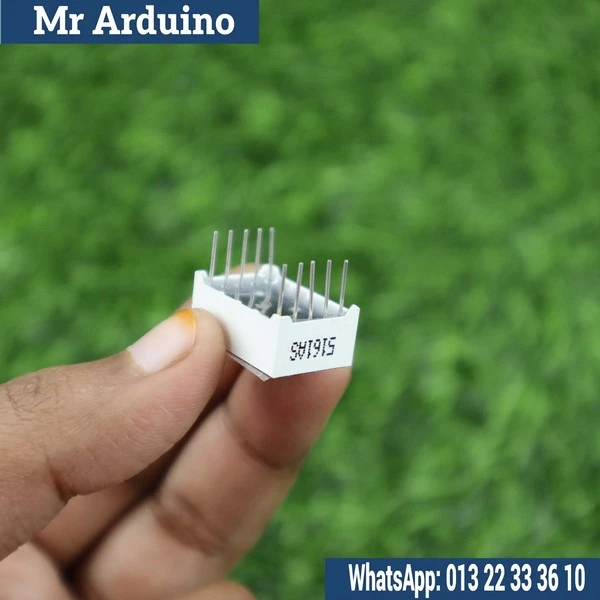

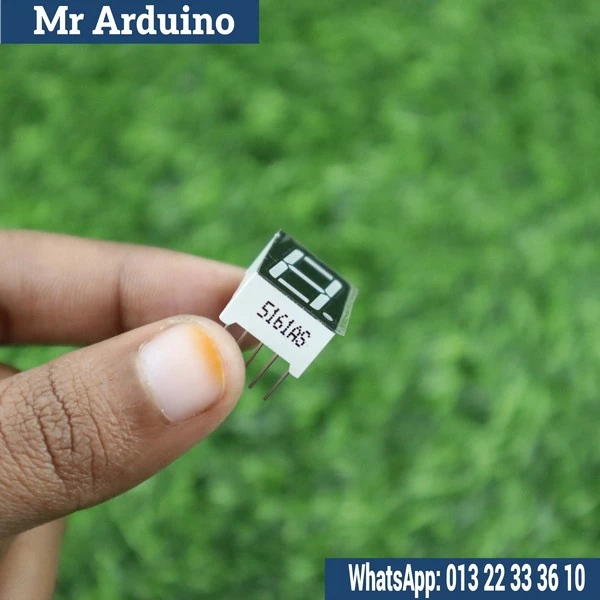

The 7 Segment 1 Digit 5161AS CC is a single-digit 7-segment display used to display numerical values from 0 to 9 in a clear, easy-to-read format. It features a common cathode configuration, which is commonly used in digital circuits where the negative (cathode) pin is shared across all segments, and each segment is activated by supplying a positive voltage to the corresponding anode. This display is ideal for use in digital readouts, counters, clocks, and measurement devices.

Features:

• Single Digit Display: Displays one numerical digit, allowing for clear and simple numeric output from 0 to 9.

• 7 Segment Configuration: The display uses 7 individual segments (labeled a through g) to form the digits. By selectively turning on specific segments, a wide range of numbers can be displayed.

• Common Cathode: The 5161AS CC model is a common cathode display, meaning all the cathodes (negative terminals) of the segments are connected to a single pin, and the anodes (positive terminals) are controlled individually to turn on the segments.

• Bright LED Segments: Features bright LED segments that ensure the digits are visible even in varying lighting conditions.

• Compact Size: The single-digit format makes it perfect for small displays or applications requiring only one numeric output.

• Low Power Consumption: LED-based technology makes this display energy-efficient, suitable for battery-powered applications.

How It Works:

The 7 Segment 1 Digit 5161AS CC display uses a set of 7 LED segments to form each number. The common cathode configuration means that the negative side of all the segments is shared, and each segment is activated by applying positive voltage to the corresponding anode pin.

1. Common Cathode: The common cathode pin is connected to ground, while each of the 7 individual segment pins is connected to an anode. The segment will light up when the anode pin is supplied with positive voltage.

2. Displaying Numbers: Each of the 7 segments can be individually turned on to form numbers. For example:

   • To display "1", only the two segments on the right (segments b and c) are lit.

   • To display "8", all 7 segments (a, b, c, d, e, f, g) will be lit.

3. Multiplexing (if applicable): In some circuits, if multiple digits are used in a display, the digits may be multiplexed (switched rapidly in sequence) to create the illusion that all digits are being displayed simultaneously. However, for a single-digit display, multiplexing is not needed.

Product Limitations:

• Single Digit Display: This display can only show one digit at a time. To display a number larger than 9, multiple single-digit displays need to be used.

• Current Limitation: It is essential to use current-limiting resistors to prevent excessive current flow through the segments, which could damage the LEDs.

• Visibility in Direct Light: While generally bright, the visibility of the display may be affected by direct sunlight or bright environments. In these cases, careful placement or design may be required to ensure readability.

Applications:

• Counters: Perfect for use in event counters or digital counters where only a single-digit output is required at any given time.

• Clocks and Timers: Used in digital clocks or timing devices that display single-digit time values such as minutes or seconds.

• Measurement Devices: Ideal for displaying measurement values such as temperature, voltage, or other units that can be shown as single digits in certain contexts.

• Toys and Gadgets: Frequently used in electronic toys, gadgets, and DIY electronics projects where a simple numeric display is needed.

• Home Appliances: Commonly found in household devices like microwaves, refrigerators, or other electronics that use single-digit displays for settings or readings.

The 7 Segment 1 Digit 5161AS CC is a compact and efficient solution for displaying a single digit in various applications. Its common cathode configuration, bright LED segments, and energy efficiency make it a perfect choice for simple digital readouts, counters, clocks, and other devices that require a one-digit numeric display.
