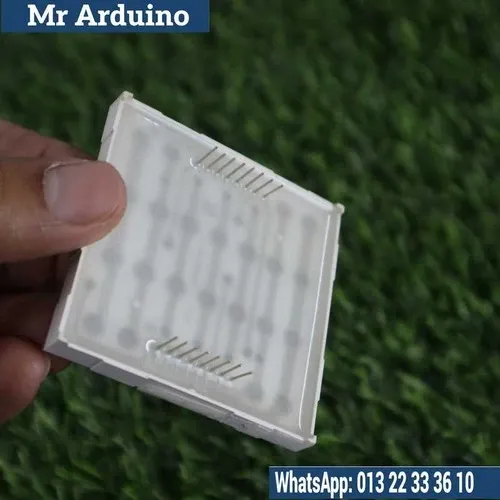

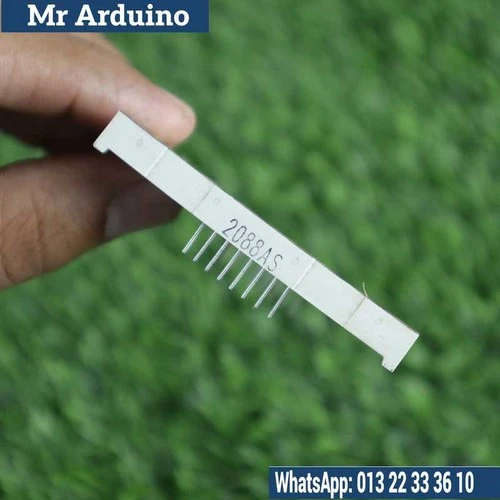

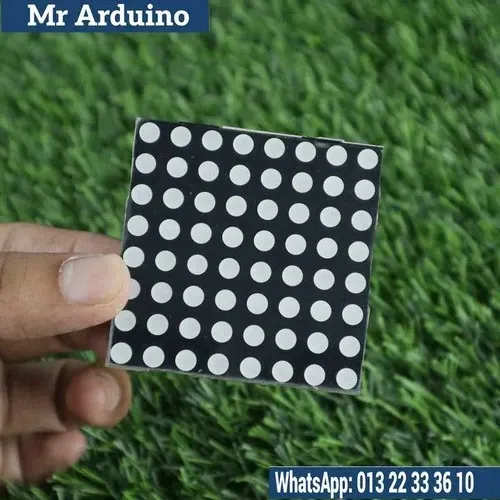

The 5mm LED Dot Matrix 8x8 is a versatile and compact display module that features an 8x8 grid of 5mm LEDs. This module contains 64 individual LEDs, arranged in an 8x8 matrix, which can be controlled to display custom patterns, numbers, letters, or even animations. It is commonly used in DIY projects, electronic displays, and visual output applications where you need a small but effective way to show data or graphics.

Each LED in the matrix can be controlled independently to create a variety of designs or dynamic visual effects. This display is ideal for applications like signage, clocks, scoreboards, or any project requiring a pixel-based visual output. The 5mm LEDs provide bright, clear displays, and the matrix is usually available in red, green, or blue colors depending on the specific model.

Key Features:

• 8x8 LED Matrix: A total of 64 LEDs arranged in an 8x8 grid, providing a compact and highly customizable display.
• 5mm LEDs: The individual 5mm LEDs offer a balanced brightness suitable for indoor applications, with good visibility from a short to medium distance.
• Individual Control: Each LED in the matrix can be independently controlled, allowing for the creation of custom patterns, numbers, letters, or animations.
• Common Cathode/Anode Options: The matrix can be found in both common cathode and common anode configurations, allowing for different types of control and wiring setups depending on your project’s requirements.
• Compact and Modular: The 8x8 matrix is small and easy to integrate into various Arduino and Raspberry Pi projects, allowing for creative applications in a limited space.
• Affordable: Ideal for hobbyists and students, it provides a low-cost, high-impact way to display information.

How It Works: The 5mm LED Dot Matrix 8x8 is typically controlled through a multiplexing technique. Instead of powering all 64 LEDs at once, the display lights up one row (or column) at a time and switches between them rapidly. This creates the illusion of a full grid of lit LEDs when in reality only a few rows or columns are lit at any given time.

• Row and Column Control: The matrix is controlled by addressing both rows and columns. When a particular row and column are activated simultaneously, the corresponding LED will light up.
• Common Cathode/Anode Configuration: In a common cathode configuration, the negative leg of the LEDs in each column is connected to a common cathode pin, while in a common anode configuration, the positive leg of each row is connected to a common anode pin. The corresponding column or row is then powered through a microcontroller (like an Arduino or Raspberry Pi), allowing you to control which LEDs light up.
• Display Control: By sending signals to the appropriate rows and columns, the LEDs can be switched on or off in a sequence, creating patterns, text, or animations. External drivers or shift registers may be used to control the matrix efficiently if more pins are needed.

Limitations:

• Limited Resolution: The 8x8 matrix provides 64 LEDs, which is fairly limited compared to larger matrix displays, making it unsuitable for displaying detailed images or very small text.
• Brightness: The 5mm LEDs are adequate for typical indoor applications, but may not be as bright as larger LEDs, especially when viewed from a distance or in bright environments.
• Multiplexing Limitations: Since the display uses multiplexing, there may be slight flickering visible to the human eye, especially at lower refresh rates.
• Power Consumption: While relatively low, driving a large number of LEDs simultaneously, especially in a high-intensity configuration, can draw more power and may require additional power management components for larger setups.

The 5mm LED Dot Matrix 8x8 is ideal for projects that require compact and customizable displays. It is commonly used in Arduino and Raspberry Pi projects for visual outputs such as scrolling text, icons, or dynamic patterns. Its versatility, ease of use, and low cost make it a popular choice for hobbyists, makers, and students in the world of electronics and DIY displays.
