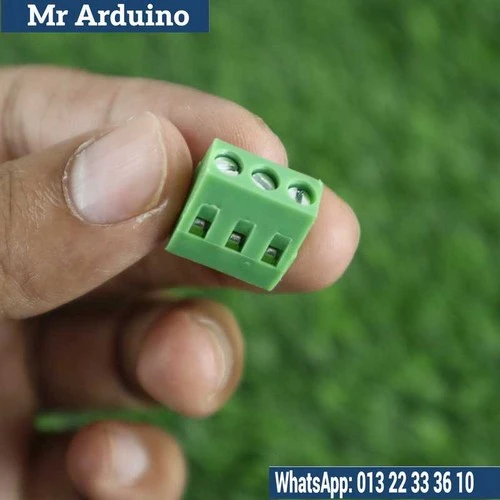

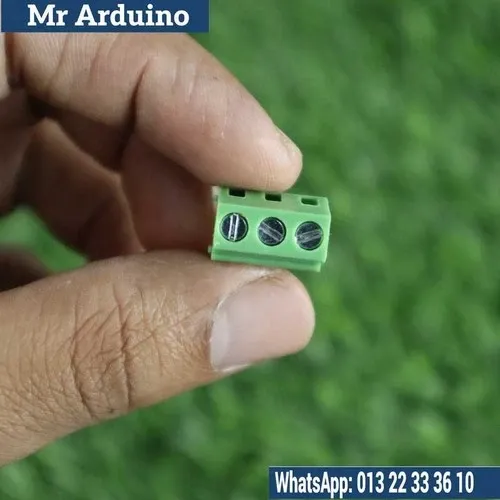

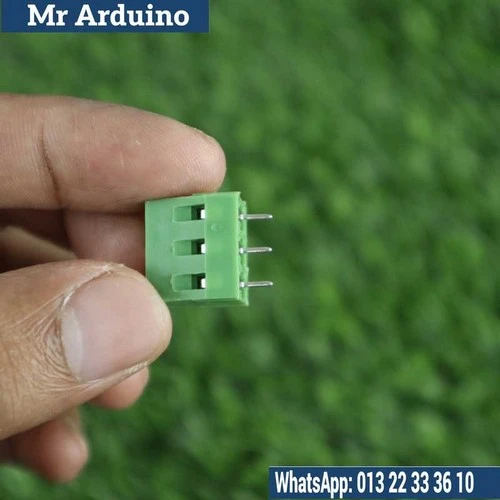

The 3 Pin Green Connector PCB Terminal Block is a connector used for easy and secure connections between wires and printed circuit boards (PCBs). It features three pins and is commonly used in electrical circuits for making reliable connections, especially in applications where quick wire termination and easy installation are important. This terminal block is ideal for use in low to medium power systems and is often found in devices such as power supplies, lighting systems, motor controllers, and industrial equipment.

The green color of the connector is a standard in many terminal blocks, indicating its use for general electrical applications. It is designed to accept stranded or solid wires and provides a secure and stable connection with the PCB. The screw-type terminal block ensures a tight grip on the wire, preventing loose connections and ensuring long-term reliability in the circuit.

How It Works: The 3 Pin Green Connector PCB Terminal Block operates by providing a simple and effective method of connecting external wires to the PCB. Here's how it works:

1. Wire Insertion: The user inserts the stripped ends of the wires into the terminals of the block.
2. Screwing Mechanism: Once the wires are placed in the terminal block, the screws are tightened to secure the wires in place. This provides a solid connection to the PCB, ensuring no loose or intermittent connections.
3. PCB Mounting: The terminal block is designed with pins that are soldered to the PCB, making the connection between the external wires and the internal circuitry of the device.
4. Secure Connection: The screw terminal provides a reliable, stable connection, ideal for environments where vibration or movement may otherwise cause less secure wire connections.

Key Features:

• 3 Pin Configuration: Ideal for circuits requiring three separate connections to the PCB, such as power, ground, and signal connections in low to medium-power applications.
• Screw Terminals: Uses a screw-tightened mechanism to ensure that the wires are securely held in place, providing a strong electrical connection and mechanical stability.
• Green Color: Commonly used in general-purpose electrical connections, the green color of the terminal block helps in identifying it as a standard connection block.
• Versatile Use: Suitable for use in various electronic projects, industrial applications, and power distribution systems.
• Easy Integration: Designed for through-hole mounting, which allows easy soldering onto PCBs.
• Secure Wire Termination: Accommodates both solid and stranded wires, ensuring a reliable connection in both types of wiring.
• Durable and Long-lasting: Made of high-quality plastic and metal materials, the terminal block is heat-resistant and built to last through regular use.

Specifications:

• Pin Count: 3 Pins.
• Wire Range: Compatible with wires typically 0.5mm² to 2.5mm² in cross-sectional area.
• Max Voltage Rating: Typically rated for 300V (depending on the manufacturer and specific product model).
• Max Current Rating: Usually rated for up to 10A, making it suitable for low to medium current applications.
• Material: Plastic Housing (typically flame-retardant material such as PA66) and metal contacts (typically brass or copper).
• Mounting Type: Through-hole for easy soldering onto PCBs.
• Color: Green, which is standard for general-purpose terminal blocks.
• Temperature Range: Typically operates within a temperature range of -20°C to 85°C.
• Pin Pitch: Standard 5mm pin spacing, making it compatible with many PCB designs.
• Dimensions: Typically around 18mm x 11mm x 9mm, compact for integration into tight spaces.

Applications:

• Power Distribution: Widely used for power input connections in various electronic devices and systems, such as power supplies, motors, and LED drivers.
• Industrial Equipment: Often found in industrial control systems to connect wiring for sensors, actuators, and other equipment to the control PCB.
• Home Appliances: Common in small appliances and consumer electronics for internal wiring connections.
• Automotive Electronics: Used for connecting components in automotive systems or other vehicle electronics.
• Prototyping Projects: Ideal for use in DIY projects, Arduino circuits, and other prototyping work where secure and easy wire connections are necessary.
• Lighting Systems: Can be used in LED strips and lighting controls for both residential and commercial applications.
• Communication Systems: Often used for connecting wires in telecommunication systems, audio equipment, or networking devices.

Limitations:

• Current Limitation: The terminal block is rated for up to 10A. For high-current applications, a larger terminal block with higher current handling capacity may be required.
• Voltage Limitation: Typically rated for up to 300V, so it's not suitable for use in high-voltage circuits beyond this rating.
• Fixed Pin Count: The terminal block is designed for a 3-pin configuration, so it is not suitable for circuits requiring more or fewer connections.
• Requires Soldering: Needs to be soldered onto a PCB for installation, making it unsuitable for surface-mount applications.

The 3 Pin Green Connector PCB Terminal Block is a versatile, reliable, and efficient solution for making secure wire connections in low to medium-power electrical circuits. Its screw-terminal design ensures a strong, stable connection, and its 3-pin configuration makes it ideal for a wide range of applications, from power supplies to industrial controls. Whether you're working on home electronics, DIY projects, or professional systems, this terminal block provides an easy and effective way to manage wire connections in your devices.
