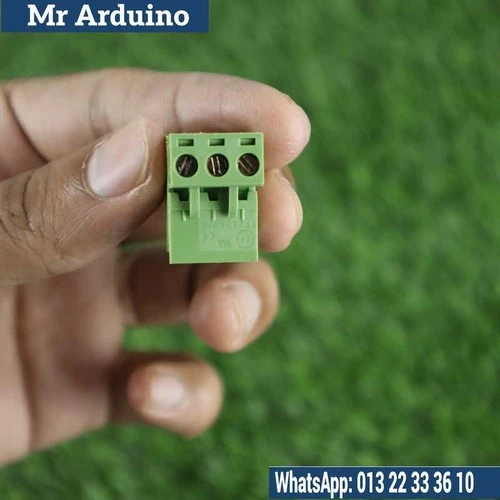

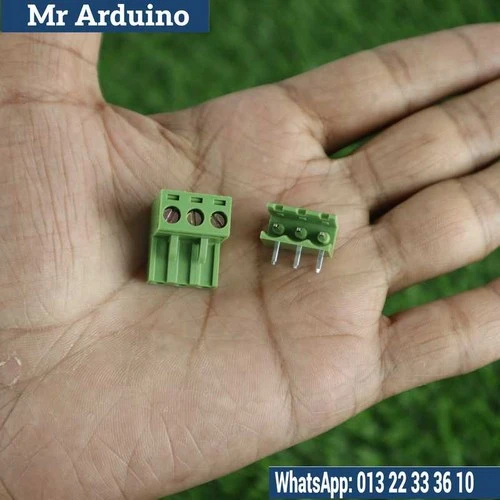

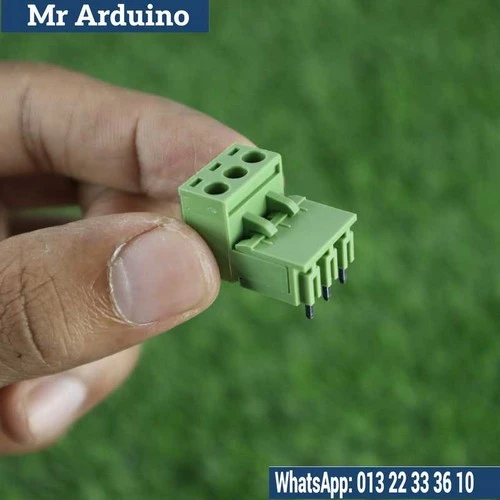

The Right Angle Green Color Male to Female Series Terminal Block is a 3-pin connector designed for easy, secure, and reliable wire connections between a male and female terminal, often used in electronic circuits and projects. With a 5.08mm pitch between the pins, this terminal block is widely used in a variety of electronic and electrical applications. Its right-angle design makes it ideal for use in applications where space is limited and allows for better orientation and integration into printed circuit boards (PCBs).

The green color is standard for this type of terminal block, and it helps easily identify it for general-purpose electrical connections. This connector features screw-type terminals that allow for secure and tight connections, suitable for solid or stranded wires, and is typically used in low to medium-power applications such as power supplies, LED lighting, motors, sensors, and control circuits.

How It Works: The Right Angle Green Color Male to Female Terminal Block works by providing a connection point between a male pin (on the PCB or cable) and a female socket (on the connecting cable or circuit). Here's how it operates:

1. Wire Insertion: Stripped wire ends are inserted into the female side of the terminal block.
2. Screwing Mechanism: The screws on the female connector are tightened to secure the wire in place, ensuring a solid connection.
3. Male Pin Soldering: The male side of the terminal block is usually soldered onto the PCB for through-hole mounting, providing a stable and secure electrical connection.
4. Connection Establishment: Once the male pin and female connector are properly connected, the electrical signal or power can pass through, completing the circuit.

The right-angle configuration allows the module to be mounted on the PCB at a 90-degree angle, providing flexibility in managing space and wire routing within a device or system.

Key Features:

• Right Angle Design: Ideal for space-saving applications and allows for better management of wiring in tight spaces or dense PCBs.
• 3 Pin Configuration: Supports a 3-pin connection, which is typically used for power (V+), ground (V-), and signal connections in electronic circuits.
• 5.08mm Pin Pitch: The 5.08mm pin pitch makes this terminal block compatible with many standard components, offering ease of integration into various designs.
• Male to Female Connection: The male pin is designed to be soldered into a PCB, while the female connector is used for wire termination, allowing for easy plug-and-play connections.
• Green Color: The green color helps standardize the component for general-purpose electrical connections and makes it easy to identify in a panel or enclosure.
• Screw-Type Terminals: Screw-type terminals provide a secure connection for both solid and stranded wires, ensuring reliable and tight connections, ideal for preventing loose connections and signal interruptions.
• Durable and Reliable: Constructed from flame-retardant plastic and metal contacts for high durability, the terminal block offers long-lasting performance in various environments.
• Easy Installation: This terminal block is designed for through-hole mounting, allowing for easy installation on PCBs.

Specifications:

• Pin Configuration: 3 Pins (typically for power, ground, and signal).
• Pin Pitch: 5.08mm (standard pitch for many electronic components).
• Mounting Type: Through-hole for secure mounting on a PCB.
• Wire Range: Typically compatible with wire sizes ranging from 0.5mm² to 2.5mm².
• Max Voltage Rating: Rated for up to 300V, making it suitable for low to medium-voltage applications.
• Max Current Rating: Typically rated for 10A, ideal for small to medium-power devices.
• Material: Plastic housing (usually flame-retardant material like PA66) and metal terminals (commonly brass or copper).
• Operating Temperature Range: Typically operates within -20°C to 85°C.
• Dimensions: Compact size, typically around 18mm x 13mm x 11mm (varies by manufacturer).
• Color: Green for easy identification and compatibility with general-purpose electrical applications.
• Secure Wire Termination: Features screw terminals that provide a strong mechanical grip on both solid and stranded wires.

Applications:

• Home Appliances: Used in small appliances like fans, lights, and power supplies where space is limited and a secure connection is required.
• Industrial Equipment: Perfect for use in industrial control systems, automation projects, and motor controllers where 3-pin connections are common.
• DIY Electronics Projects: Ideal for Arduino, Raspberry Pi, or robotics projects requiring secure and simple connections between a PCB and external wires.
• Power Distribution: Used in power distribution systems, LED drivers, and lighting systems where low to medium current and voltage connections are needed.
• Control Circuits: Perfect for integration in sensor circuits, switching circuits, and other control systems.
• Prototyping and Test Equipment: Frequently used in prototyping boards and test fixtures for easy reconfiguration of connections.
• Automotive Electronics: Can be used in automotive electrical systems, telecommunication equipment, and audio systems to manage power and signal connections.

Limitations:

• Current Limitation: The terminal block is rated for up to 10A, making it unsuitable for high-power applications that require higher current handling.
• Voltage Limitation: Rated for a maximum voltage of 300V, which limits its use in high-voltage circuits beyond this rating.
• Pin Count Restriction: The terminal block has a 3-pin configuration and cannot be used for circuits requiring more or fewer connections.
• DC Applications: While it can work for DC circuits, it's primarily designed for low-voltage AC and DC applications, making it unsuitable for high-voltage or power-intensive circuits.
• Soldering Requirement: The male side of the connector requires soldering to the PCB, making it unsuitable for surface-mount applications.

The Right Angle Green Color Male to Female Series Terminal Block 5.08mm 3 Pin is a versatile and reliable component for making secure, space-efficient wire connections in low to medium-power applications. Its right-angle design, screw-terminal connections, and 3-pin configuration make it an excellent choice for use in a wide range of applications, from home appliances and DIY electronics projects to industrial control systems and power distribution circuits. Whether you're working with microcontroller projects, lighting systems, or sensor circuits, this terminal block provides a durable and easy-to-use solution for your wiring needs.
