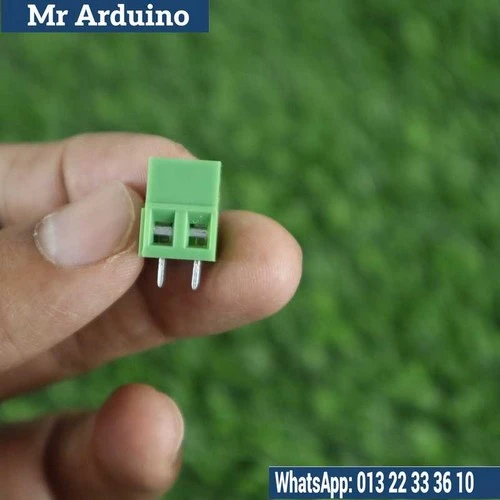

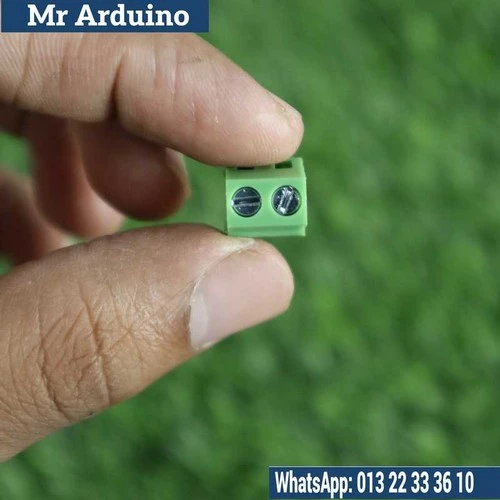

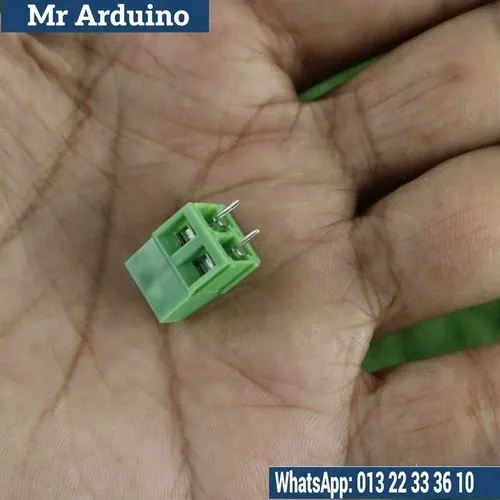

The 2 Pin Green Connector PCB Terminal Block is a versatile and compact connector used for making secure electrical connections between printed circuit boards (PCBs) and external wiring. This terminal block features two pins, which are typically used for simple power or signal connections. Its green color is commonly used for general-purpose electrical connections, making it easy to identify in a circuit. The screw-type terminal design allows for easy insertion and securing of solid or stranded wires, providing reliable and durable connections for a wide range of electronic devices and systems.

This connector is primarily used in low to medium power applications and is ideal for integrating into circuits that require basic ON/OFF switching or power distribution, such as power supplies, lighting systems, and DIY electronics projects.

How It Works: The 2 Pin Green Connector PCB Terminal Block operates by providing a simple and effective means of connecting two wires to a PCB. Here's how it works:

1. Wire Insertion: Stripped wire ends are inserted into the terminals of the connector.
2. Screw Tightening: Once the wires are inserted, the screws are tightened to secure the wire in place. This ensures that the wire is firmly connected and will not come loose.
3. Mounting on PCB: The male pins on the terminal block are soldered onto the PCB, allowing the terminal block to connect external wiring to the internal circuitry.
4. Connection Completion: Once secured, the terminal block establishes an electrical path between the wires and the PCB, allowing the flow of power or signals as needed.

The screw terminals ensure that the wires are firmly held in place, preventing loose connections that could lead to device malfunctions or safety hazards.

Key Features:

• 2 Pin Configuration: Provides 2-pin connections, typically used for power (V+) and ground (V-) or signal connections in basic circuits.
• Screw Terminals: The screw terminal design ensures a reliable and secure connection for both solid and stranded wires, making it ideal for circuits that require durable connections.
• Compact and Space-Saving: The small form factor of the terminal block allows it to be used in space-constrained applications, such as small electronics, appliances, or prototyping projects.
• Green Color: The green color helps to identify it as a standard terminal block for general-purpose applications, commonly found in consumer and industrial electronics.
• Durable Construction: Made with flame-retardant plastic housing and metal contacts to ensure long-lasting performance and safe use in various environments.
• Easy Installation: The through-hole mounting design allows for straightforward soldering onto PCBs, providing a stable and permanent connection to the circuit.

Specifications:

• Pin Configuration: 2 Pins (typically for power or signal connections).
• Pin Pitch: 5mm (standard for many terminal block connectors).
• Mounting Type: Through-hole mounting for secure integration into PCBs.
• Wire Range: Accommodates 0.5mm² to 2.5mm² wire sizes.
• Max Voltage Rating: Typically rated for 300V, suitable for low to medium-voltage applications.
• Max Current Rating: Rated for up to 10A, making it ideal for small-to-medium current circuits.
• Material: Flame-retardant plastic housing (typically PA66) and metal contacts (usually brass or copper).
• Operating Temperature Range: -20°C to 85°C, making it suitable for most indoor and outdoor environments.
• Dimensions: Typically around 15mm x 8mm x 10mm, compact and suitable for use in smaller devices.
• Color: Green, which is standard for general-purpose terminal blocks.
• Indication: Often includes a clear marking to distinguish the input and output connections.

Applications:

• Power Distribution: Can be used for simple power input connections in devices such as power supplies, LED lights, and small appliances.
• DIY Electronics: Perfect for Arduino projects, Raspberry Pi circuits, sensor circuits, and other electronics prototyping that require reliable connections.
• Industrial Equipment: Used in control panels, sensors, and automation systems where low-current and low-voltage wiring is needed.
• Lighting Systems: Ideal for wiring LED strips, light controllers, or lighting modules where a simple 2-pin connection is required.
• Home Appliances: Commonly found in small household appliances, fans, heating systems, and other consumer electronics.
• Audio Equipment: Used in audio systems for power or signal connections, as well as amplifiers and speakers.
• Prototyping and Test Equipment: Often used in test fixtures or prototyping boards for creating easy connections during development and testing.

Limitations:

• Current Limitation: The terminal block is rated for up to 10A, making it unsuitable for high-current applications that require larger, more robust connectors.
• Voltage Limitation: With a 300V maximum voltage rating, it is not suitable for use in high-voltage circuits.
• Pin Count Restriction: This terminal block is designed with only 2 pins, which may not be suitable for more complex circuits requiring additional connections.
• Soldering Required: This terminal block needs to be soldered onto a PCB, so it is not suitable for surface-mount applications or quick-connect wiring solutions.
• Limited to Low Power Applications: Primarily used for low to medium power devices, it is not intended for use in high-power systems.

The 2 Pin Green Connector PCB Terminal Block is a reliable, easy-to-use component that provides secure and simple connections for a wide range of low to medium-power applications. Its screw terminal design ensures strong connections, and its compact size makes it ideal for tight spaces. Whether you're working on DIY electronics projects, home appliances, or industrial control systems, this terminal block offers an efficient and durable solution for connecting wires to PCBs and external circuits.
