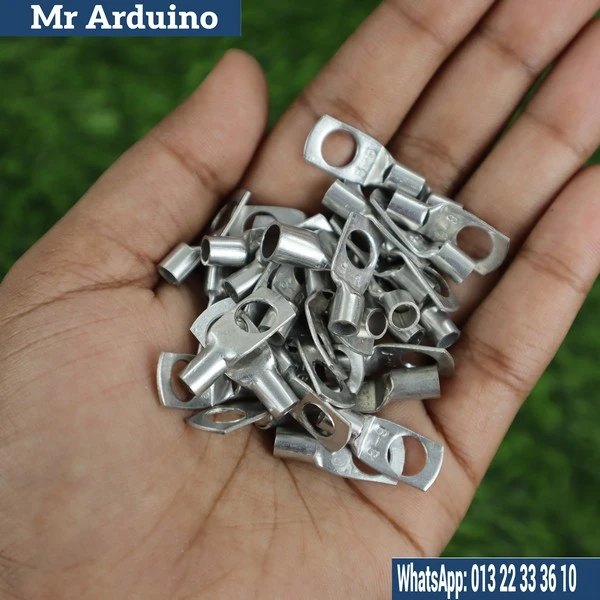

The Stud Size Cable Lug Non-Insulated 6-6 Pair is a set of high-quality, non-insulated cable lugs designed for securing electrical cables to equipment, terminals, and other electrical components. These lugs are perfect for use in industrial, automotive, and electrical applications where a secure and reliable connection is required. The 6-6 size indicates that these lugs are designed to accommodate 6 AWG cables and are intended for 6mm stud connections.

Made from durable copper or copper-alloy material, these cable lugs offer excellent conductivity and strength, ensuring a tight and secure connection that minimizes the risk of electrical resistance, heat buildup, and potential failures. The non-insulated design makes them ideal for applications where insulation is not required or is handled separately.

How It Works:

The Stud Size Cable Lug Non-Insulated 6-6 Pair works by providing a sturdy connection between a cable and a stud or terminal. Here's how to use it:

1. Step 1: Strip the insulation from the cable end to expose the copper conductor.

2. Step 2: Insert the exposed copper wire into the barrel (the open end) of the cable lug.

3. Step 3: Use a crimping tool to tightly secure the cable to the lug. The crimp ensures a solid connection and prevents the wire from slipping out.

4. Step 4: Once the wire is securely crimped, the 6mm hole on the lug can be attached to a 6mm stud or bolt, depending on your application. The lug is secured to the stud using a bolt or screw, ensuring a reliable electrical connection.

Product Limitations:

• Size Compatibility: These lugs are designed for 6 AWG cables and 6mm stud connections. They may not be suitable for smaller or larger cables or stud sizes. Ensure the lug size matches your cable and stud specifications.

• Non-Insulated: As these lugs are non-insulated, they do not provide protection against electrical shock or short circuits. Additional insulation or protective measures may be needed, especially in environments where accidental contact could pose a safety hazard.

• Current Capacity: The lugs are ideal for medium current applications. If you are working with high-current or high-voltage systems, ensure that the lugs are rated appropriately for the application or consider using lugs with higher current ratings.

• Corrosion Resistance: The copper or copper-alloy material is corrosion-resistant but may degrade over time if exposed to harsh outdoor conditions or moisture. For long-term outdoor use, consider using lugs with additional protective coatings.

The Stud Size Cable Lug Non-Insulated 6-6 Pair offers a reliable and efficient solution for connecting cables to terminals and studs in various electrical setups, providing strength and conductivity for medium-duty applications.
