16 Channel 12-bit PWM Servo Driver

1 Orders 0 Wish listed

৳500

Qty

Total price:

৳500

Overview
Reviews

Detail Description

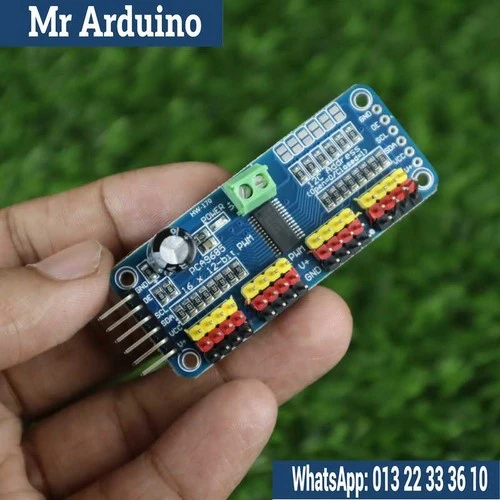

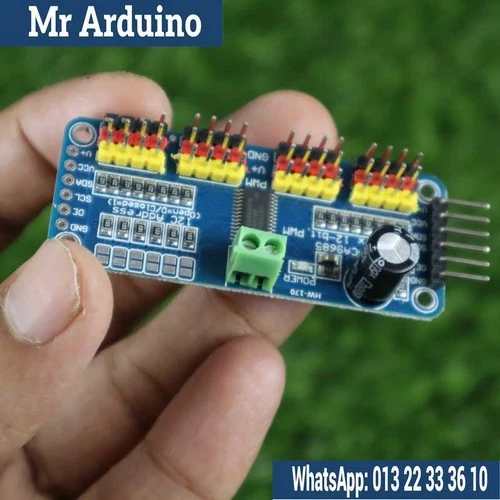

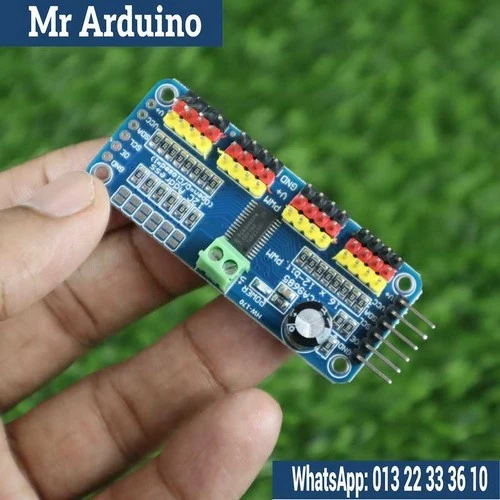

The 16 Channel 12-bit PWM/Servo Driver, based on the PCA9685 chip, is an I2C-controlled PWM driver with a built-in clock. This module is ideal for applications requiring multiple servo or LED control, such as robotics, home automation, and lighting systems.

Key Features:

16 Fully Programmable PWM Outputs: Each channel has a 12-bit resolution for fine control over duty cycles, allowing precise adjustments from 0 to 4096.
I2C Interface: Communicates using I2C, making it compatible with many microcontrollers, including Arduino and Raspberry Pi.
Built-in Clock: Eliminates the need for continuous signals from the microcontroller. It can be programmed from 24Hz to 1526Hz.
5V Compliant: Can be controlled by 3.3V logic while safely driving up to 6V outputs.
Chainable: Multiple drivers can be connected together to control even more servos or LEDs.
Convenient Power Management: Includes a separate power supply for servos (up to 6V).

Applications:

Robotics: Control multiple servos for robotic arms, legs, and other moving parts.
LED Lighting: Create intricate lighting patterns and effects.
Home Automation: Manage various automated systems with precise control.

Specifications:

Input Voltage: 2.3V to 5.5V logic level
PWM Frequency: Adjustable from 24Hz to 1526Hz
Output Drive: 25mA sink/source per output
Communication: Standard I2C interface, with address selectable via jumpers

This versatile driver simplifies the process of managing multiple PWM signals, making it an essential component for various DIY electronics and professional projects.
