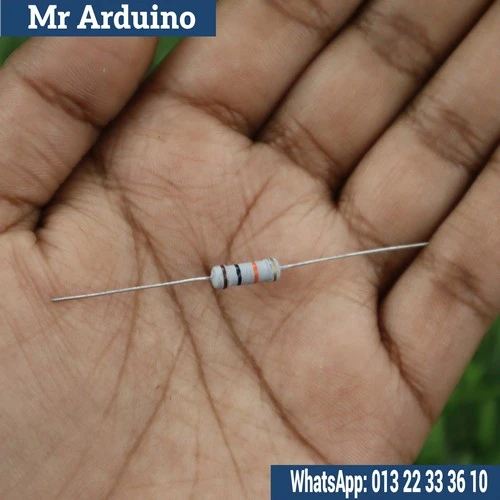

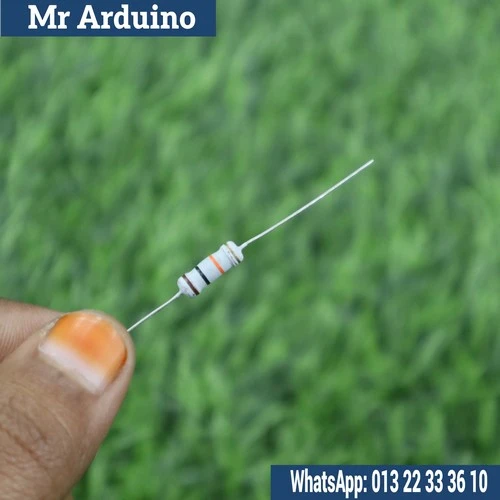

The 10K Ohm 1 Watt Resistor is a high-performance resistor designed for use in electronic circuits where resistance is needed to limit or control current flow. With a resistance value of 10,000 ohms (10K) and a power rating of 1 watt, this resistor is suitable for both low and medium-power applications. It is ideal for use in projects involving voltage regulation, signal filtering, current limiting, and load balancing.

The 1-watt power rating means this resistor can safely dissipate up to 1 watt of power without overheating, making it ideal for circuits that draw moderate amounts of current. The 10K ohm resistance value is commonly used in biasing applications, voltage dividers, and filter circuits in audio equipment, signal processing, and general electronics.

Key Features:

• Resistance Value: 10,000 ohms (10K), which is a commonly used value in many electronics circuits, particularly for voltage dividers, current limiting, and filtering applications.
• Power Rating: 1 Watt, meaning it can safely dissipate up to 1 watt of power without significant temperature rise or damage. Suitable for medium-power applications.
• Tolerance: Typically available with a tolerance of ±5% or ±1%, which specifies how much the actual resistance can vary from the nominal value. Lower tolerance (±1%) provides more precision for sensitive circuits.
• Construction: Made from carbon film or metal oxide, depending on the manufacturer, which ensures durability, heat resistance, and long-term stability in electronic applications.
• Standard Size: The 10K 1-Watt Resistor is typically larger than lower wattage resistors, allowing for better heat dissipation and handling of higher currents.

How It Works: A resistor functions by limiting the flow of electric current in a circuit. The 10K ohm 1-watt resistor works by creating resistance to the flow of current, causing a voltage drop according to Ohm’s Law, which is V = IR (Voltage = Current x Resistance).

• Voltage Drop: When current flows through this resistor, it causes a voltage drop across the resistor, proportional to the current. The amount of current that flows is determined by the resistance value and the voltage applied to the circuit.

• Power Dissipation: The resistor dissipates energy in the form of heat. Since this resistor has a 1-watt power rating, it can safely dissipate up to 1 watt of heat without failure. If more than 1 watt of power is dissipated, the resistor may overheat and fail.

• Current Limiting: In circuits where overcurrent protection is needed, this resistor limits the amount of current that can pass through, ensuring the safety of sensitive components.

Applications:

• Voltage Dividers: This resistor is often used in voltage divider circuits to split the input voltage into lower values, such as for sensor readings, analog inputs, or biasing applications.
• Biasing Circuits: The 10K ohm resistor is widely used in biasing transistors in amplifiers and oscillators to set the operating point of active components.
• Current Limiting: It can be used to limit the current in circuits, protecting LEDs, diodes, and other sensitive components from excessive current.
• Signal Processing: This resistor is suitable for use in filtering circuits, RC filters, and audio equipment where resistance is necessary to shape signal frequency responses.
• Pull-up/Pull-down Resistors: In digital circuits, the 10K resistor is often used as a pull-up or pull-down resistor to ensure logic level stability when an input pin is left unconnected.
• Power Supplies: It can also be used in power supply circuits for current regulation or to help stabilize voltage levels.

Limitations:

• Power Rating: While the 1-watt power rating is suitable for many medium-power circuits, it is not ideal for circuits that require higher power dissipation, such as high-power amplifiers or high-current devices. Using this resistor in high-power applications can lead to overheating or damage.
• Tolerance: The typical 5% tolerance can lead to slight variations in the resistor’s actual resistance value, which may be critical in highly precise applications.
• Temperature Sensitivity: Like all resistors, the 10K 1-Watt Resistor can be affected by temperature. Excessive heat can cause the resistor to lose its resistance value or even burn out if the power dissipation exceeds its rating.

The 10K Ohm 1 Watt Resistor is a versatile and reliable component for a variety of electronic circuits. It provides effective current limiting, voltage regulation, and signal filtering, making it ideal for both hobbyists and professional electronics projects. With its 1-watt power rating, this resistor can handle moderate power levels while ensuring stability and reliability in a wide range of applications.
