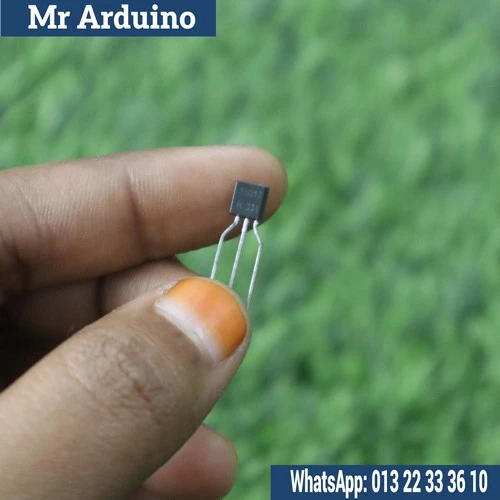

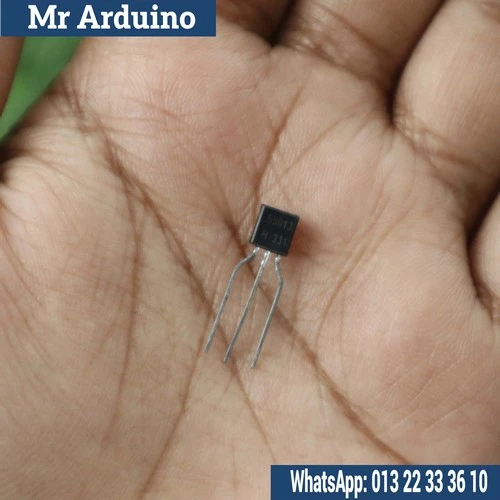

2N9013

(0) 0 Reviews 2 Orders 0 Wish listed

৳3

Quantity :

Total price :

(Tax : )

Overview
Reviews

The 2N9013 is an NPN epitaxial silicon transistor renowned for its versatility in electronic applications. Manufactured by various companies, including Fairchild Semiconductor, it is commonly used in signal amplification and switching circuits.

Key Specifications:

Maximum Collector-Emitter Voltage (V_CE): 20 V
Maximum Collector-Base Voltage (V_CB): 40 V
Maximum Emitter-Base Voltage (V_EB): 5 V
Maximum Collector Current (I_C): 500 mA
Maximum Collector Power Dissipation (P_C): 625 mW
Package Type: TO-92

These specifications make the 2N9013 suitable for low to medium power applications, including audio amplification and signal processing.

Applications:

Signal Amplification: Ideal for audio and RF signal amplification due to its frequency response and gain characteristics.
Switching Circuits: Utilized in digital logic circuits and switching applications where moderate current handling is required.
Oscillators: Employed in oscillator circuits for generating clock signals in various electronic devices.

Comparison with 2N3904:

The 2N9013 offers a higher maximum collector current (500 mA) compared to the 2N3904 (200 mA), making it more suitable for applications requiring higher current handling. However, the 2N3904 has a higher gain-bandwidth product (300 MHz), which may be advantageous in high-frequency applications.
