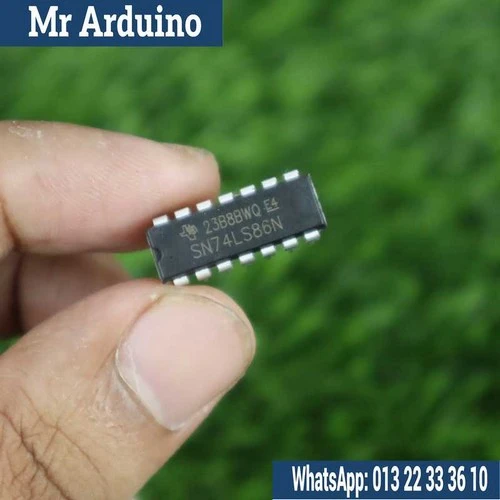

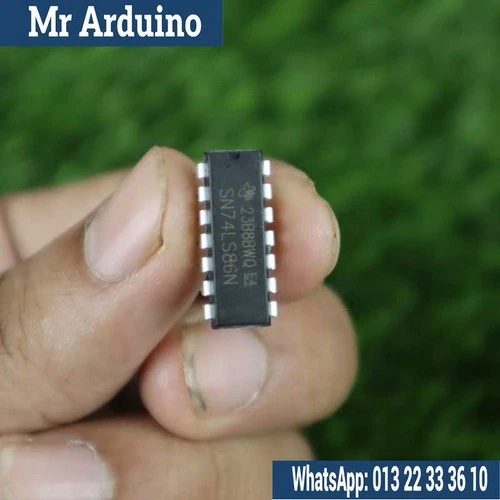

The 7486 XOR Gate Logic IC, also known as the SN74LS86N, is a quad 2-input XOR (exclusive OR) gate IC. It contains four independent XOR gates, each capable of performing a logical XOR operation between two binary inputs. The XOR gate outputs a high (1) when an odd number of inputs are high (i.e., one or both of the inputs are 1). This logic gate is widely used in digital circuits for tasks such as arithmetic operations, error detection, and parity checking. The IC is part of the LS (Low Power Schottky) family, known for fast switching speeds and low power consumption.

Features:

• Quad 2-Input XOR Gate: Contains four individual XOR gates, each with two inputs and one output, all in a single IC package.
• LS Logic Family: Based on the Low Power Schottky (LS) logic family, offering faster response times and lower power consumption compared to traditional logic gates.
• Standard IC Package: Available in a standard 14-pin Dual In-line Package (DIP) or surface-mount options, making it easy to integrate into both prototype and production-level circuit boards.
• High-Speed Performance: Features fast propagation delay times, making it suitable for high-speed digital applications.
• Reliable and Durable: Designed for stable and long-lasting performance in a variety of electronic circuits.

How it Works:
An XOR gate (exclusive OR) outputs a high logic level (1) when the number of high inputs (1s) is odd. For a 2-input XOR gate:

• Input A = 0, Input B = 0 → Output = 0
• Input A = 0, Input B = 1 → Output = 1
• Input A = 1, Input B = 0 → Output = 1
• Input A = 1, Input B = 1 → Output = 0

This logical behavior is represented by the truth table of the XOR gate, and it can be used in various combinations to perform operations such as binary addition (half adders), data manipulation, and in digital systems for checking even or odd parity.

Applications:

• Digital Arithmetic Circuits: Used in binary adders (such as half adders or full adders), where the XOR gate helps calculate the sum of two bits.
• Parity Checkers: XOR gates are used in error detection schemes, like parity bit generation and checking, to ensure data integrity.
• Data Encryption: XOR gates are widely used in encryption algorithms, particularly in XOR-based ciphers for manipulating data in cryptographic systems.
• Control Logic: Useful for building complex logic circuits where decisions depend on whether an odd or even number of conditions are met.
• Signal Processing: Used in circuits for performing logical operations on digital signals, such as in multiplexers, demultiplexers, and error correction systems.
• Digital Communication: Integrated into communication systems for parity checking and in systems requiring logical manipulation of signals.

Limitations:

• Limited Number of Inputs: Each gate only has two inputs, meaning it’s not suitable for handling multiple inputs without combining multiple gates.
• Speed Limitations for Complex Circuits: While the LS series is fast, high-frequency applications might require advanced logic families for optimal performance in some cases.
• Power Consumption: While lower than standard logic gates, the LS series still consumes more power than more modern CMOS-based logic families, which can be an issue in ultra-low-power designs.

The 7486 XOR Gate Logic IC (SN74LS86N) is a robust, reliable, and easy-to-use IC for implementing XOR operations in digital circuits. Whether you are building arithmetic circuits, error detection systems, or working on more complex logic design tasks, this IC provides a solid solution with high-speed, low-power consumption and versatile functionality.
