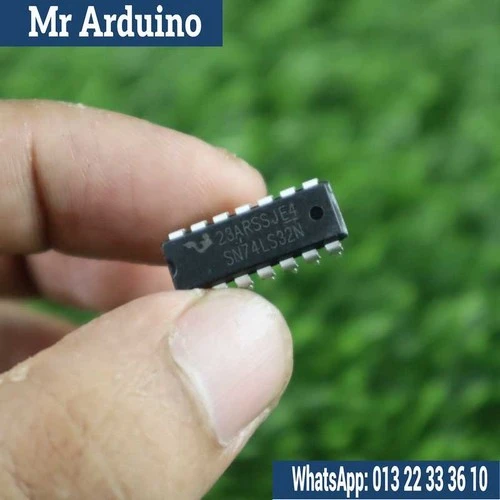

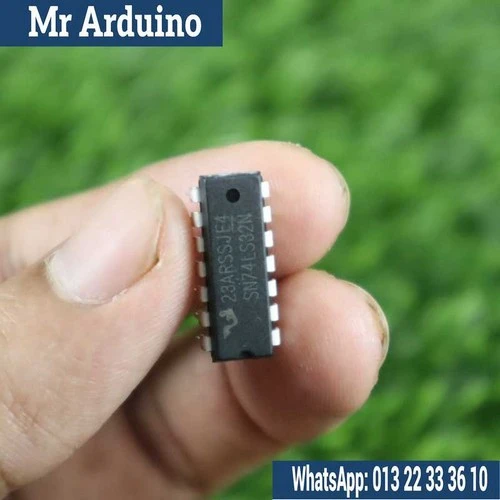

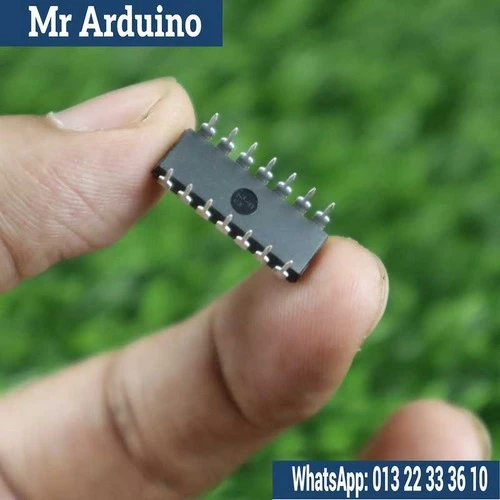

The SN74LS32N is a quad 2-input OR gate logic integrated circuit (IC) from the 74LS series. This series is known for its low power Schottky TTL (Transistor-Transistor Logic) technology. Here are the key details and characteristics of the SN74LS32N IC:

Key Specifications

1. Logic Family: 74LS (Low Power Schottky TTL)
2. Function: Quad 2-Input OR Gate
3. Package: 14-pin Dual Inline Package (DIP)
4. Operating Voltage: Typically 5V (4.75V to 5.25V)
5. Input Voltage:
   • Low-Level Input Voltage (V_IL): Max 0.8V
   • High-Level Input Voltage (V_IH): Min 2V
6. Output Voltage:
   • Low-Level Output Voltage (V_OL): Max 0.4V
   • High-Level Output Voltage (V_OH): Min 2.7V
7. Input Current: Typically a few microamperes (uA)
8. Output Current:
   • Low-Level Output Current (I_OL): 8mA
   • High-Level Output Current (I_OH): -0.4mA
9. Propagation Delay: Typically 9ns
10. Power Consumption: Low power due to Schottky technology

Functional Description

The SN74LS32N consists of four independent 2-input OR gates. Each gate performs the logical OR operation, meaning the output is high (1) if at least one of the inputs is high (1).

Pin Configuration

1. Pin 1: Input A1 (Gate 1)
2. Pin 2: Input B1 (Gate 1)
3. Pin 3: Output Y1 (Gate 1)
4. Pin 4: Input A2 (Gate 2)
5. Pin 5: Input B2 (Gate 2)
6. Pin 6: Output Y2 (Gate 2)
7. Pin 7: GND (Ground)
8. Pin 8: Output Y3 (Gate 3)
9. Pin 9: Input B3 (Gate 3)
10. Pin 10: Input A3 (Gate 3)
11. Pin 11: Output Y4 (Gate 4)
12. Pin 12: Input B4 (Gate 4)
13. Pin 13: Input A4 (Gate 4)
14. Pin 14: Vcc (Positive Power Supply)

Logic Diagram

For each gate:

• Inputs: A and B
• Output: Y = A + B (Logical OR operation)

Truth Table

For each of the four OR gates:

Applications

The SN74LS32N is used in various digital circuits for performing logical OR operations. Some common applications include:

• Data Routing: Combining multiple data lines into a single line.
• Signal Control: Logic control in digital systems where an OR operation is needed.
• Timing Circuits: Combining timing signals.
• Control Systems: Used in combination with other logic gates for complex control logic.

Features

• Low Power Consumption: Due to Schottky TTL technology.
• Fast Switching: With a typical propagation delay of 9ns.
• Ease of Use: Standard pin configuration and robust design.

The SN74LS32N is a fundamental building block in digital electronics, useful for both educational purposes and practical circuit designs due to its simplicity and reliability.
