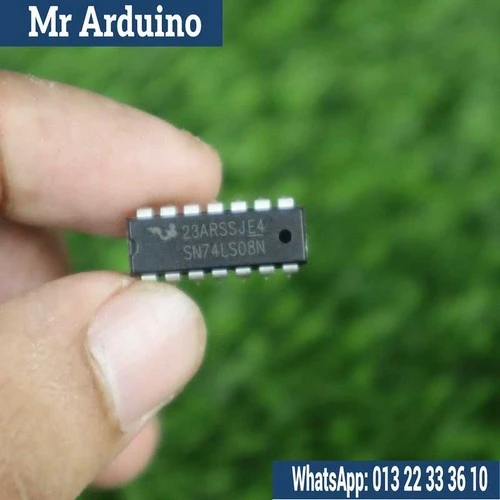

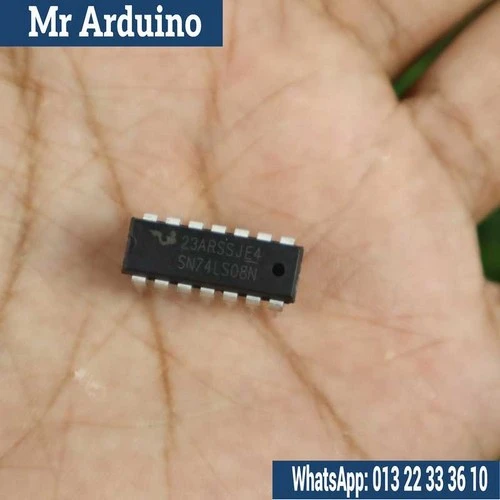

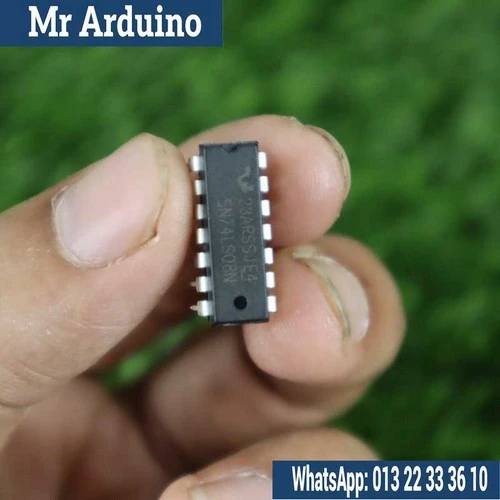

7408 AND Gate Logic IC | SN74LS08N logic IC

8 Orders 0 Wish listed

৳30

Qty

Total price:

৳30

Overview
Reviews

Detail Description

The SN74LS08N contains four independent 2-input AND gates. Each gate performs the logical AND operation, meaning the output is high (1) only if both inputs are high (1).

Pin Configuration

Pin 1: Input A1 (Gate 1)
Pin 2: Input B1 (Gate 1)
Pin 3: Output Y1 (Gate 1)
Pin 4: Input A2 (Gate 2)
Pin 5: Input B2 (Gate 2)
Pin 6: Output Y2 (Gate 2)
Pin 7: GND (Ground)
Pin 8: Output Y3 (Gate 3)
Pin 9: Input B3 (Gate 3)
Pin 10: Input A3 (Gate 3)
Pin 11: Output Y4 (Gate 4)
Pin 12: Input B4 (Gate 4)
Pin 13: Input A4 (Gate 4)
Pin 14: Vcc (Positive Power Supply)

Logic Diagram

For each gate:

Inputs: A and B
Output: Y = A * B (Logical AND operation)

Truth Table

For each of the four AND gates:

Input A	Input B	Output Y
0	0	0
0	1	0
1	0	0
1	1	1

Applications

The SN74LS08N is used in various digital circuits for performing logical AND operations. Some common applications include:

Data Selection: Implementing logic in data routing and multiplexing.
Signal Control: Logic control in digital systems where an AND operation is needed.
Timing Circuits: Combining timing signals to control circuit operations.
Control Systems: Used in combination with other logic gates for complex control logic.

Features

Low Power Consumption: Due to Schottky TTL technology.
Fast Switching: With a typical propagation delay of 9ns.
Ease of Use: Standard pin configuration and robust design.

The SN74LS08N is a fundamental building block in digital electronics, useful for both educational purposes and practical circuit designs due to its simplicity and reliability.
