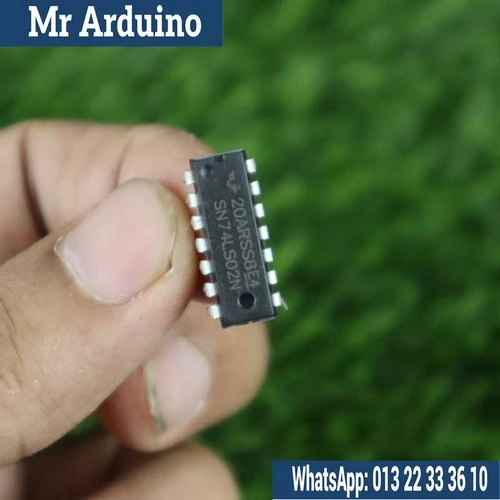

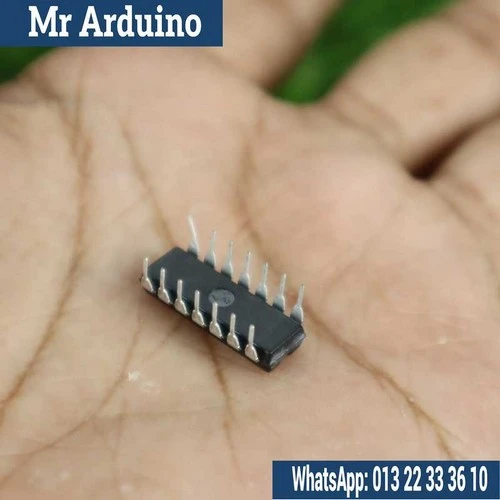

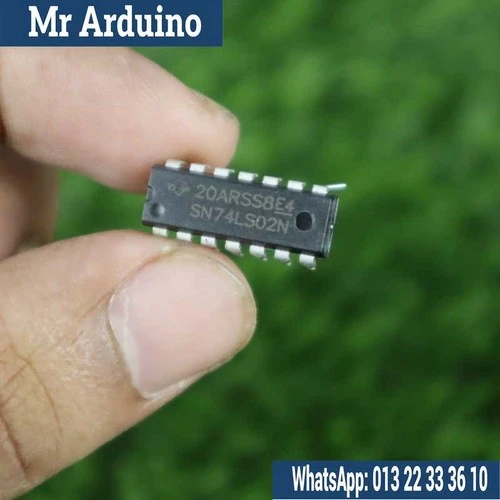

The 7402 NOR Gate Logic IC (also known by the part number SN74LS02N) is a popular integrated circuit used in digital electronics. It contains four independent 2-input NOR gates, which are essential building blocks in digital logic circuits. NOR gates output a LOW signal (0) only when both of their inputs are LOW; otherwise, they output a HIGH signal (1). The 7402 IC is often used for performing logical operations in a variety of applications such as digital systems, signal processing, and combinational logic design.

How It Works:

1. Input Logic: The IC has four 2-input NOR gates. A NOR gate produces a high output (1) only when both of its inputs are low (0). If either or both inputs are high, the output will be low (0).

   The logic equation for a 2-input NOR gate is:

   $$\text{Output} = \overline{A + B}$$

   Where $A$ and $B$ are the inputs and the symbol $\overline{A + B}$ represents the NOR operation (NOT of the OR).

2. Circuit Operation: Each of the four NOR gates in the IC can be connected to different parts of a digital circuit. The gates can be used to create more complex logic functions or to simplify circuits in tasks such as signal inversion, logic negation, and creating other logic gates (e.g., NAND, XOR) through combinations.

3. Logic Implementation: In most applications, the IC is used to build combinational logic circuits or as part of more complex digital systems, such as flip-flops, counters, and control systems. Its role in these circuits is to perform logical operations based on inputs and produce corresponding outputs.

Features:

• Four Independent NOR Gates: The 7402 IC includes four separate 2-input NOR gates, making it highly versatile for designing digital logic circuits.
• Standard Logic IC: As a part of the LS (Low Power Schottky) series, it offers fast switching times and low power consumption, making it ideal for high-speed digital applications.
• Wide Operating Voltage: Typically operates with a supply voltage range of 4.5V to 5.5V, making it compatible with a wide range of systems.
• Compact Form Factor: Available in an 14-pin Dual Inline Package (DIP), this IC is easy to integrate into breadboards or PCBs, and is commonly used for prototyping.
• Reliable Performance: The 7402 NOR gate IC is built for reliability in digital circuits and is commonly used in educational environments, prototype development, and commercial electronics.

Applications:

• Combinational Logic Circuits: Used in logic design and optimization, such as implementing control logic, arithmetic circuits, and decision-making functions.
• Signal Processing: The NOR gates can be used to invert or process signals in digital systems.
• Counter and Timer Circuits: By combining NOR gates with other logic elements, you can design counters and timers for digital applications.
• Microcontroller Interfacing: Often used in conjunction with microcontrollers to perform various logical operations, including switching and control.
• Memory Storage: Used in circuits that involve data storage and retrieval, such as in flip-flops or latch circuits.

Limitations:

• Limited Number of Gates: The IC only contains four 2-input gates. For larger-scale logic operations, multiple ICs or gates might be required.
• Requires External Components: Depending on the application, additional components like resistors or capacitors may be necessary for proper operation.
• Voltage and Temperature Sensitivity: As with most ICs, the device should not exceed its maximum voltage ratings or operating temperature range to avoid damage.

The 7402 NOR Gate Logic IC (SN74LS02N) is an essential component for digital circuit designers and engineers, offering a reliable and efficient way to implement NOR logic functions in a wide variety of electronic applications.
