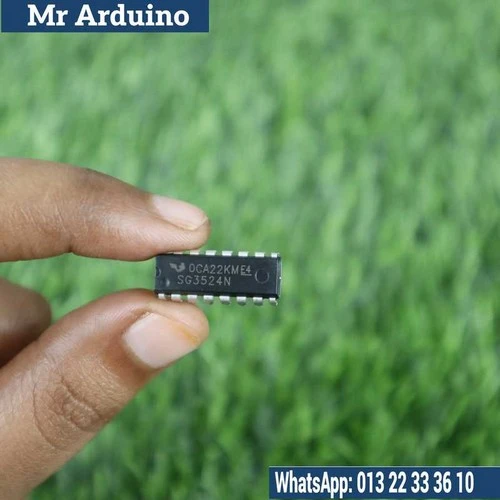

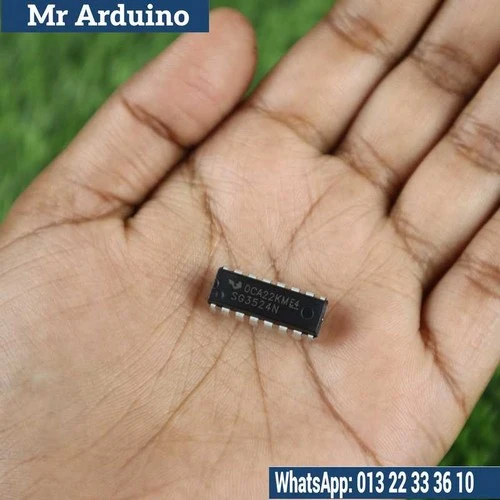

SG3524 Regulating Pulse Width Modulator IC

1 Orders 0 Wish listed

৳35

Qty

Total price:

৳35

Overview
Reviews

Detail Description

The SG3524 is a regulating Pulse Width Modulator (PWM) IC widely used in switch-mode power supplies (SMPS), DC-DC converters, inverters, and power control applications. It integrates all the necessary functions required for PWM-based regulation, including an oscillator, error amplifier, reference voltage, and output control stages.

This IC is designed to provide precise control over output voltage and current by adjusting the duty cycle of the PWM signal. Due to its reliability, flexibility, and stable operation, the SG3524 is commonly used in industrial power electronics, UPS systems, battery chargers, and DIY power supply projects.

Key Features:

• IC Type: Pulse Width Modulator (PWM) controller IC.

• Built-in Oscillator: Sets switching frequency using external components.

• Error Amplifier: Enables accurate voltage regulation.

• Reference Voltage: Provides stable internal reference.

• Dual Output: Suitable for push-pull and forward converter designs.

How it Works:

1. Oscillation: Internal oscillator generates a timing signal.

2. Error Detection: Error amplifier compares feedback with reference voltage.

3. PWM Control: Duty cycle is adjusted based on error signal.

4. Output Drive: Generates PWM outputs to drive external switching devices.

Applications:

• Switch-mode power supplies (SMPS)

• DC-DC converters

• Inverter and UPS systems

• Battery chargers and regulators

• Educational and DIY power electronics projects
